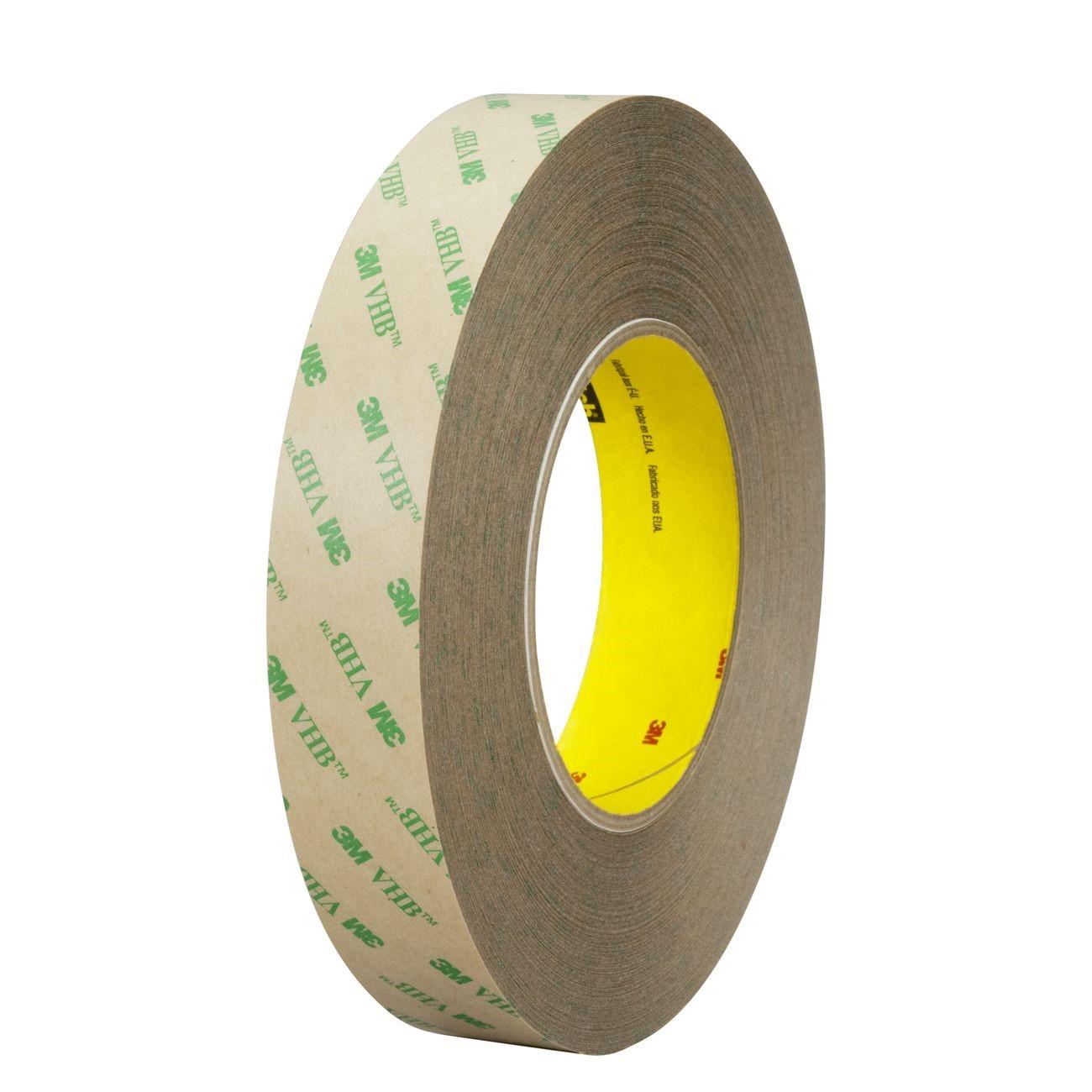

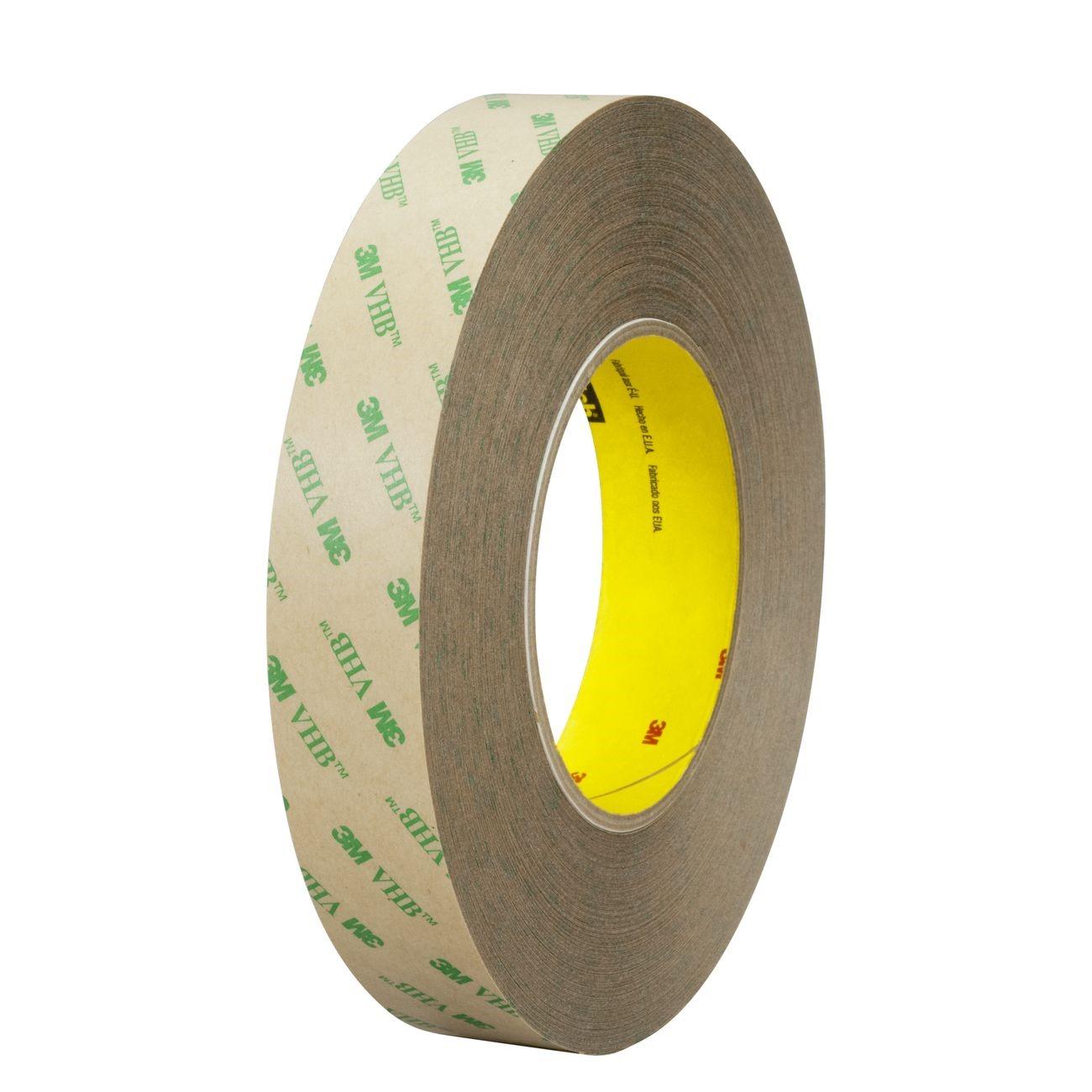

3M 7010374040 Vhb F9469PC Adhesive Transfer Tape 1.5 in

Product Description

The 3M 7010374040 is a VHB F9469PC adhesive transfer tape designed for high-strength bonding across a broad range of industrial and trade applications. At 5.0 mil thick, this transparent, double-sided transfer tape uses 3M High Performance Acrylic Adhesive 100MP to deliver a durable, long-lasting bond without the bulk of foam carriers. The adhesive is resistant to chemicals, UV exposure, and solvents, making it suitable for both indoor and outdoor installations. HVAC, electrical, and general trade contractors install this tape where a thin, conformable, permanent adhesive layer is needed on irregular or smooth surfaces.

This tape is well suited for applications requiring a clean, invisible bond line. Its transparent profile makes it ideal for attaching nameplates, gaskets, trim, or lightweight components to metal, glass, or painted surfaces in residential and commercial settings. The tape conforms to contoured surfaces, accommodating slight surface irregularities. It ships in roll form and is backed with a 58-lb polycoated kraft paper liner printed with VHB branding for easy liner removal during application.

Key Features

• 5.0 mil transparent double-sided transfer tape with no foam carrier for a low-profile bond
• High Performance Acrylic Adhesive 100MP provides strong, long-lasting adhesion
• Short-term temperature tolerance up to 500 degrees F (260 degrees C)
• Operating temperature tolerance up to 300 degrees F (149 degrees C)
• Resistant to chemicals, UV, and solvents for demanding indoor and outdoor environments
• 58-lb polycoated kraft paper liner for clean, consistent liner release

Compatibility

Designed as an OEM-style adhesive transfer solution for bonding lightweight components to smooth or lightly textured surfaces in HVAC, electrical, plumbing, and general construction applications.

Installation Notes

Clean and dry both mating surfaces thoroughly before applying the tape to ensure maximum adhesion. Power down or de-energize any equipment before attaching components with this tape in electrical or HVAC assemblies. Apply firm, even pressure across the tape surface after positioning to achieve full adhesive contact. Follow applicable NEC or IFGC guidelines when using adhesive tapes in proximity to heat sources or electrical enclosures.

Technical Specifications

• Thickness: 5.0 mil
• Width: 1.5 inches
• Color/Finish: Transparent
• Adhesive Type: High Performance Acrylic Adhesive 100MP
• Short-Term Temperature Tolerance: 500 degrees F (260 degrees C)
• Operating Temperature Tolerance: 300 degrees F (149 degrees C)
• Liner: 58-lb polycoated kraft paper
• Unit of Measure: Roll
• Package Weight: 0.83 pounds
• Package Dimensions: 13.8 x 13.8 x 11.3 inches
• UPC: 00021200560453

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010374040
