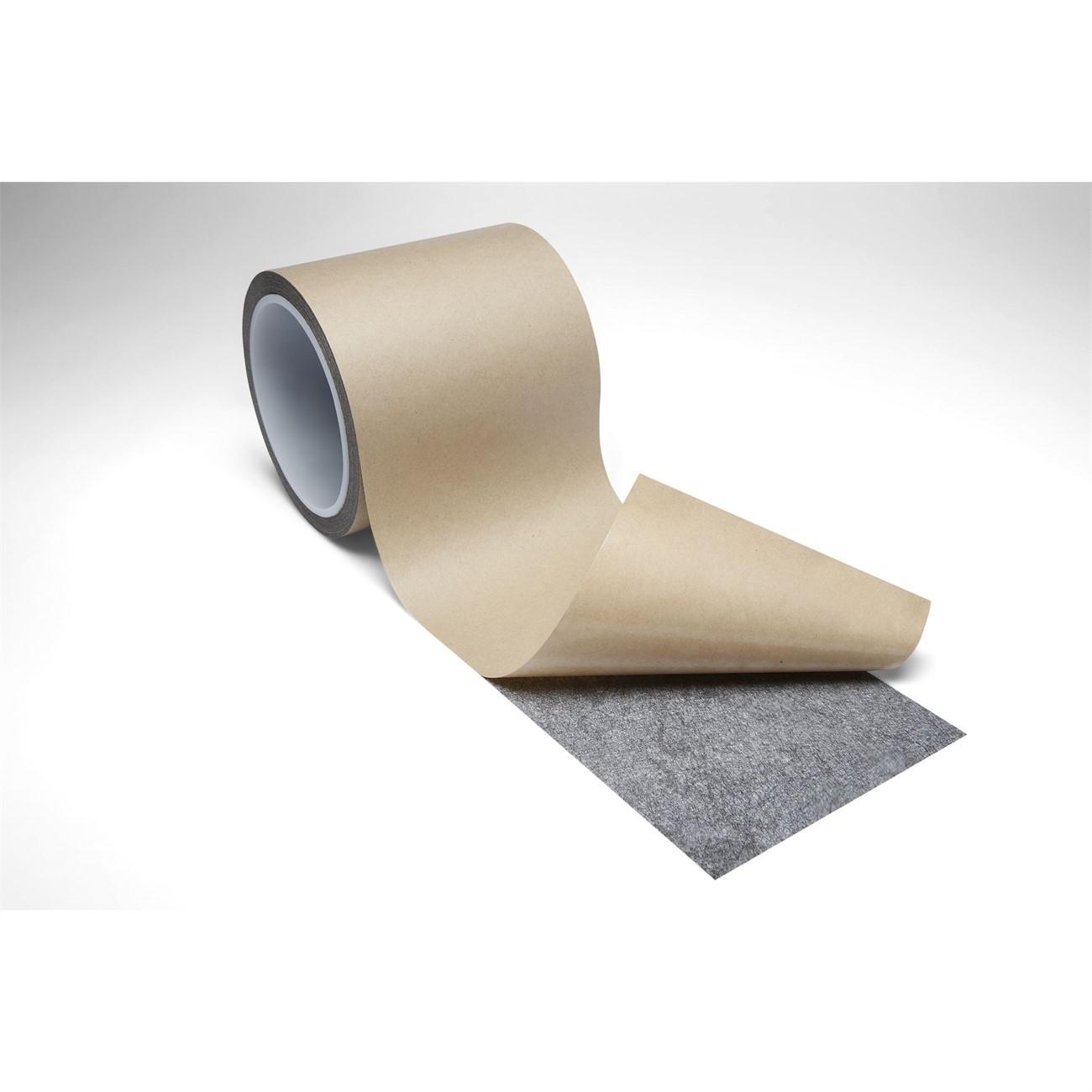

3M 7010374026 Electrically Conductive Tape 9712 0.5in X 36yd

Product Description

The 3M 7010374026 is an isotropically conductive, pressure-sensitive tape designed for EMI shielding applications in electronic and electrical assemblies. Sold as the 3M XYZ-Axis Electrically Conductive Tape 9712, it features a double-sided construction built around a 3M adhesive matrix loaded with conductive fibers. This design delivers simultaneous electrical conductivity across all three axes and reliable mechanical adhesion. The tape ships in a 0.5-inch-wide by 36-yard roll weighing 0.44 pounds. It is typically specified and installed by electronics assembly technicians, electrical engineers, and field service professionals working on shielded enclosures and EMI-sensitive equipment.

This tape is suited for attaching EMI shields to electronic and electrical devices where both adhesion and consistent electrical contact are required. It is compatible with foil laminate shield materials including aluminum/PVC and copper/PVC laminates, allowing integrators to build customized shielding solutions. It may also serve as an attachment medium for conductive fabric and foam-core EMI gaskets bonded to electronic cabinetry. Applications span industrial electronics, telecommunications enclosures, and any assembly requiring controlled EMI containment at housing seams or panel joints.

Key Features

• Isotropic XYZ-axis conductivity through conductive fiber-loaded adhesive matrix
• Double-sided construction provides simultaneous bonding and electrical contact
• Compatible with aluminum/PVC and copper/PVC foil laminate shields
• Suitable for attaching conductive fabric and foam-core EMI gaskets to enclosures
• Pressure-sensitive adhesive — no heat or cure cycle required for activation
• 0.5-inch width suits narrow seam and perimeter bonding applications

Compatibility

Designed for use with foil laminate EMI shields such as aluminum/PVC or copper/PVC laminates, and compatible with conductive fabric and foam-core EMI gaskets used in electronic cabinetry and shielded enclosures.

Installation Notes

This tape is installed by electronics assembly technicians or electrical professionals working on EMI-shielded enclosures. Power down and de-energize all equipment before applying tape to internal shielding surfaces. Ensure mating surfaces are clean and free of oils, dust, and loose particles before application to achieve full adhesive and electrical contact. Do not stretch the tape during application, as this may disrupt fiber alignment and degrade conductivity across the bond line.

Technical Specifications

• Width: 0.5 inches
• Length: 36 yards
• Weight: 0.44 pounds
• Unit of Measure: Roll
• Minimum Order Quantity: 18
• UPC: 00021200461828

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010374026
