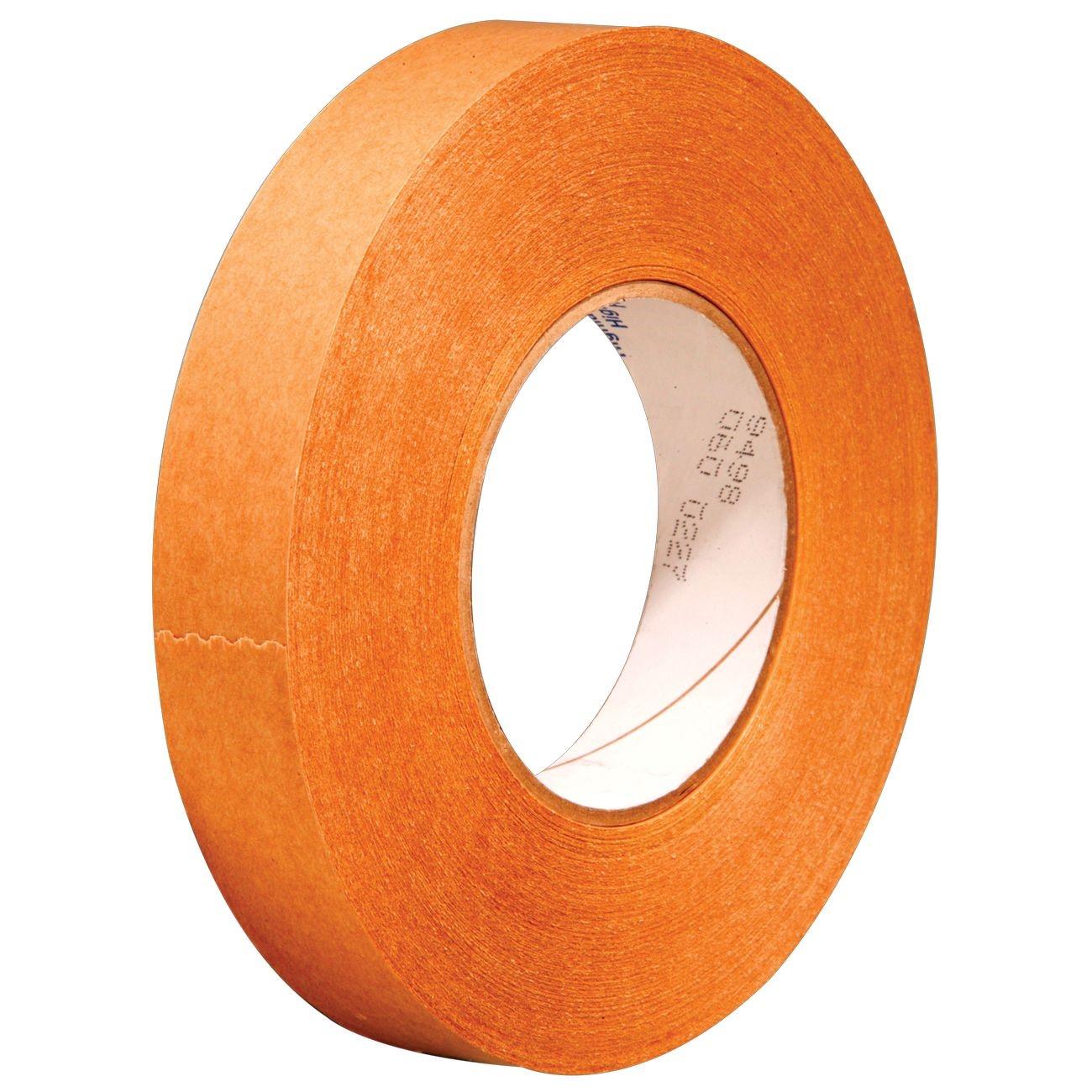

3M 7010373451 Adhesive Transfer Tape 1.5 in 120 Yd

Product Description

The 3M 7010373451 is a high-performance adhesive transfer tape designed for demanding splicing and bonding applications in industrial and printing environments. The 9498 formulation delivers ultra-high peel strength and excellent shear strength, making it well suited for flying splice and core starting operations at process speeds exceeding 2,000 feet per minute. The tape carries moderate temperature resistance, performing reliably up to 250 degrees F (121 degrees C) for extended dwell times and up to 450 degrees F (232 degrees C) for dwell times of ten seconds or less. Licensed technicians and industrial maintenance professionals are the primary installers.

This tape is commonly used in the printing industry where high-speed web handling demands consistent wet grab and reliable adhesion under stress. The transparent film construction allows visual alignment during splicing operations. Its conformable nature makes it effective on irregular surfaces, and its ability to bond to low surface energy plastics broadens its range of compatible substrates. The 60 lb Densified Kraft liner supports precision die-cutting workflows, reducing waste and setup time in production environments.

Key Features

• Ultra-high peel strength and shear strength for rigorous splicing applications
• Excellent flying splice and core starting wet grab characteristics
• Performs at process speeds exceeding 2,000 feet per minute
• Temperature resistance up to 250 degrees F (121 degrees C) for extended dwell; up to 450 degrees F (232 degrees C) for dwell times of 10 seconds or less
• Bonds to low surface energy plastics and most common substrates
• 60 lb Densified Kraft liner for ease of die-cutting operations
• Conformable to irregular surfaces

Compatibility

Designed as an industrial-grade adhesive transfer tape for use in printing, converting, and general manufacturing splicing applications where high-speed web handling and strong substrate adhesion are required.

Installation Notes

Application should be performed by qualified industrial or printing equipment technicians familiar with web splicing procedures. Ensure the substrate surface is clean and dry before applying the tape to achieve full adhesive contact. Power down or de-tension web handling equipment as required by facility safety protocols before performing core starting or splice preparation. Avoid applying the tape in ambient conditions that exceed its rated temperature range during initial bond formation.

Technical Specifications

• Width: 1.5 inches
• Length: 120 yards
• Color: Transparent
• Unit of Measure: Roll
• Temperature Resistance (Continuous): 250 degrees F (121 degrees C)
• Temperature Resistance (Short Dwell): 450 degrees F (232 degrees C)
• Liner: 60 lb Densified Kraft
• Package Weight: 1.47 pounds
• Package Length: 13.38 inches
• Package Width: 13.38 inches
• Package Height: 10.25 inches
• UPC: 00021200840999

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010373451
