3M 7010373426 Vhb F9473PC Adhesive Transfer Tape 4 in

Product Description

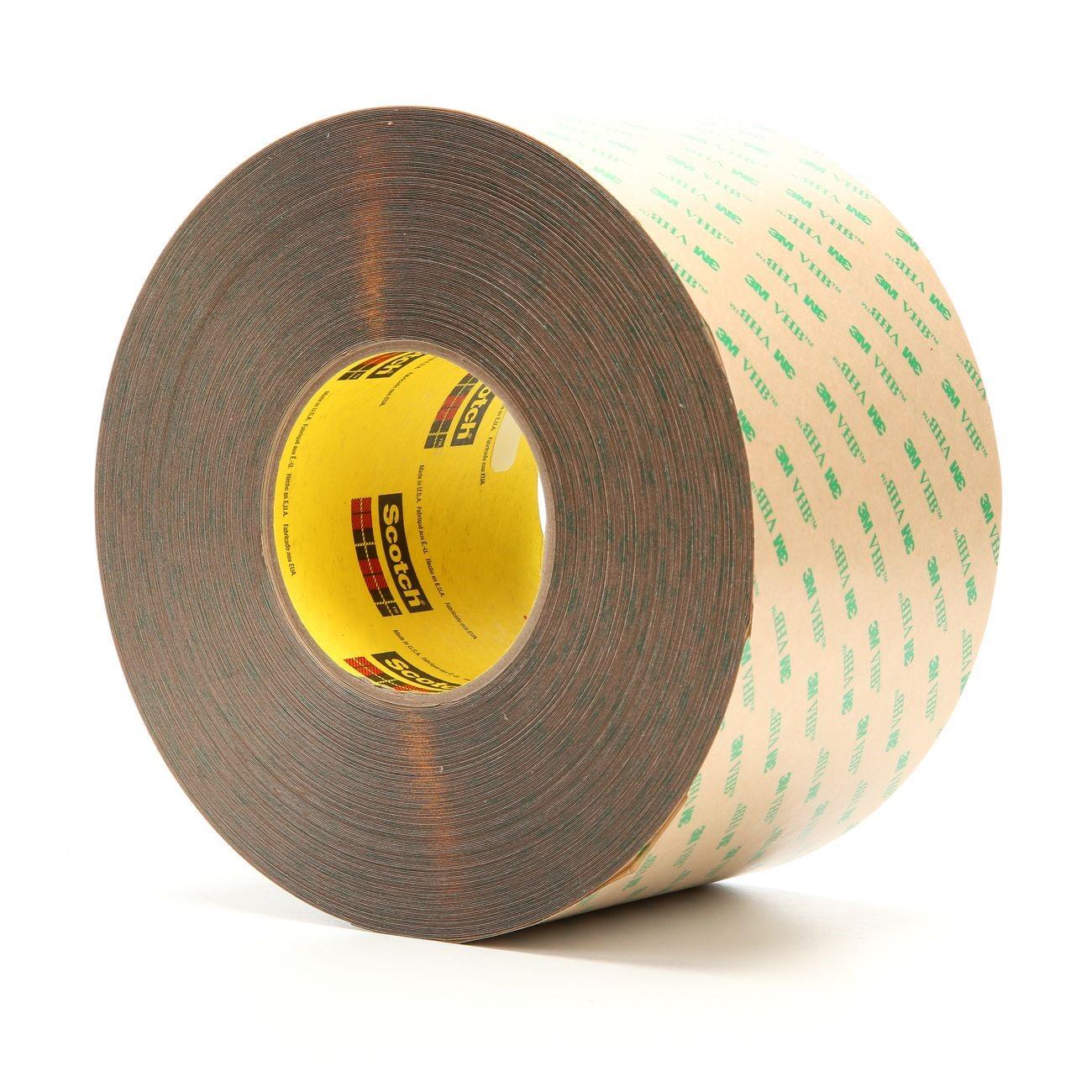

The 3M 7010373426 is a transparent, double-sided VHB adhesive transfer tape built on 3M High Performance Acrylic Adhesive 100MP at a 10 mil (0.26 mm) total thickness. It delivers exceptional holding power and long-lasting adhesion across a wide range of bonding applications. The tape ships on a 58 polycoated kraft paper liner and is rated for an operating temperature up to 300 degrees F (149 degrees C), with short-term exposure tolerance up to 500 degrees F (260 degrees C). Licensed trade professionals and industrial assembly technicians use this tape as a fastening alternative to mechanical hardware in both indoor and outdoor environments.

This tape is suited for bonding applications in residential, commercial, and industrial settings where a thin, conformable, high-strength adhesive layer is required. Its transparent profile makes it appropriate for glass, plastics, metals, and painted surfaces where visible fasteners are undesirable. The acrylic adhesive resists UV exposure, chemicals, and solvents, making it a reliable choice for outdoor signage, panel bonding, trim attachment, and similar assemblies that face environmental stress over time.

Key Features

• 10 mil (0.26 mm) transparent VHB transfer tape with thin conformable profile
• High Performance Acrylic Adhesive 100MP for strong, long-lasting bonds
• Operating temperature tolerance up to 300 degrees F (149 degrees C)
• Short-term temperature tolerance up to 500 degrees F (260 degrees C)
• Resistant to UV, chemicals, and solvents for demanding indoor and outdoor use
• 58 polycoated kraft paper liner for clean, controlled application

Compatibility

Designed as an OEM-style adhesive transfer solution suitable for bonding metals, plastics, glass, and painted surfaces in a wide range of indoor and outdoor assembly applications.

Installation Notes

Surface preparation is critical before applying transfer tape — clean bonding surfaces thoroughly to remove oils, dust, and contaminants. Apply firm, even pressure across the tape after placement to ensure full adhesive contact. Allow adequate dwell time at room temperature before subjecting the bond to load or stress. Avoid stretching the tape during application, as this can reduce long-term holding strength.

Technical Specifications

• Tape Thickness: 10 mil (0.26 mm)
• Width: 4 inches
• Color: Transparent
• Adhesive Type: High Performance Acrylic 100MP
• Operating Temperature: Up to 300 degrees F (149 degrees C)
• Short-Term Temperature Tolerance: Up to 500 degrees F (260 degrees C)
• Liner: 58 polycoated kraft paper
• Package Weight: 5.35 pounds
• Package Dimensions: 8.3 x 8.3 x 10.5 inches
• UPC: 00021200156854

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010373426
