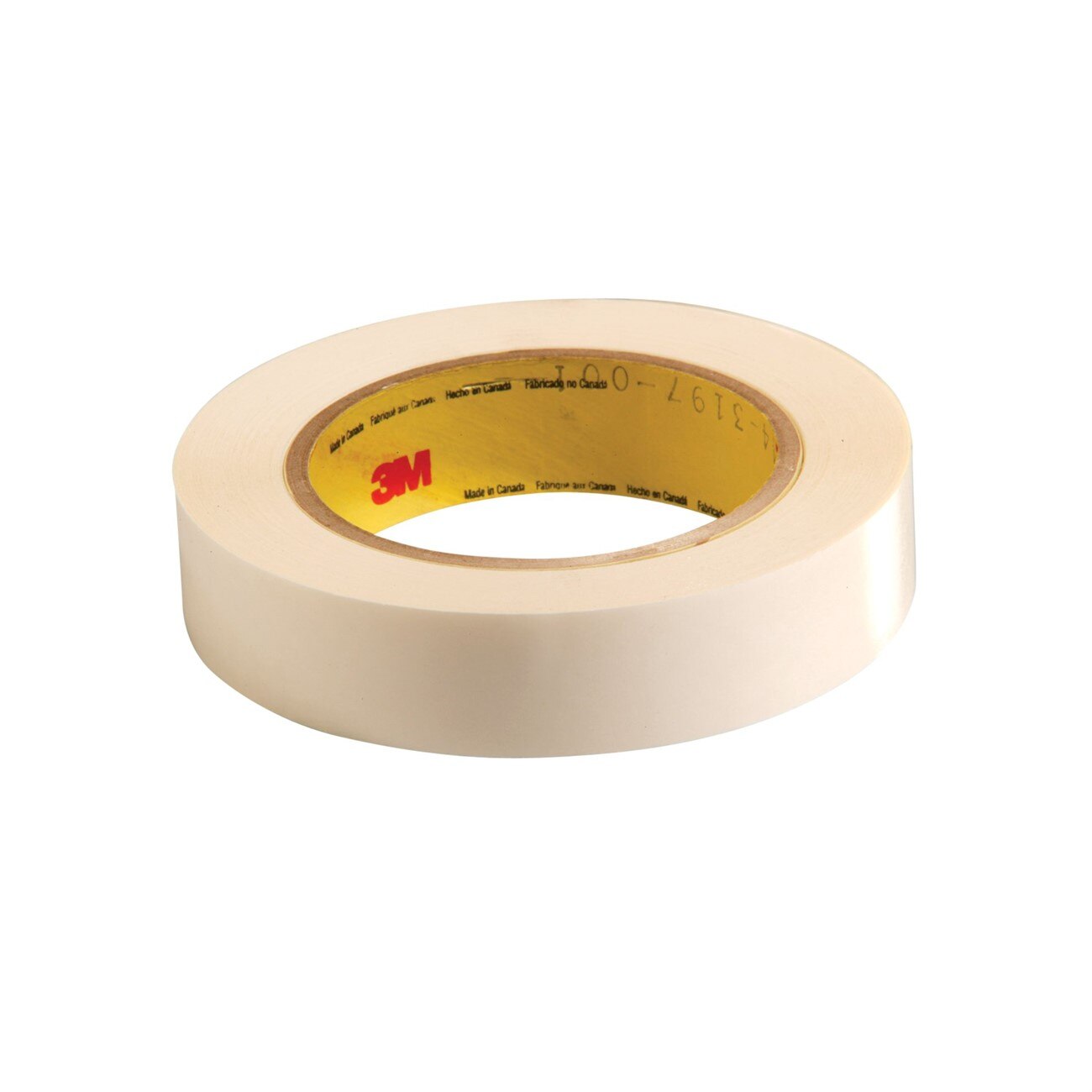

3M 7010373267 Double Coated Tape 1.5 in X 36 Yd Transparent

Product Description

The 3M 7010373267 is a double coated tape designed for bonding smooth, thin materials with low residual stress. It uses 3M Adhesive 300, a medium-firm acrylic adhesive applied to both sides of a 0.5 mil PET film carrier. The PET film adds dimensional stability, making the tape easier to handle during slitting and die-cutting operations. A 3.2 mil densified kraft liner provides clean, reliable release. The tape measures 1.5 inches wide and 36 yards long, making it well suited for high-volume lamination and fabrication work. Licensed tradespeople and manufacturing technicians working with foam, gaskets, and plastic substrates are the primary installers.

This tape is used in applications where a fast, aggressive bond is needed between dissimilar or low-surface-energy materials. It performs well with foams, gaskets, high-surface-energy plastics, and low-surface-energy plastics such as polyethylene. Typical use cases include lamination, foam attachment, and die-cut part assembly in light industrial and manufacturing environments. The quick-flowing adhesive delivers high initial tack, reducing dwell time needed before handling bonded assemblies.

Key Features

• 3M Adhesive 300 medium-firm acrylic adhesive bonds aggressively to HSE and LSE plastics including polyethylene
• 0.5 mil PET film carrier provides dimensional stability for cleaner slitting and die-cutting
• Double coated construction bonds two substrates in a single tape layer
• 3.2 mil densified kraft liner allows easy, consistent release during application
• Quick-flowing adhesive delivers high initial adhesion for faster lamination throughput

Compatibility

Designed for bonding foams, gaskets, high-surface-energy plastics, and low-surface-energy plastics such as polyethylene in light industrial lamination and fabrication applications.

Installation Notes

Surface preparation is critical for maximum bond strength — clean and dry all substrates before application. Apply firm, even pressure across the full tape surface to ensure full contact adhesion. No special tools are required, though rollers are recommended for consistent pressure on large bonded areas. Remove the liner cleanly and avoid repositioning once contact is made, as the aggressive adhesive bonds quickly on contact.

Technical Specifications

• Width: 1.5 inches
• Length: 36 yards
• Adhesive Type: 3M Adhesive 300 medium-firm acrylic
• Carrier: 0.5 mil PET film
• Liner: 3.2 mil densified kraft
• Color: Transparent
• Package Weight: 0.53 pounds
• UPC: 00021200116636

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010373267
