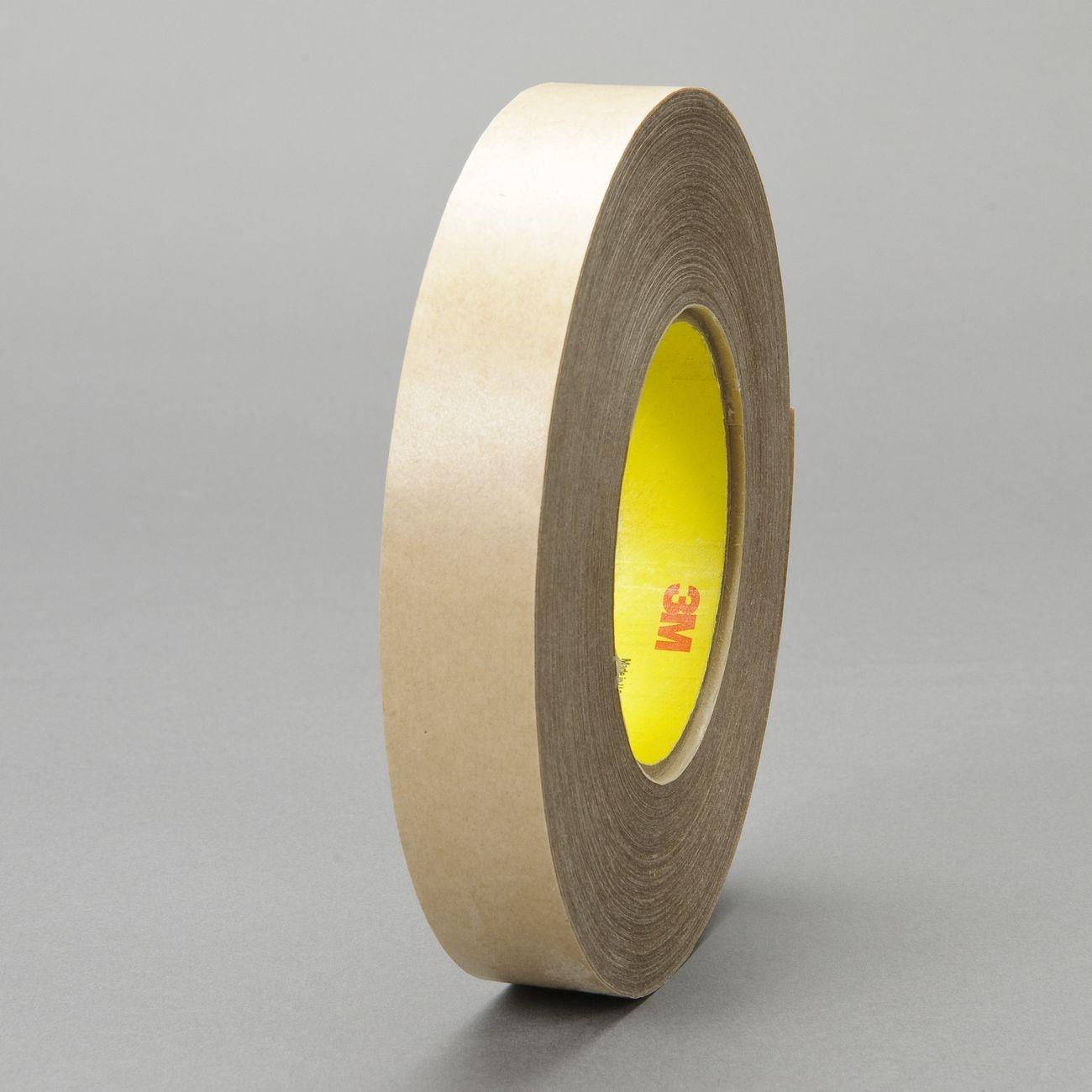

3M 7010372834 Adhesive Transfer Tape 36 Inch 60 Yd

Product Description

The 3M 7010372834 is an adhesive transfer tape built on 3M High Performance Acrylic Adhesive 350, designed for industrial and commercial bonding applications. At 5.0 mils thick, the adhesive layer delivers reliable adhesion to both high and low surface energy substrates, including powder coated paints. The tape ships on a tan 58 lb. PCK polycoated kraft paper liner that provides moisture resistance and minimizes wrinkles during handling. The adhesive is fiber reinforced for roll stability in narrow widths and resists oozing during storage and use. This roll measures 36 inches wide by 60 yards long and is available in a transparent finish.

This transfer tape suits bonding applications across manufacturing, assembly, and fabrication environments where durable, long-term adhesion is required. It performs well on rougher surfaces and on materials with varying surface energy levels. The tape is rated for short-term temperature exposure up to 450 degrees F and long-term continuous exposure up to 300 degrees F, making it suitable for applications near heat sources or in thermally demanding environments. Industrial assemblers, fabricators, and maintenance technicians are the primary installers.

Key Features

• 5.0 mil adhesive thickness provides high bond strength to low surface energy substrates and powder coated paints
• 58 lb. PCK polycoated kraft paper liner resists moisture and minimizes liner wrinkling
• Fiber-reinforced adhesive maintains roll stability in narrow widths and resists oozing
• Excellent chemical resistance with strong shear and peel strength at elevated temperatures
• Short-term temperature resistance to 450 degrees F and long-term resistance to 300 degrees F
• Low odor formulation suitable for enclosed or low-ventilation work environments

Compatibility

Designed for bonding high and low surface energy materials including powder coated paints and rougher surface substrates in industrial and commercial assembly applications.

Installation Notes

Surface preparation is critical — clean and dry all bonding surfaces before application to achieve full adhesive contact. Apply firm, even pressure across the tape after positioning to maximize bond strength. In high-temperature environments, allow the bond to fully dwell before applying thermal load. Installers should consult applicable workplace safety guidelines when working with adhesive tapes in confined or low-ventilation spaces.

Technical Specifications

• Adhesive Type: High Performance Acrylic Adhesive 350
• Tape Thickness: 5.0 mils (0.127 mm)
• Roll Width: 36 inches
• Roll Length: 60 yards
• Liner Type: 58 lb. PCK polycoated kraft paper
• Finish: Transparent
• Short-Term Temperature Resistance: 450 degrees F (232 degrees C)
• Long-Term Temperature Resistance: 300 degrees F (149 degrees C)
• Package Weight: 25.58 pounds
• Package Dimensions: 38 inches L x 8.5 inches W x 8.5 inches H
• Unit of Measure: Roll
• UPC: 00021200407833

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010372834
