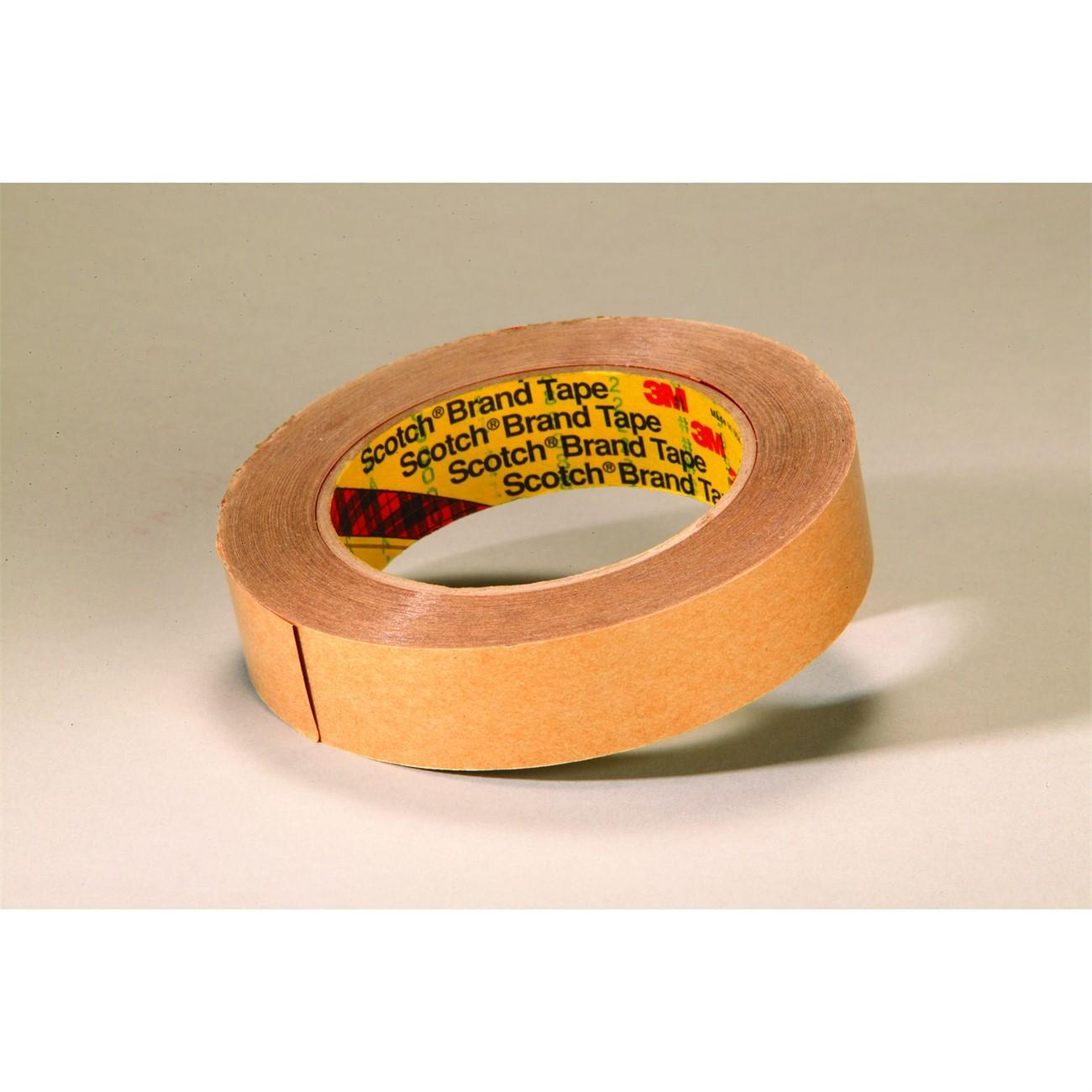

3M 7010372140 Double Coated Tape Red 1 in X 48 Yd 4 Mil

Product Description

The 3M 7010372140 is a double coated polyester film tape designed for demanding splicing and bonding applications. It features a clear, hand-tearable polyester carrier coated on both sides with a heavy layer of pressure-sensitive acrylic adhesive. The red colorway makes it easy to identify in visible splicing operations. A glassine release liner protects the adhesive until application. At 4 mil total thickness, this tape delivers ultra-high peel strength and excellent shear resistance, making it well suited for high-speed or flying splice work in converting, printing, and industrial assembly environments. Installation is typically handled by press operators, line technicians, and maintenance professionals.

This tape is used in industrial and commercial settings where a reliable, conformable double-sided bond is required. Its super aggressive acrylic adhesive bonds well to most substrates, including low surface energy films that challenge standard tapes. It performs across a wide range of converting, packaging, and general assembly applications where UV exposure, irregular surfaces, or dimensional stability during handling are factors. The 1 inch width and 48 yard length per roll suit both short-run and continuous splicing operations.

Key Features

• Ultra-high peel strength and excellent shear strength for rigorous splicing applications
• High tack formulation supports flying splice operations
• Bonds to most substrates including low surface energy films
• Excellent UV resistance for use across varied environmental conditions
• Conformable carrier adheres to irregular and flat surfaces
• Red color provides visual identification in splicing workflows
• Double-sided adhesion supports dimensional stability and easy handling

Compatibility

Designed as a double coated splicing and bonding tape for industrial converting, printing, and assembly applications requiring adhesion to standard and low surface energy film substrates.

Installation Notes

Application is typically performed by press operators or maintenance technicians. Clean and dry the substrate surface before applying the tape to ensure full adhesive contact. Remove the glassine liner only at the moment of application to prevent contamination of the adhesive surface. For flying splice applications, confirm the tape is seated firmly and uniformly across the full bonding width before running.

Technical Specifications

• Tape Construction: Double coated polyester film with glassine release liner
• Adhesive Type: Pressure-sensitive acrylic
• Color: Red
• Width: 1 inch
• Length: 48 yards per roll
• Total Thickness: 4 mil
• Unit of Measure: Roll
• Minimum Order Quantity: 48
• Weight: 0.43 pounds
• UPC: 00021200160554

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010372140
