3M 7010367846 Convolute Light Deburring Wheel 10 in

Product Description

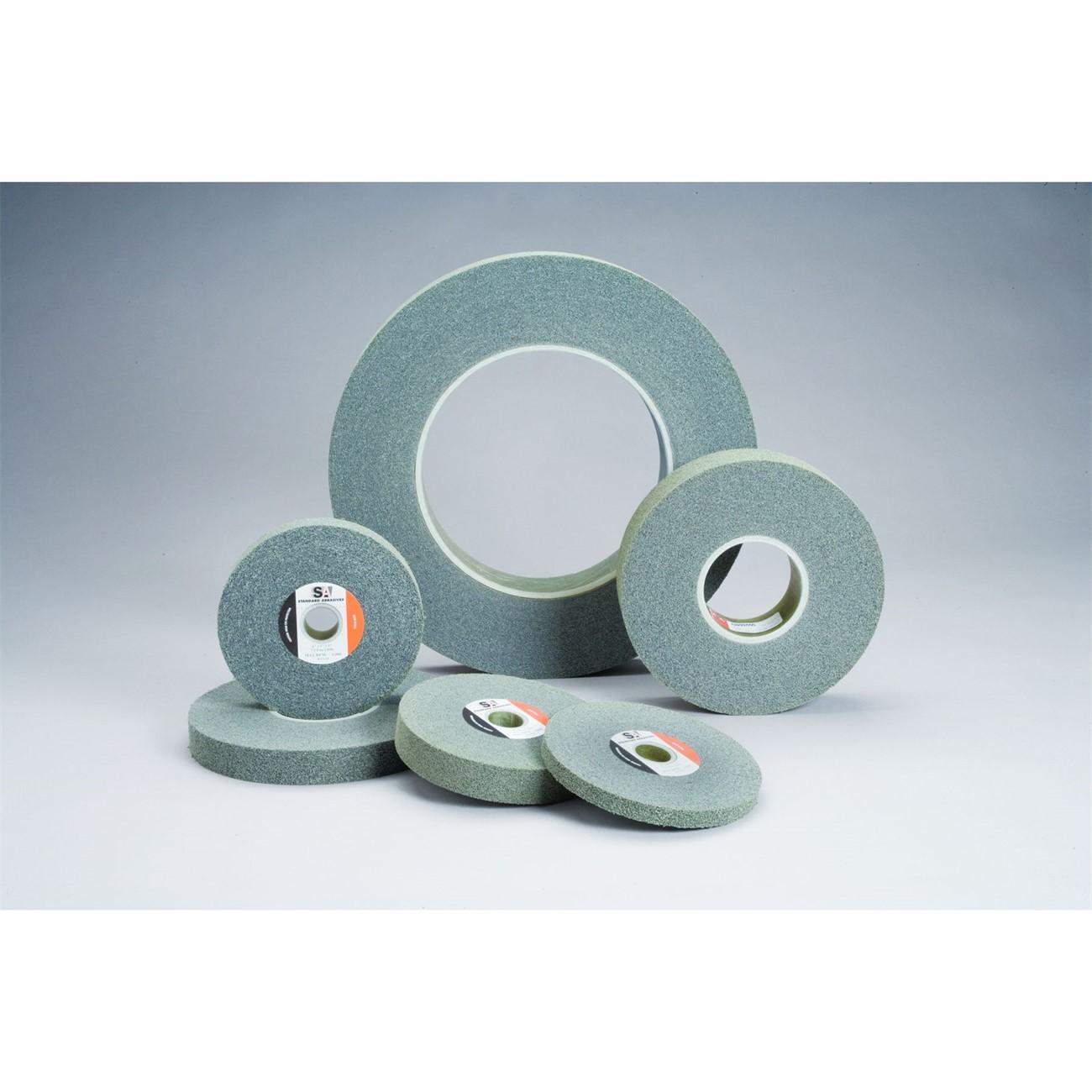

The 3M 7010367846 is a convolute light deburring wheel designed for finishing and deburring parts with critical tolerances. The wheel uses a soft-density construction that allows the abrasive material to conform to the workpiece surface, reducing the risk of undercutting or gouging. At 10 inches in diameter with a 5-inch arbor, it is sized for stationary and automated equipment commonly found in metalworking and fabrication shops. Machinists, tool and die technicians, and finishing operators install and use this wheel as part of surface prep and deburring operations.

This wheel is suited for light deburring, blending machine marks, blending belt marks, and finishing small parts with tight dimensional tolerances. It performs on automated equipment, straight-shaft stationary machines, portable tools, and feed-through machines. Its non-metallic composition prevents contamination of the workpiece, making it appropriate for applications where material cleanliness is critical. The wheel also maintains a smear-resistant finish, which is relevant in precision finishing environments.

Key Features

• Soft density construction allows the abrasive to conform to the substrate, preventing undercutting and gouging
• Non-metallic wheel body eliminates the risk of workpiece contamination
• Maintains a smear-resistant finish on finished surfaces
• Compatible with automated equipment, stationary tools, portable tools, and feed-through machines
• Fast finish rate reduces operator effort compared to conventional deburring wheels
• Suitable for blending machine marks, belt marks, and finishing small precision parts

Compatibility

Designed for use on automated equipment, straight-shaft stationary and portable tools, and feed-through machines requiring a 5-inch arbor and a 10-inch diameter convolute deburring wheel.

Installation Notes

Installation should be performed by a qualified operator following the machine manufacturer's mounting instructions for convolute wheels. Power down and de-energize the machine completely before mounting or removing the wheel. Confirm that the machine's arbor size matches the 5-inch arbor bore and that the rated RPM of the machine does not exceed the maximum RPM rating of the wheel. Inspect the wheel for damage before each use and do not use a wheel that shows cracks or deterioration.

Technical Specifications

• Wheel Diameter: 10 inches
• Arbor Size: 5 inches
• Wheel Type: Convolute Light Deburring
• Package Dimensions: 10.38 x 10.38 x 3.75 inches
• Weight: 4.41 pounds
• Unit of Measure: Each
• UPC: 051141435874

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010367846
