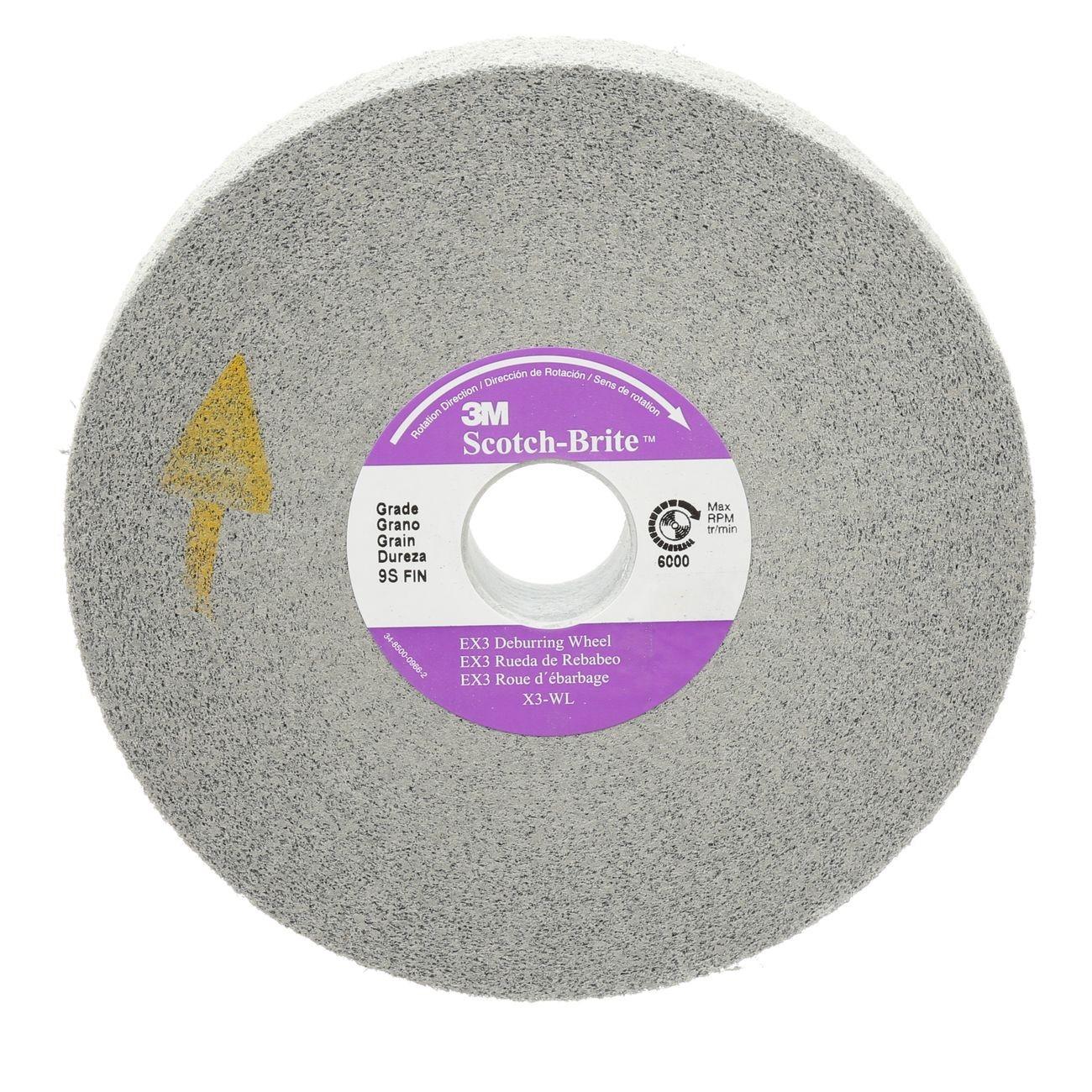

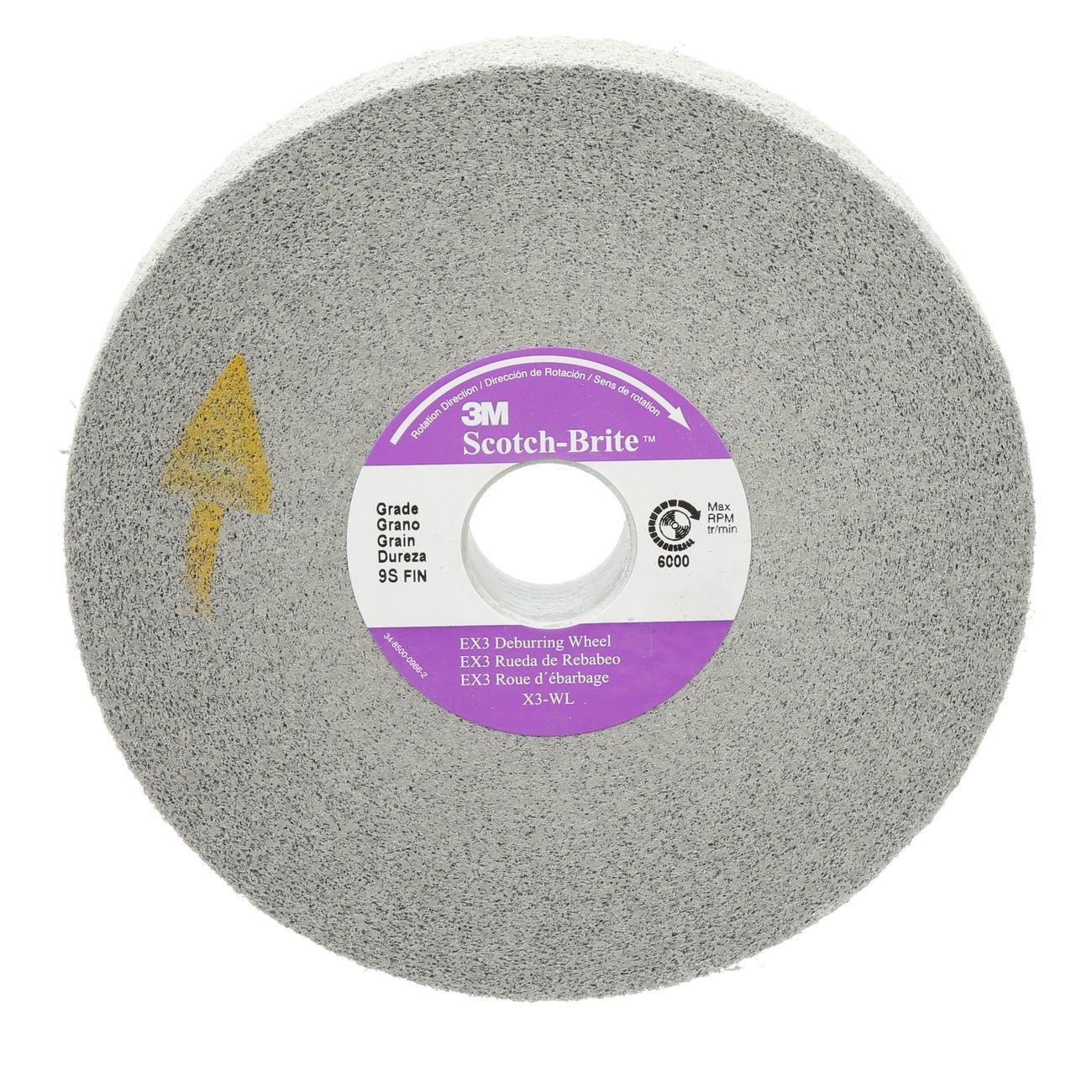

3M 7010366863 Convolute Deburring Wheel 12 in 5 in Arbor

Product Description

The 3M 7010366863 is a convolute-constructed deburring wheel engineered for aggressive edge deburring on metal workpieces. Built under the Scotch-Brite EX3 Deburring Wheel line, this hard, durable wheel is designed to perform best when consistently presented with sharp edges and metal burrs. Its non-woven web construction runs cool, reducing heat buildup on heat-sensitive materials, while a specialized resin system resists smearing and minimizes cleanup time. At 12 inches in diameter with a 5 inch arbor, this wheel suits industrial deburring operations that demand consistent edge retention throughout the full product life cycle.

This deburring wheel is used in metal fabrication and finishing operations where edge conditioning is a recurring requirement. It is suited for production environments handling ferrous and non-ferrous metals that require aggressive burr removal without leaving smeared residue. The convolute construction keeps the wheel balanced and running smoothly from first use through final wear. Metalworking shops, machine shops, and industrial maintenance technicians are the primary installers and operators of this wheel type.

Key Features

• Highest edge retention and durability in the Scotch-Brite Deburring Wheel line for aggressive edge deburring
• Convolute construction delivers a balanced, smooth-running wheel throughout product life
• Non-woven web runs cool and reduces impact on heat-sensitive materials
• Unique resin system resists smearing, reducing clean and prep time between operations
• Hard, durable build suited for applications where consistent edge contact is required

Compatibility

Designed as a convolute deburring wheel for use on standard arbor-mount grinding and deburring machines accepting a 5 inch arbor bore and accommodating a 12 inch diameter wheel.

Installation Notes

This wheel should be mounted by a qualified operator following the machine manufacturer's guidelines for wheel installation and rated speed limits. Always power down and lock out the machine before mounting or removing the wheel. Inspect the wheel for damage before each use and never exceed the maximum operating RPM listed on the wheel or machine. Eye protection and appropriate PPE are required during operation.

Technical Specifications

• Wheel Diameter: 12 inches
• Arbor Size: 5 inches
• Construction Type: Convolute
• Package Dimensions: 12.4 x 12.4 x 2.6 inches
• Weight: 20.65 pounds
• UPC: 048011646911
• Unit of Measure: Each
• Minimum Order Quantity: 10

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010366863
