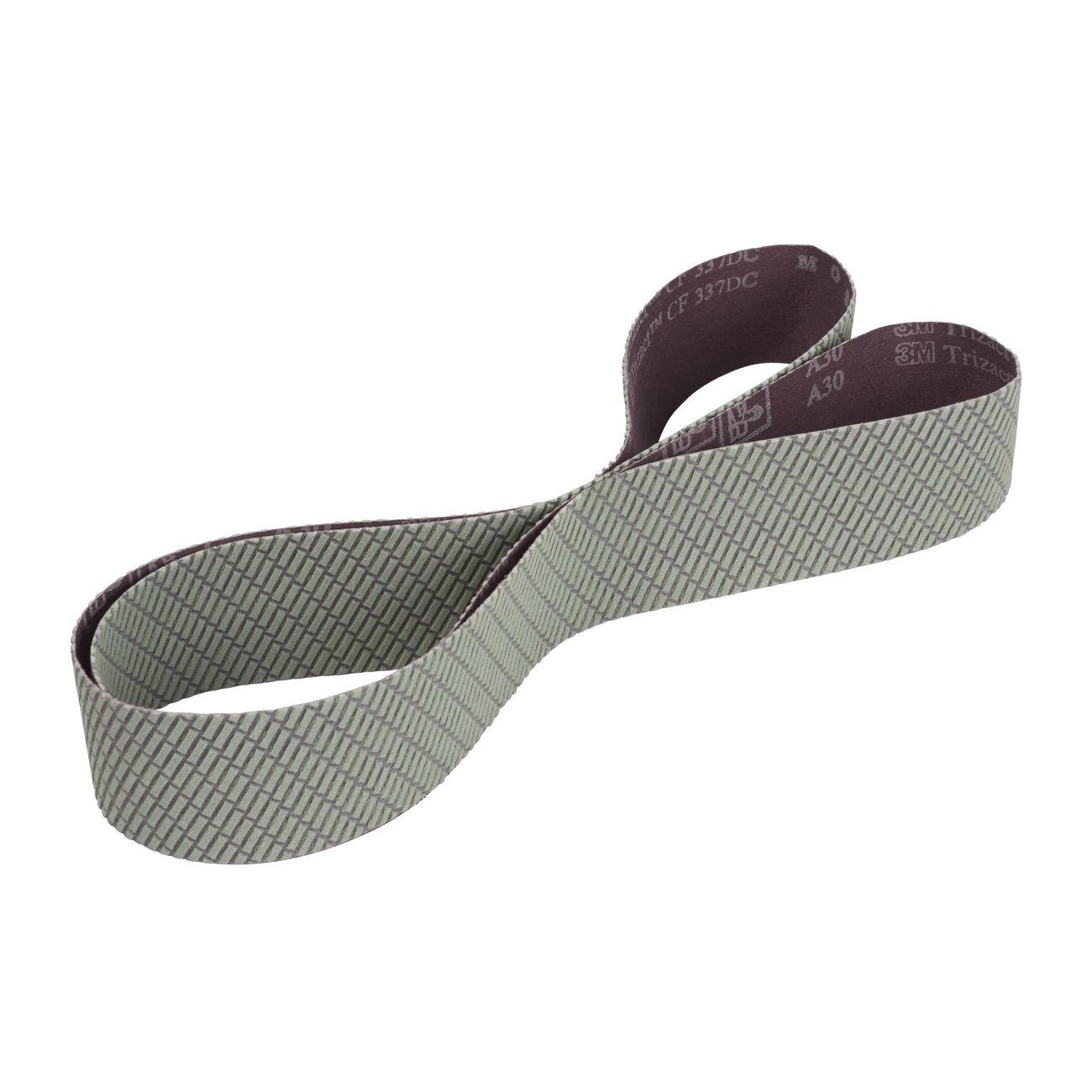

3M 7010365340 Trizact 337DC Abrasive Belt 132x3 Inch

Product Description

The 3M 7010365340 is a Trizact 337DC coated abrasive belt designed for intermediate to final finish operations under medium pressure. Built on a durable X-weight cloth backing, the belt incorporates aluminum oxide mineral with a grinding aid that reduces heat buildup during dry grinding. The macroreplicated abrasive structure consists of precisely shaped three-dimensional bricks arranged in a pattern that self-renews as the belt wears, delivering consistent cut rates and predictable surface finishes from the first pass to the last. This belt measures 132 inches in length and 3 inches in width and is sold individually.

This belt is suited for metalworking applications where both grinding and finishing operations need to be performed efficiently. The grinding aid and structured abrasive geometry make it particularly effective for dry grinding on ferrous and non-ferrous metals in fabrication shops, maintenance environments, and production finishing lines. The channel structure between abrasive bricks evacuates swarf and debris, keeping the work surface cleaner and reducing loading. Trades and machinists handling weld blending, surface preparation, or precision finishing work are the primary installers and users of this product.

Key Features

• Macroreplicated abrasive bricks contain multiple layers of aluminum oxide mineral for controlled, self-renewing cut
• Channels between abrasive bricks remove swarf and reduce surface loading during grinding
• Grinding aid reduces friction and keeps the workpiece cool during dry grinding operations
• X-weight cloth backing provides durability for demanding medium-pressure applications
• Capable of completing grinding and finishing in a single operation, reducing process steps
• Extended belt life reduces per-part abrasive cost and lowers inventory requirements

Compatibility

Designed as a replacement-style coated abrasive belt for wide-belt and contact-wheel belt grinder setups that accept a 132-inch by 3-inch belt configuration.

Installation Notes

Installation should be performed by a qualified operator familiar with abrasive belt machinery. Ensure the grinder is fully de-energized and locked out before mounting or replacing the belt. Verify belt tracking and tension per the equipment manufacturer's guidelines before resuming operation. Inspect the belt for tears or edge damage prior to each use.

Technical Specifications

• Belt Length: 132 inches
• Belt Width: 3 inches
• Abrasive Mineral: Aluminum Oxide
• Backing Material: X-weight Cloth
• Grade Range Available: A300 to A30
• Width Range Available: 0.5 to 24 inches
• Weight: 1.02 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 5
• UPC: 00048011331676

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010365340
