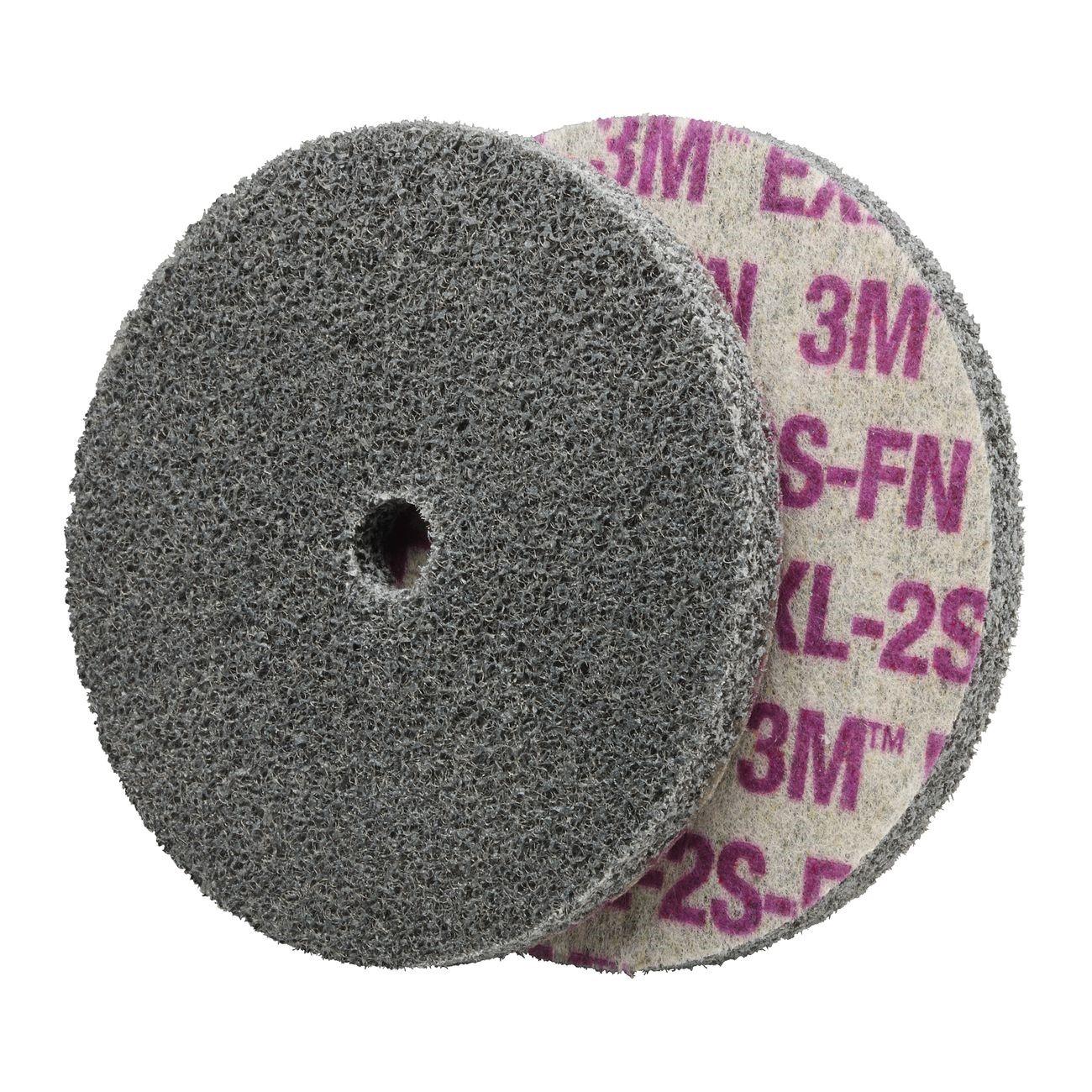

3M 7010365138 Scotch-brite Exl Unitized Wheel 1.5 in

Product Description

The 3M 7010365138 is a Scotch-Brite EXL Unitized Abrasive Wheel designed for smoothing, deburring, and surface finishing on metal alloys, plastics, and composites. At 1.5 inches in diameter, this wheel features a layered, unitized construction built around silicon carbide abrasive mineral. The soft, conformable consistency keeps the abrasive in continuous contact with the workpiece, including contoured and complex-shaped parts. Minimizes heat build-up during operation, which is critical when working with heat-sensitive base materials. Used in both manual bench grinding and automated robotic processing environments.

This wheel is suited for fabrication shops, metalworking operations, and finishing lines where consistent edge treatment is required. Typical applications include deburring cut edges, blending weld seams, and preparing surfaces on ferrous and non-ferrous metals as well as many plastics and composites. The unitized construction maintains wheel integrity throughout the wheel life, delivering repeatable results across production runs. Effective for both light finishing passes and moderate material removal depending on density and grade selected.

Key Features

• Silicon carbide abrasive mineral for effective cutting action on metals, plastics, and composites
• Layered, unitized construction operates in both clockwise and counterclockwise directions
• Conformable consistency maintains abrasive contact on complex and irregular part geometries
• Resists smearing for cleaner finished surfaces and reduced prep time
• Minimizes heat build-up to protect heat-sensitive workpiece materials
• Wheel edge can be dressed to restore cutting performance for deburring, finishing, and polishing

Compatibility

Designed as an OEM-style unitized abrasive wheel for use on standard bench grinders, die grinders, and robotic finishing equipment accepting 1.5-inch diameter wheel arbors.

Installation Notes

Installation and wheel changes should be performed by a qualified operator following ANSI B7.1 safety standards for abrasive wheels. Power down and de-energize the grinding machine fully before mounting or removing the wheel. Inspect the wheel for cracks or damage before each use and confirm the machine speed rating does not exceed the wheel maximum RPM. Do not apply excessive lateral pressure against the wheel face during operation.

Technical Specifications

• Abrasive Mineral: Silicon Carbide
• Wheel Diameter: 1.5 inches
• Package Dimensions: 6.4 inches x 4.7 inches x 4.7 inches
• Weight: 1.13 pounds
• Unit of Measure: Each
• UPC: 048011280023

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010365138
