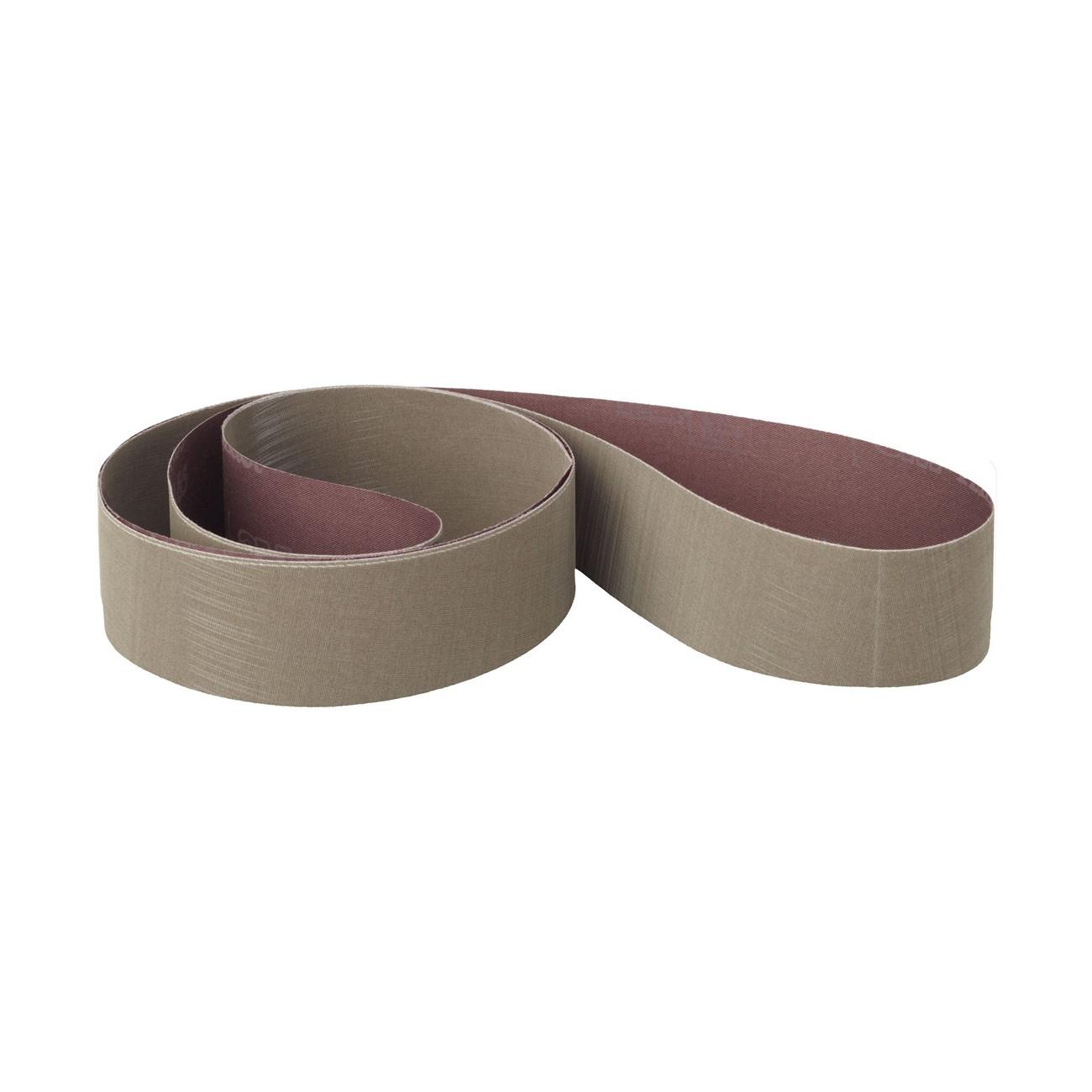

3M 7010365060 Trizact 307EA Abrasive Belt 42x1 Inch Ao

Product Description

The 3M 7010365060 is a Trizact 307EA coated abrasive belt engineered for intermediate finishing and fine polishing applications. It uses microreplication technology in which micron-graded aluminum oxide particles are formed into uniform three-dimensional pyramids and bonded to a flexible rayon cloth backing. As the pyramids wear during use, fresh sharp mineral is continuously exposed, producing a consistent cut rate and a predictable fine finish from start to finish. The belt measures 42 inches in length and 1 inch in width, making it suited for narrow-contact finishing setups. Licensed abrasive technicians and metalworking professionals working in manual or robotic grinding cells are the primary installers and users of this product.

This belt is designed for intermediate and fine finishing steps prior to plating, buffing, or other surface-treatment operations. Its flexible rayon cloth backing allows the belt to conform to contoured and irregular workpiece profiles, delivering surface consistency across complex geometries. The three-dimensional abrasive structure is particularly well suited for robotic finishing cells where repeatable, uniform finish quality is required across high production volumes. It outperforms conventional electrostatically coated abrasive belts in finish consistency and run temperature.

Key Features

• Microreplication technology forms aluminum oxide into uniform pyramids for self-sharpening abrasive action
• Continuously exposes fresh mineral as pyramids wear, maintaining consistent cut throughout belt life
• Runs cooler than conventional abrasives, reducing heat buildup at the workpiece surface
• Flexible rayon cloth backing conforms to contoured surfaces for even material removal
• Three-dimensional design delivers repeatable finishes in robotic and automated finishing applications
• Produces finer surface finishes than conventional electrostatically coated abrasive belts

Compatibility

Designed for use on belt finishing machines that accept a 42-inch by 1-inch abrasive belt, commonly used in metalworking, fabrication, and surface preparation operations ahead of plating or buffing.

Installation Notes

Installation should be performed by qualified metalworking or maintenance personnel familiar with abrasive belt equipment. Power down and lock out the machine before changing belts. Verify correct belt tracking and tension per the equipment manufacturer's guidelines before resuming operation. Inspect the belt for tears or edge damage before each use and do not exceed the machine's rated operating speed.

Technical Specifications

• Belt Length: 42 inches
• Belt Width: 1 inch
• Abrasive Mineral: Aluminum Oxide
• Backing Material: Rayon Cloth
• Abrasive Structure: Three-dimensional microreplication pyramids
• Color: Gray
• Unit of Measure: Each
• Weight: 0.06 pounds

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010365060
