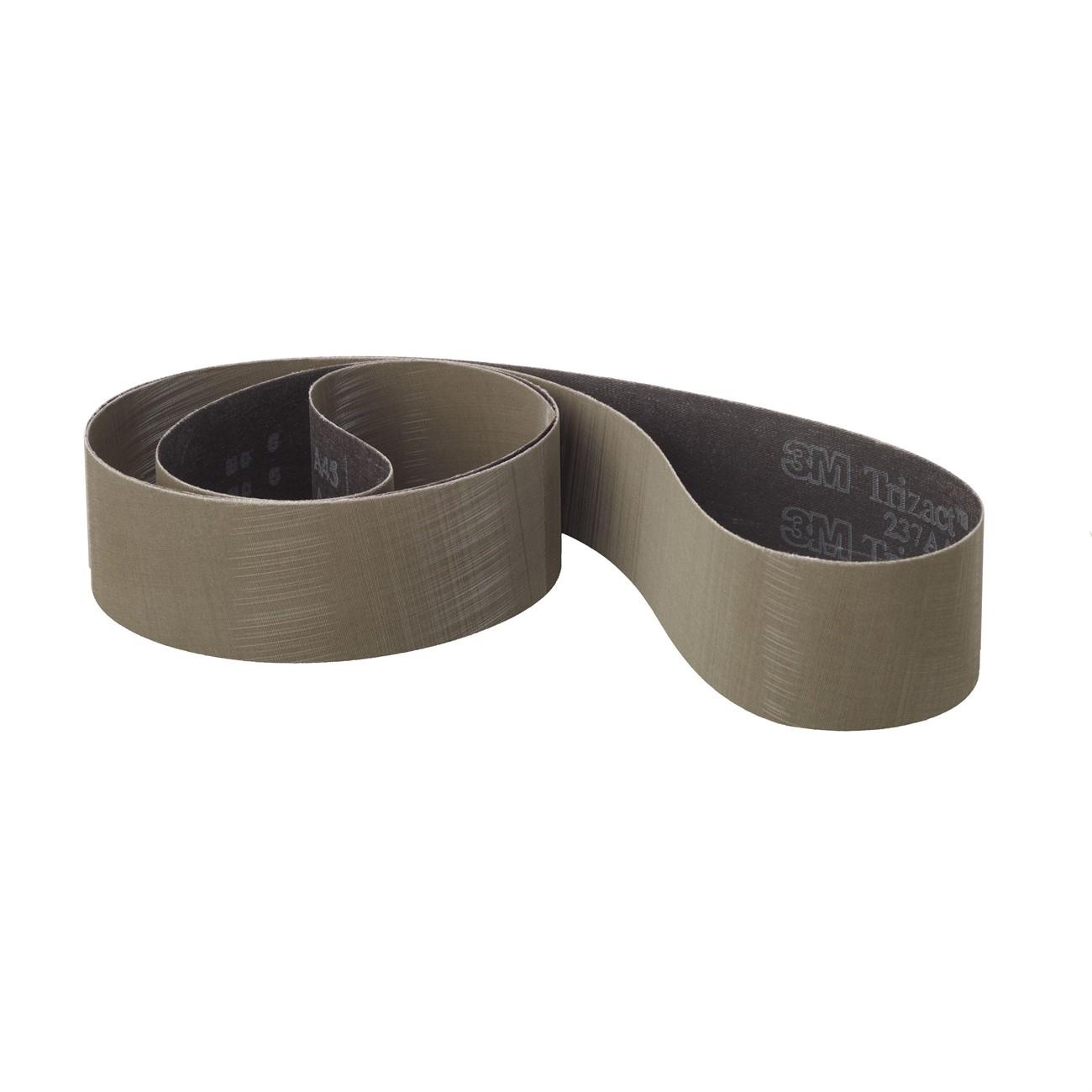

3M 7010365057 Trizact 237AA Abrasive Belt 132x5.5 in

Product Description

The 3M 7010365057 is a Trizact 237AA coated abrasive belt designed for intermediate finishing and fine polishing in metalworking and fabrication applications. It uses 3M microreplication technology, where micron-graded aluminum oxide mineral is formed into three-dimensional pyramids and bonded to an X-weight cloth backing. As the pyramids wear down during use, fresh, sharp abrasive is continuously exposed at the cutting surface. This self-renewing action delivers a consistent cut rate and a predictable, fine finish from start to finish. The belt measures 132 inches in length and 5.5 inches in width and weighs 0.75 pounds.

This belt is well suited for robotic and automated grinding applications where consistent, repeatable finishes are critical. It is also used in manual and semi-automated finishing operations prior to plating or buffing on metal components. The flexible cloth backing conforms to contoured surfaces, making it practical for finishing complex part geometries. Typical users include metal fabricators, aerospace component finishers, and industrial maintenance shops working with ferrous and non-ferrous metals.

Key Features

• Microreplication technology forms aluminum oxide mineral into self-sharpening three-dimensional pyramids
• Fresh, sharp abrasive is continuously exposed as pyramids wear, maintaining consistent cut rate
• Runs cooler than conventional abrasives, reducing heat-related workpiece damage
• X-weight cloth backing provides flexibility for finishing contoured and complex surfaces
• Delivers finer, more consistent finishes than conventionally electrostatically coated abrasives
• Suited for robotic and automated finishing lines where finish repeatability is required

Compatibility

Designed for use on belt grinders and finishing machines that accept 132-inch by 5.5-inch abrasive belts. Appropriate for intermediate finishing and fine polishing of metal parts prior to plating or buffing operations.

Installation Notes

Install on a belt grinder or finishing machine rated for the belt dimensions before energizing the equipment. Confirm belt tension and tracking per the machine manufacturer specifications before beginning a run. Inspect the belt for tears or edge damage before each use. This product is intended for use by trained operators familiar with abrasive belt safety practices and applicable workplace safety regulations.

Technical Specifications

• Abrasive Mineral: Aluminum Oxide
• Belt Length: 132 inches
• Belt Width: 5.5 inches
• Backing Material: X-Weight Cloth
• Color: Gray
• Weight: 0.75 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 20
• UPC: 00051111693780

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010365057
