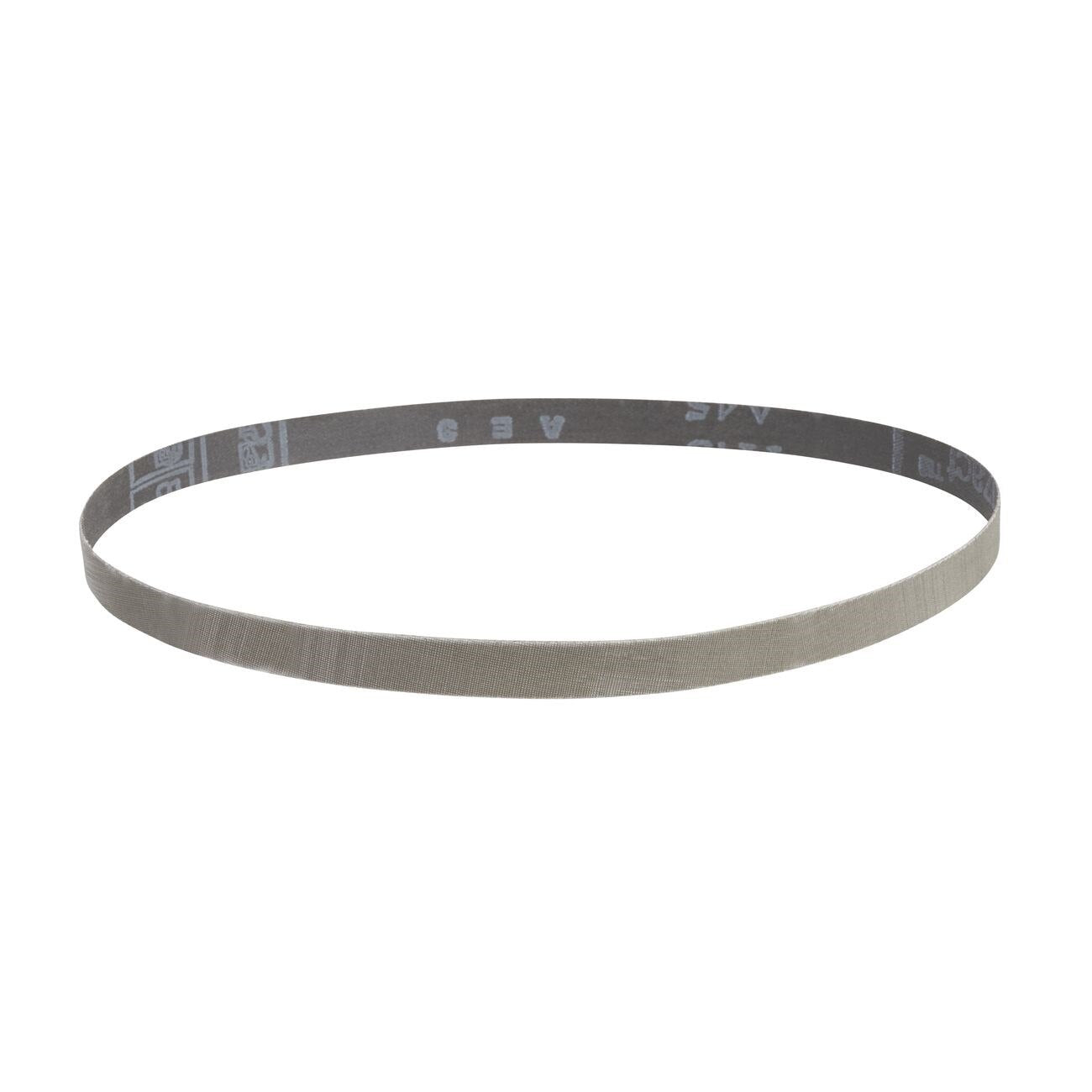

3M 7010365054 Trizact 237AA Abrasive Belt 30x3/4 Inch

Product Description

The 3M 7010365054 is a Trizact 237AA coated abrasive belt designed for intermediate finishing and fine polishing applications. It uses 3M microreplication technology in which micron-graded aluminum oxide mineral is formed into three-dimensional pyramids and bonded to an X-weight cloth backing. As the pyramids wear down during use, fresh cutting edges are continuously exposed. The result is a consistent cut rate and a predictable fine finish across the full life of the belt. The flexible cloth backing conforms to contoured workpiece surfaces without losing abrasive contact.

This belt is suited for metalworking operations that require a controlled, repeatable surface finish before plating, buffing, or final polishing. The three-dimensional abrasive structure makes it particularly effective in robotic and automated grinding lines where consistent finish output across a full production run is required. Manual bench or handheld belt grinder applications also benefit from the self-sharpening action, which reduces the frequency of belt changes compared to conventional electrostatically coated abrasives.

Key Features

• Microreplication technology forms aluminum oxide mineral into self-sharpening abrasive pyramids
• Pyramids continuously expose fresh cutting edges as they wear, maintaining consistent cut rate
• Runs cooler than conventional abrasives, reducing heat buildup at the workpiece surface
• X-weight flexible cloth backing conforms to contoured surfaces for uniform finish
• Produces finer finishes than conventional electrostatically coated abrasive belts
• Suited for intermediate finishing and fine polishing prior to plating or buffing

Compatibility

Designed for use on belt grinders and automated finishing equipment accepting a 30-inch length by 3/4-inch width abrasive belt configuration.

Installation Notes

Belt installation and replacement should be performed by a qualified operator following the equipment manufacturer's belt-tensioning and tracking procedures. Power down and lock out the grinder before changing belts. Verify belt direction-of-travel arrow aligns with wheel rotation before resuming operation. Inspect the contact wheel and platen for wear or damage prior to mounting a new belt.

Technical Specifications

• Belt Length: 30 inches
• Belt Width: 0.75 inches
• Abrasive Mineral: Aluminum Oxide
• Backing Material: X-weight Cloth
• Abrasive Type: Trizact Microreplication
• Color: Gray
• Weight: 0.03 pounds
• Unit of Measure: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010365054
