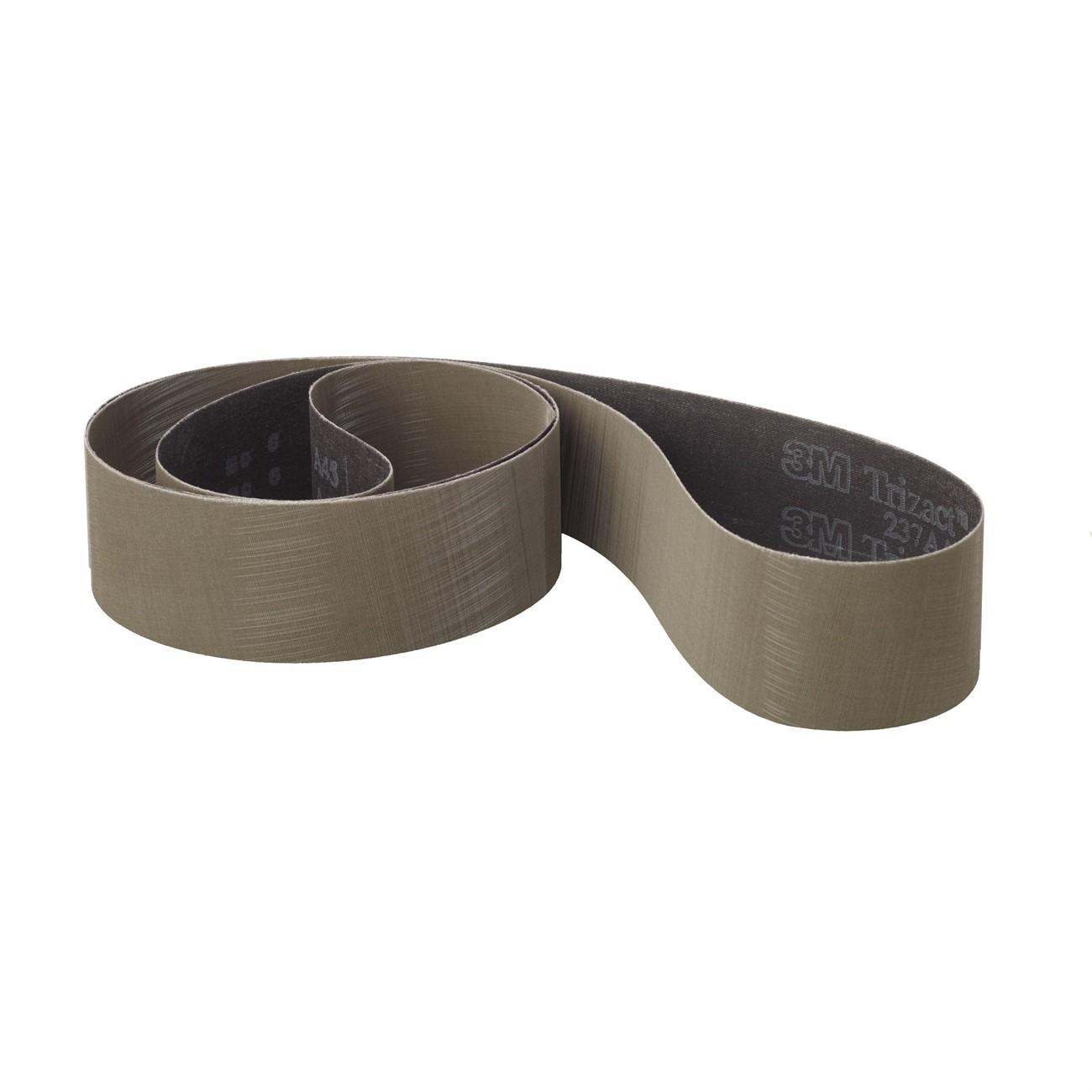

3M 7010365044 Trizact 237AA Abrasive Belt 72x3 Inch

Product Description

The 3M 7010365044 is a Trizact 237AA coated abrasive belt engineered for intermediate finishing and fine polishing applications. It uses 3M microreplication technology, where micron-graded aluminum oxide particles are formed into uniform three-dimensional pyramids and bonded to an X-weight cloth backing. As the pyramids wear during use, fresh sharp mineral is continually exposed at the cutting surface. The result is a consistent cut rate and a predictable, fine surface finish throughout the life of the belt. At 72 inches long and 3 inches wide, this belt fits a range of industrial belt grinding and finishing machines.

This belt is suited for metalworking operations requiring repeatable surface finishes before plating or buffing. The flexible cloth backing conforms to contours, making it effective on both flat stock and shaped workpieces. The three-dimensional abrasive structure performs consistently in robotic and automated finishing lines where uniform output is critical. Machinists, metal fabricators, and finishing technicians working in industrial or manufacturing environments are the primary users of this product.

Key Features

• Microreplication technology forms aluminum oxide into uniform abrasive pyramids for consistent cut and finish
• Self-sharpening pyramid structure exposes fresh mineral as the belt wears, extending usable life
• Runs cooler than conventional abrasives, reducing heat buildup on workpiece surfaces
• Flexible X-weight cloth backing conforms to contoured surfaces for even material removal
• Produces finer finishes than conventional electrostatically coated abrasive belts
• Consistent three-dimensional design supports repeatable results in robotic and automated applications

Compatibility

Designed for use on belt grinding and finishing machines that accept 72-inch by 3-inch abrasive belts; intended for intermediate finishing and fine polishing of metal workpieces prior to plating or buffing operations.

Installation Notes

Belt installation and tensioning should be performed by a qualified machine operator or maintenance technician following the equipment manufacturer's guidelines. Ensure the machine is fully de-energized and locked out before changing belts. Inspect the belt for tears or edge damage before mounting, and confirm proper tracking before resuming operation. Always use appropriate eye and hand protection when handling coated abrasive belts.

Technical Specifications

• Belt Length: 72 inches
• Belt Width: 3 inches
• Abrasive Mineral: Aluminum Oxide (Microreplication Grade)
• Backing Material: X-Weight Cloth
• Color: Gray
• Weight: 27.882 pounds
• UOM: Each
• UPC: 00051111692950

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010365044
