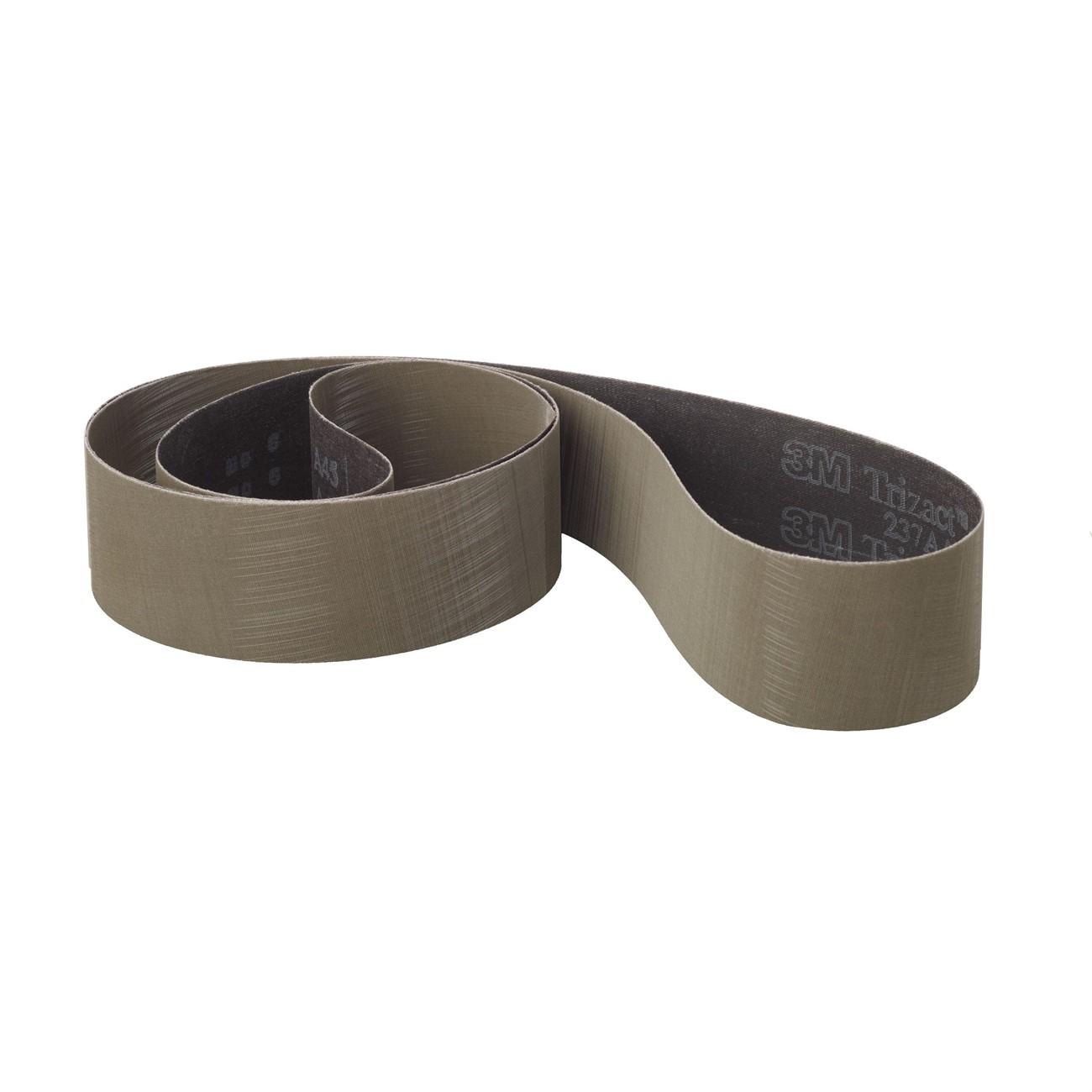

3M 7010365038 Abrasive Belt 132 Inch Ao Cloth

Product Description

The 3M 7010365038 is a Trizact 237AA coated abrasive belt designed for intermediate finishing and fine polishing applications. It uses 3M microreplication technology, where micron-graded aluminum oxide particles are formed into precisely shaped three-dimensional pyramids and bonded to an X-weight cloth backing. As the pyramids wear during use, fresh sharp mineral is continuously exposed. This self-renewing action delivers a consistent cut rate and predictable finish quality throughout the life of the belt. The cloth backing provides flexibility to conform to contoured workpiece surfaces. Fabricators, metal finishers, and robotic grinding cell operators use this belt where finish consistency and repeatability are critical.

This belt is suited for intermediate stock removal and fine polishing on metal surfaces prior to plating, buffing, or coating operations. The three-dimensional abrasive structure makes it well matched to automated and robotic finishing lines, where consistent finish quality from first contact to end of belt life is required. It is also used in manual and semi-automatic wide belt finishing operations on flat and contoured metal components.

Key Features

• Microreplication technology forms aluminum oxide into uniform three-dimensional pyramids for consistent cut and finish
• Self-sharpening pyramid structure continuously exposes fresh mineral as abrasive wears
• Runs cooler than conventional coated abrasives, reducing heat-related workpiece distortion
• X-weight cloth backing provides flexibility for conformance over contoured surfaces
• Produces finer finishes than conventional electrostatically coated abrasives of comparable grit
• Three-dimensional design delivers repeatable finishes in robotic and automated applications

Compatibility

Designed for use on wide belt finishing machines and robotic grinding systems that accept 132-inch by 4-inch abrasive belts. Typical applications include intermediate finishing and fine polishing of metal parts prior to plating or buffing.

Installation Notes

Installation should be performed by qualified finishing equipment operators following equipment manufacturer guidelines. Verify belt tracking, tension, and contact roll condition before running a new belt. Ensure the machine is fully powered down and de-energized before changing belts. Always confirm belt direction of travel matches the arrow marked on the belt splice if present.

Technical Specifications

• Belt Length: 132 inches
• Belt Width: 4 inches
• Abrasive Mineral: Aluminum Oxide
• Backing Material: X-Weight Cloth
• Abrasive Type: Trizact Microreplication
• Color: Gray
• Unit of Measure: Each
• Weight: 0.54 pounds

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010365038
