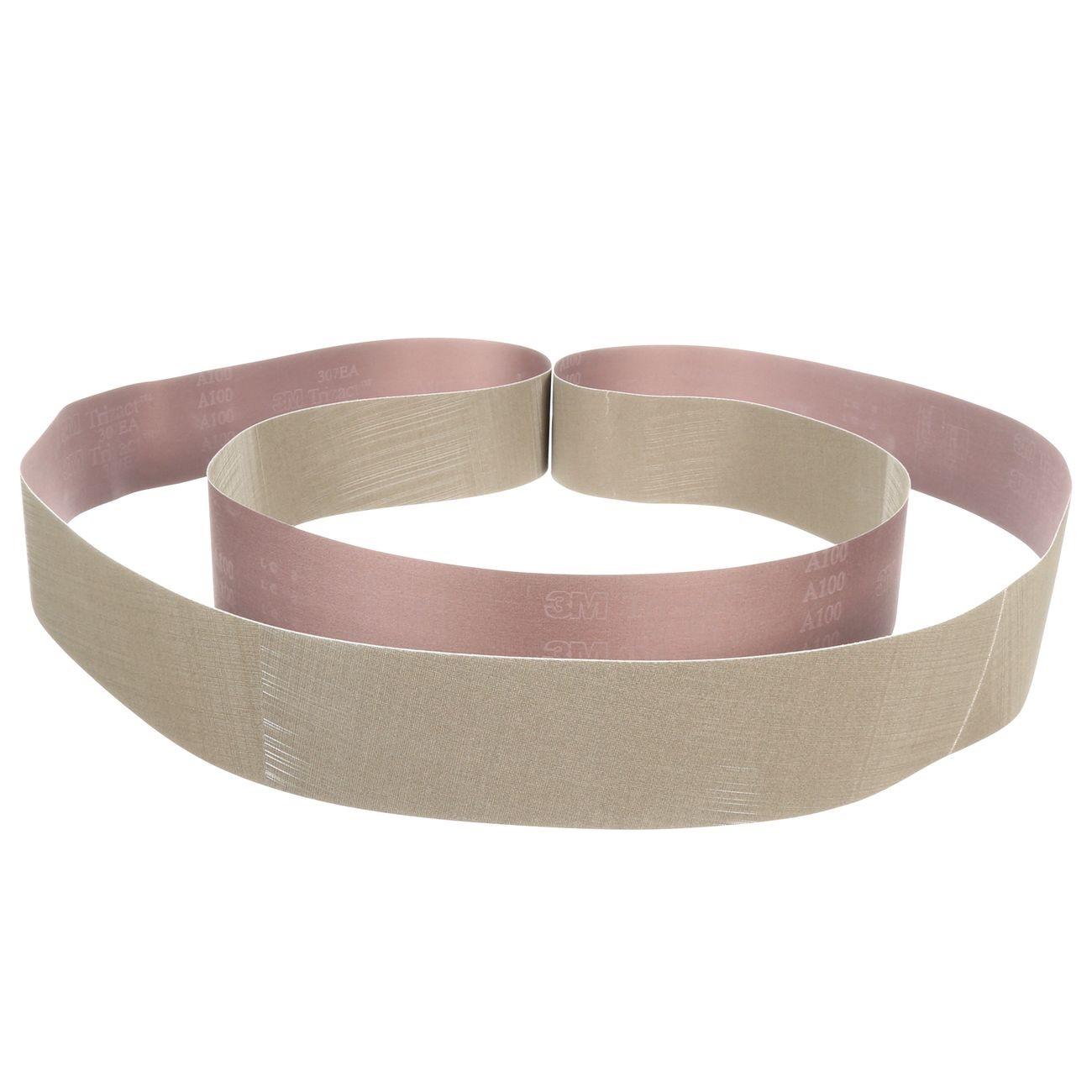

3M 7010365036 Trizact 307EA Abrasive Belt 15.5x3.5 in

Product Description

The 3M 7010365036 is a Trizact 307EA abrasive belt engineered for consistent intermediate finishing and fine polishing applications. It uses 3M microreplication technology, in which micron-graded aluminum oxide mineral is formed into uniform three-dimensional pyramids and bonded to a flexible rayon backing. As the pyramids wear during use, fresh sharp cutting edges are continuously exposed, delivering a predictable cut rate and a repeatable surface finish throughout the belt's service life. The belt measures 15.5 inches long by 3.5 inches wide and weighs 0.28 pounds. It is installed and operated by metalworking and finishing technicians in both manual and robotic grinding setups.

This belt is suited for intermediate and fine finishing stages on metal workpieces prior to plating, buffing, or final polishing. The flexible rayon backing conforms to contoured and irregular surfaces, making the belt effective on curved or profiled parts where consistent scratch pattern uniformity is critical. Its three-dimensional abrasive structure is particularly well-matched to robotic and automated finishing lines where process repeatability and finish consistency are required across high-volume production runs.

Key Features

• Microreplication technology forms aluminum oxide mineral into uniform pyramids for self-sharpening, consistent cut
• Continuously exposes fresh abrasive as pyramids wear, extending usable belt life
• Runs cooler than conventional coated abrasives, reducing heat-related workpiece distortion
• Flexible rayon backing conforms to contoured and profiled surfaces
• Produces finer finish results than conventional electrostatically coated abrasive belts
• Suited for robotic and automated applications requiring repeatable finish consistency

Compatibility

Designed for use on belt finishing machines accepting 15.5-inch by 3.5-inch abrasive belts; appropriate for metal finishing operations requiring intermediate to fine grit surface preparation prior to plating or buffing.

Installation Notes

Installation should be performed by a qualified finishing technician following the belt grinder or finishing machine manufacturer's belt-change procedure. Power down and lockout the machine before replacing the belt. Verify belt tracking and tension per machine specifications before returning the unit to service. Inspect the belt for tears or edge damage before each use.

Technical Specifications

• Abrasive Mineral: Aluminum Oxide
• Backing Material: Rayon
• Belt Length: 15.5 inches
• Belt Width: 3.5 inches
• Abrasive Grade: 307EA
• Weight: 0.28 pounds
• Color: Gray
• Unit of Measure: Each
• UPC: 00051111696019

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010365036
