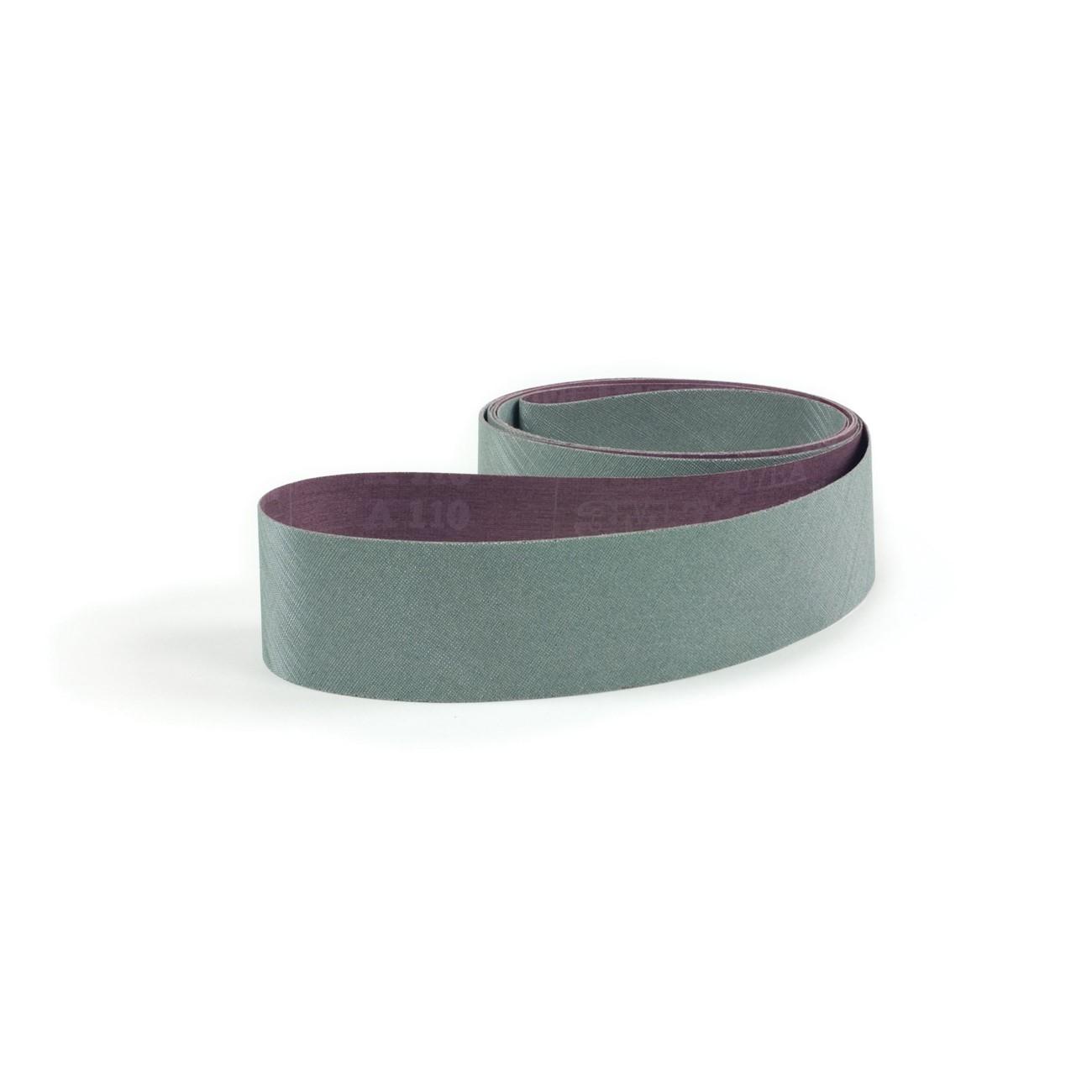

3M 7010365022 Trizact 407EA Belt 72x2 Inch Silicon Carbide

Product Description

The 3M 7010365022 is a Trizact 407EA cloth abrasive belt engineered for light-pressure dimensioning and finishing on metal substrates. The belt uses a silicon carbide abrasive mineral structured in a pyramid formation that wears down progressively, exposing fresh cutting surfaces throughout the life of the belt. A built-in grinding aid reduces heat generation during use, which lowers the risk of surface discoloration on heat-sensitive materials. At 72 inches long and 2 inches wide, it fits standard stroke and platen sander configurations used in precision metalworking and finishing operations.

This belt is designed for professionals working in aerospace fabrication, orthopedic implant manufacturing, surgical instrument production, and plating and polishing operations. It performs particularly well on titanium and other heat-sensitive alloys where temperature control is critical to maintaining part integrity. The structured abrasive construction supports consistent cut rates across the life of the belt, making it well suited for high-repeatability finishing workflows on flat and contoured surfaces.

Key Features

• Silicon carbide mineral in a structured pyramid format for progressive, consistent material removal
• Grinding aid reduces operating temperature during low-to-medium pressure applications
• Reduces risk of part discoloration on titanium and other heat-sensitive metals
• Compatible with stroke and platen sander setups
• Structured abrasive construction can extend belt life significantly versus conventional coated abrasives
• Available in grades A110, A90, A60, and A20 for various finishing stages

Compatibility

Designed for use with stroke sanders and platen sanders in aerospace, orthopedic implant, surgical instrument, and plating and polishing finishing applications on metal substrates including titanium.

Installation Notes

Installation should be performed by a qualified operator familiar with abrasive belt equipment. Before mounting, power down and lock out the sander per applicable machine guarding and OSHA lockout-tagout procedures. Verify belt tracking and tension per the sander manufacturer specifications before resuming operation. Inspect the belt for damage before each use and do not operate a torn or delaminated belt.

Technical Specifications

• Abrasive Mineral: Silicon Carbide
• Belt Length: 72 inches
• Belt Width: 2 inches
• Backing Type: Cloth
• Available Grades: A110, A90, A60, A20
• Application Pressure: Low to medium
• Weight: 0.17 pounds
• UOM: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010365022
