3M 7010365021 Abrasive Belt 148x2.37 Inch Ao Rayon

Product Description

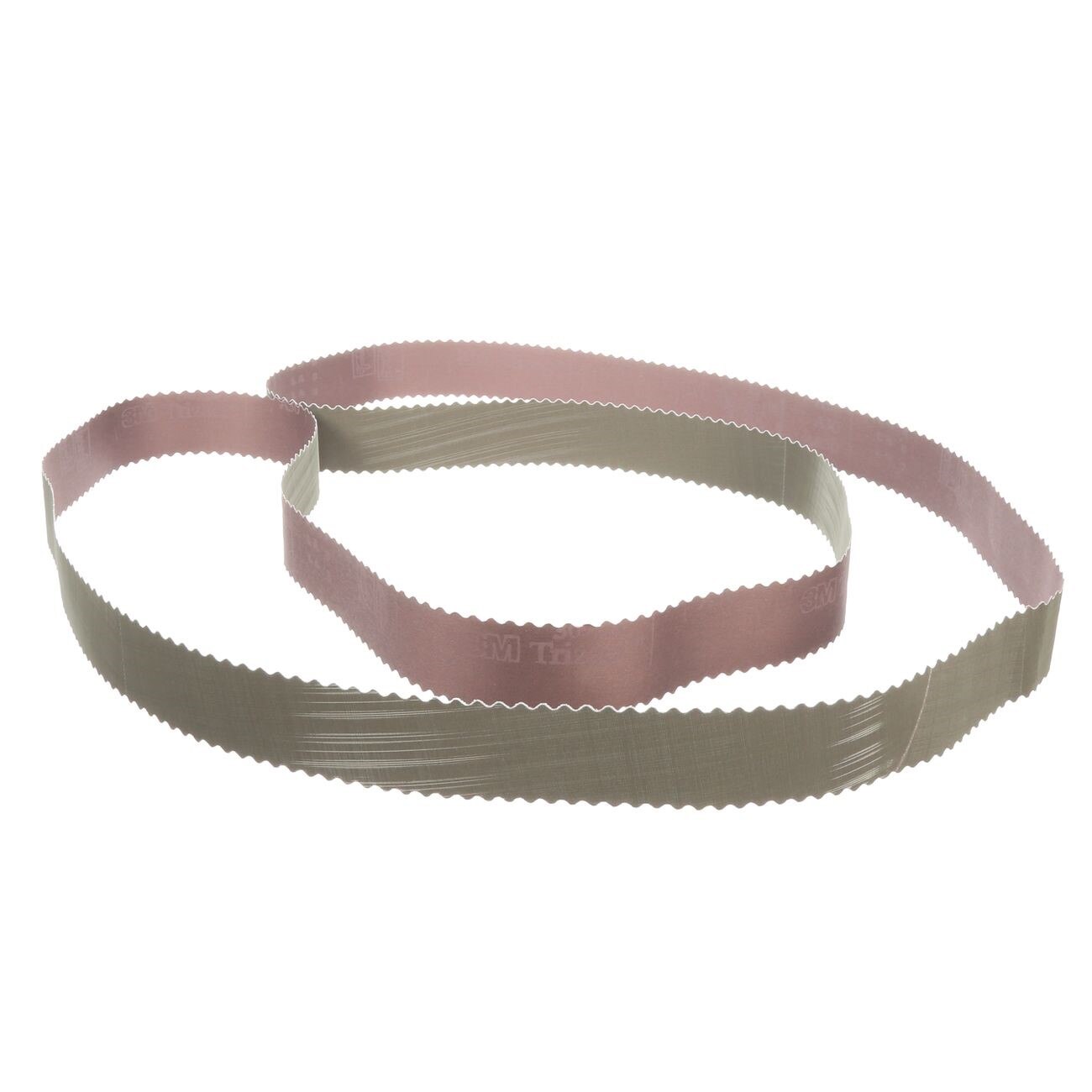

The 3M 7010365021 is a Trizact 307EA abrasive belt designed for intermediate finishing and fine polishing applications. It uses microreplication technology in which micron-graded aluminum oxide particles are formed into uniform three-dimensional pyramids and bonded to a flexible rayon cloth backing. As the abrasive pyramids wear during use, fresh, sharp mineral is continuously exposed. The result is a consistent cut rate and predictable finish quality throughout the life of the belt. At 148 inches long and 2.37 inches wide, this belt is sized for wide-contact belt finishing equipment common in automated and robotic finishing lines.

This belt is suited for intermediate stock removal and fine polishing on metal workpieces prior to plating, buffing, or other surface treatment processes. The flexible rayon backing conforms to contoured and irregular surfaces, making it useful for both flat and shaped part finishing. The three-dimensional abrasive structure is particularly well matched to robotic and automated applications where consistent, repeatable finishes are required across high part volumes.

Key Features

• Microreplication technology forms aluminum oxide into uniform pyramids for self-sharpening abrasive action
• Continuously exposes fresh mineral as pyramids wear, maintaining consistent cut throughout belt life
• Runs cooler than conventional coated abrasives, reducing heat-related workpiece damage
• Flexible rayon cloth backing conforms to contoured surfaces for even contact and finish consistency
• Produces finer finishes than conventional electrostatically coated abrasives
• Well suited for robotic and automated finishing lines requiring predictable, repeatable results

Compatibility

Designed for use on wide-contact belt finishing machines accepting belts measuring 148 inches in length and 2.37 inches in width. Ideal for intermediate finishing and pre-plate or pre-buff polishing of metal components.

Installation Notes

Belt installation should be performed with the machine fully de-energized and locked out per applicable OSHA lockout/tagout procedures. Verify belt tracking and tension according to the equipment manufacturer specifications before operation. Inspect the belt for damage or delamination prior to each use and replace if any defects are found.

Technical Specifications

• Abrasive Mineral: Aluminum Oxide
• Backing Material: Rayon Cloth
• Belt Length: 148 inches
• Belt Width: 2.37 inches
• Abrasive Construction: Microreplication (Trizact)
• Weight: 0.43 pounds
• UPC: 00051111690819

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010365021
