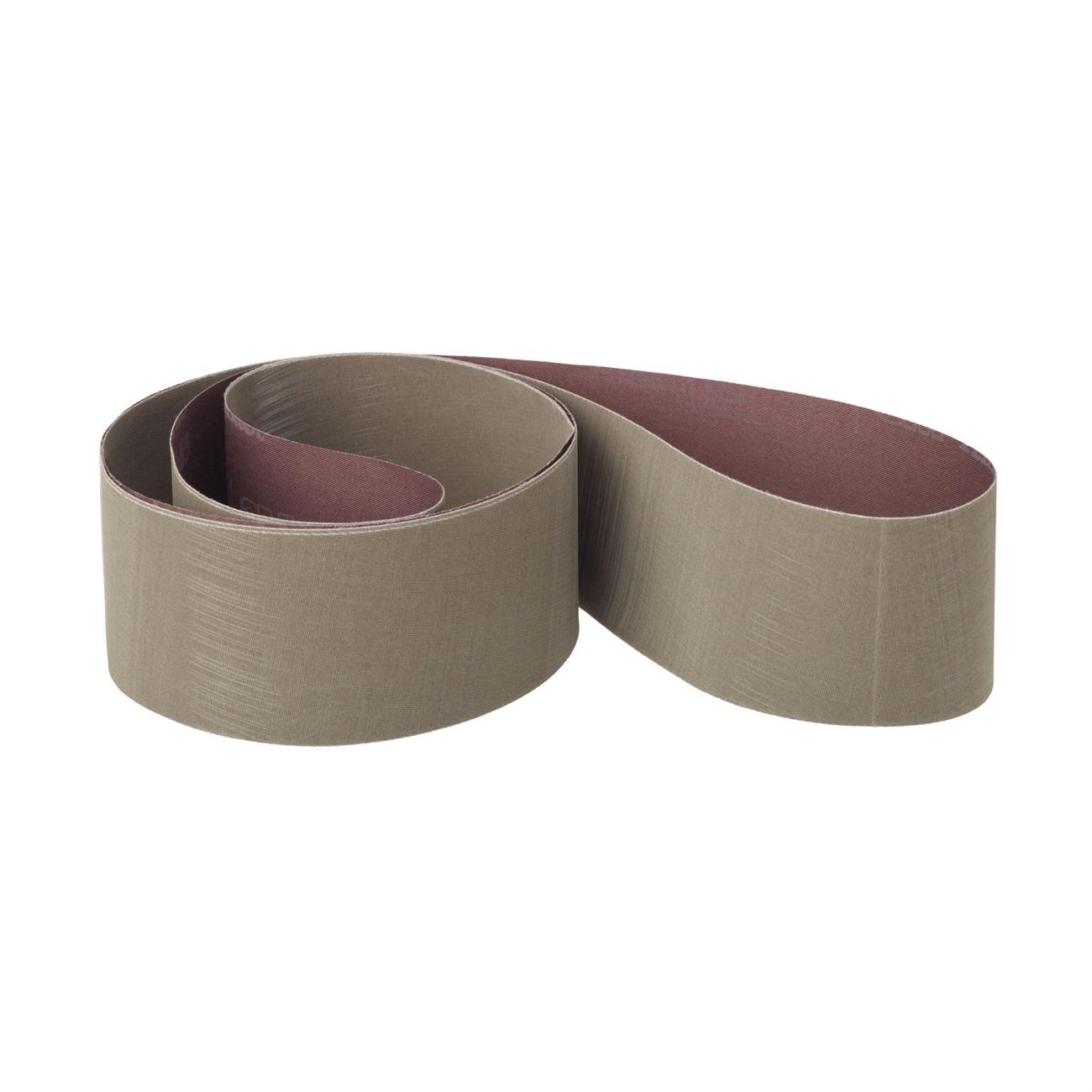

3M 7010365014 Trizact 307EA Abrasive Belt 118x4 Inch Ao

Product Description

The 3M 7010365014 is a Trizact 307EA abrasive belt designed for intermediate finishing and fine polishing applications in metalworking and fabrication environments. It measures 118 inches long by 4 inches wide and uses 3M microreplication technology, where micron-graded aluminum oxide particles are formed into three-dimensional pyramids bonded to a flexible rayon cloth backing. As the pyramids wear during use, fresh mineral is continuously exposed, delivering a consistent cut rate and a predictable, fine surface finish throughout the life of the belt. This belt is well suited for robotic and automated finishing lines as well as manual operations requiring repeatable results.

This belt is used in metal finishing operations where consistent scratch patterns and fine surface finishes are required prior to plating, buffing, or coating. The flexible rayon cloth backing conforms to contoured and irregular surfaces, making it applicable in both flat stock and shaped workpiece finishing. Typical installers and users include metalworking fabricators, surface finishing technicians, and industrial maintenance teams operating wide belt sanders or automated finishing equipment.

Key Features

• Microreplication technology forms aluminum oxide into self-sharpening pyramids that expose fresh mineral as they wear
• Runs cooler than conventional abrasives, reducing heat buildup on workpiece surfaces
• Flexible rayon cloth backing conforms to contoured and curved surfaces
• Three-dimensional abrasive structure produces consistent finishes in robotic and automated applications
• Produces finer finishes than conventionally electrostatically coated abrasive belts
• Suited for intermediate finishing and fine polishing prior to plating or buffing

Compatibility

Designed for use on wide belt sanders and automated finishing equipment accepting belts measuring 118 inches long by 4 inches wide. Suitable for metal finishing operations requiring fine, consistent surface preparation prior to plating or buffing.

Installation Notes

Installation should be performed by a qualified finishing technician familiar with belt sander equipment. Disengage and lock out the machine from its power source before installing or replacing the belt. Verify belt tracking and tension settings before resuming operation in accordance with the equipment manufacturer's guidelines. Inspect the belt for cracks, fraying, or delamination before each use and do not operate a damaged belt.

Technical Specifications

• Belt Length: 118 inches
• Belt Width: 4 inches
• Abrasive Mineral: Aluminum Oxide (AO)
• Backing Material: Rayon Cloth
• Abrasive Structure: Microreplication (3D Pyramid)
• Color: Gray
• Weight: 0.48 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 50
• UPC: 00051111690659

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010365014
