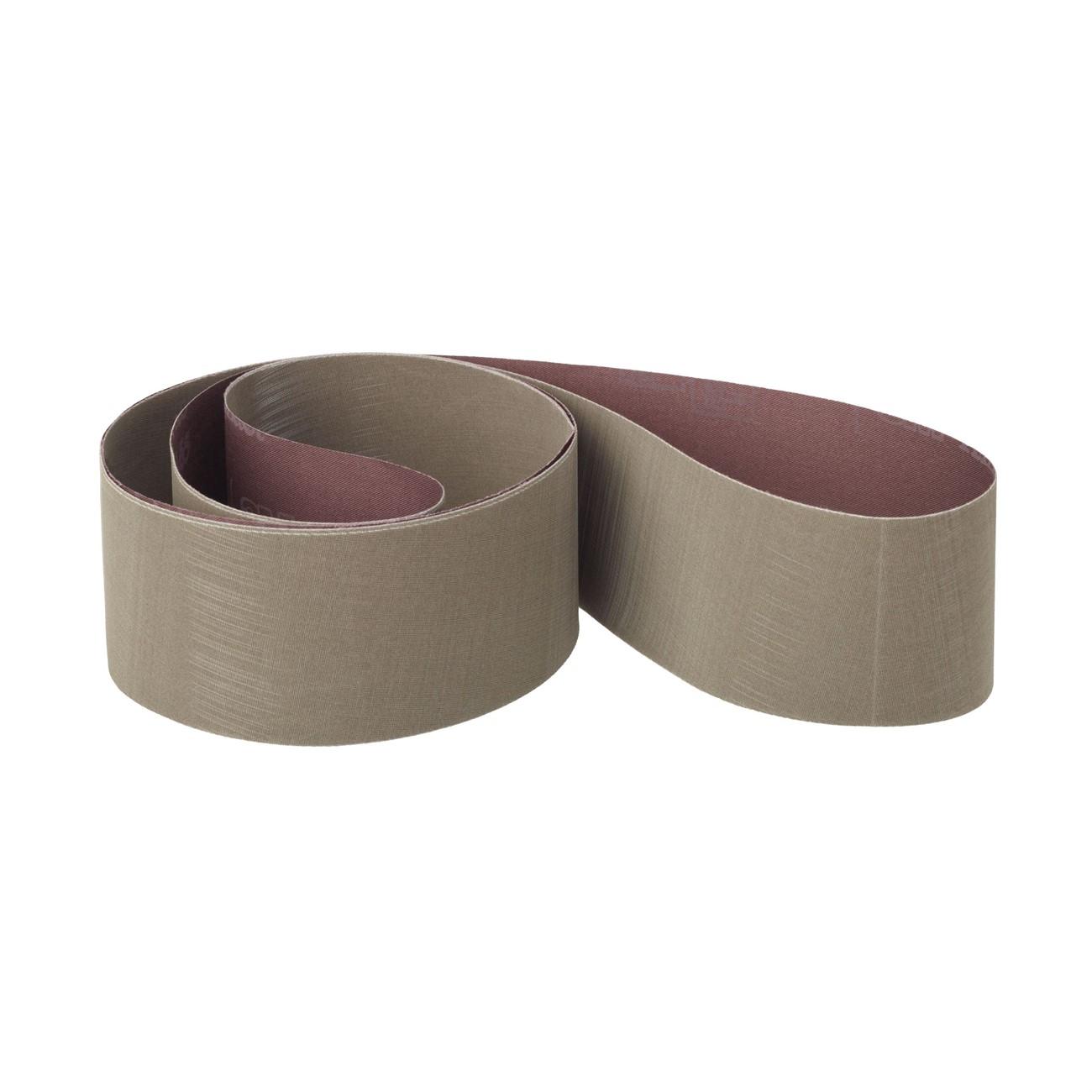

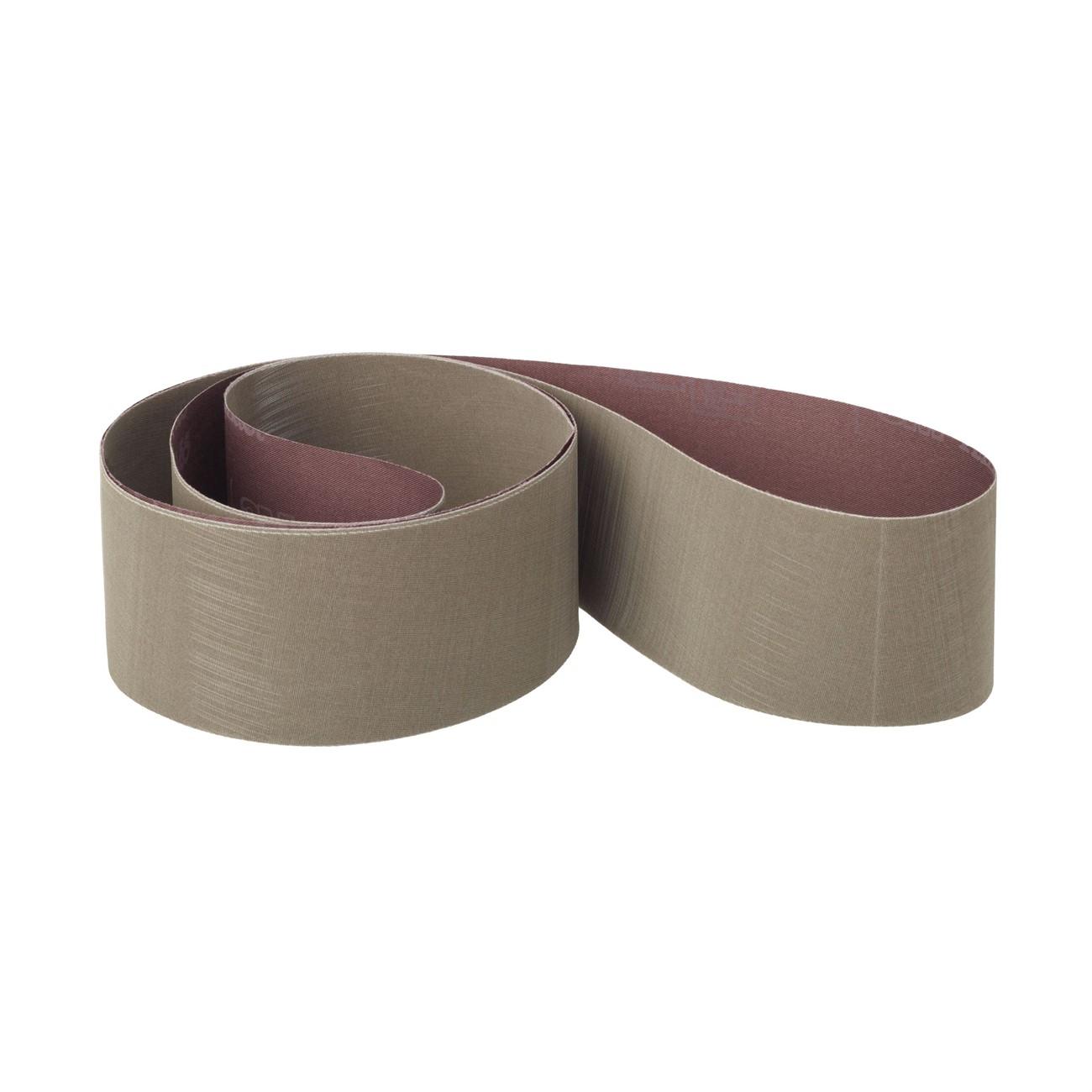

3M 7010365012 Abrasive Belt 90x4 Inch Ao Rayon Cloth

Product Description

The 3M 7010365012 is a Trizact 307EA coated abrasive belt built on a flexible rayon cloth backing with aluminum oxide abrasive mineral formed into three-dimensional microreplication pyramids. As the pyramids wear during use, fresh sharp cutting edges are continuously exposed, delivering a consistent cut rate and a predictable fine finish from start to finish. The belt measures 90 inches in length and 4 inches in width, weighing 0.31 pounds. It is designed for intermediate finishing and fine polishing applications in industrial and metalworking environments where surface consistency is critical prior to plating or buffing.

This belt is suited for use in robotic and automated finishing lines as well as manual bench and stroke sander operations. The flexible rayon backing conforms to contoured and flat surfaces, making it effective for consistent finishing across complex part geometries. The three-dimensional abrasive structure allows the belt to run cooler than conventional coated abrasives, reducing heat buildup on heat-sensitive workpieces. It is commonly installed and operated by metalworking fabricators, aerospace finishing technicians, and industrial maintenance professionals working with ferrous and non-ferrous metals.

Key Features

• Microreplication technology forms aluminum oxide mineral into self-sharpening pyramids for consistent cut and finish
• Self-sharpening pyramid structure runs cooler than conventional abrasives, reducing heat-related workpiece damage
• Flexible rayon cloth backing conforms to contoured surfaces for uniform material removal
• Three-dimensional abrasive design produces repeatable, predictable finishes in robotic and automated applications
• Produces finer finishes than conventional electrostatically coated abrasive belts
• Ideal for intermediate finishing and fine polishing prior to plating or buffing operations

Compatibility

Designed for use on belt sanders and stroke sanders accepting 90-inch by 4-inch abrasive belts in industrial metalworking, fabrication, and automated finishing applications.

Installation Notes

Installation should be performed by a qualified operator following the machine manufacturer's belt tracking and tensioning guidelines. Confirm the sander is fully de-energized and locked out before mounting or removing the belt. Verify belt direction arrows align with the machine's drive direction before powering on. Inspect the contact wheel or platen for wear or debris that could cause uneven pressure or premature belt failure.

Technical Specifications

• Belt Length: 90 inches
• Belt Width: 4 inches
• Abrasive Mineral: Aluminum Oxide
• Backing Material: Rayon Cloth
• Abrasive Structure: Microreplication (Trizact Pyramid)
• Color: Gray
• Weight: 0.31 pounds
• UOM: Each
• UPC: 00051111690604

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010365012
