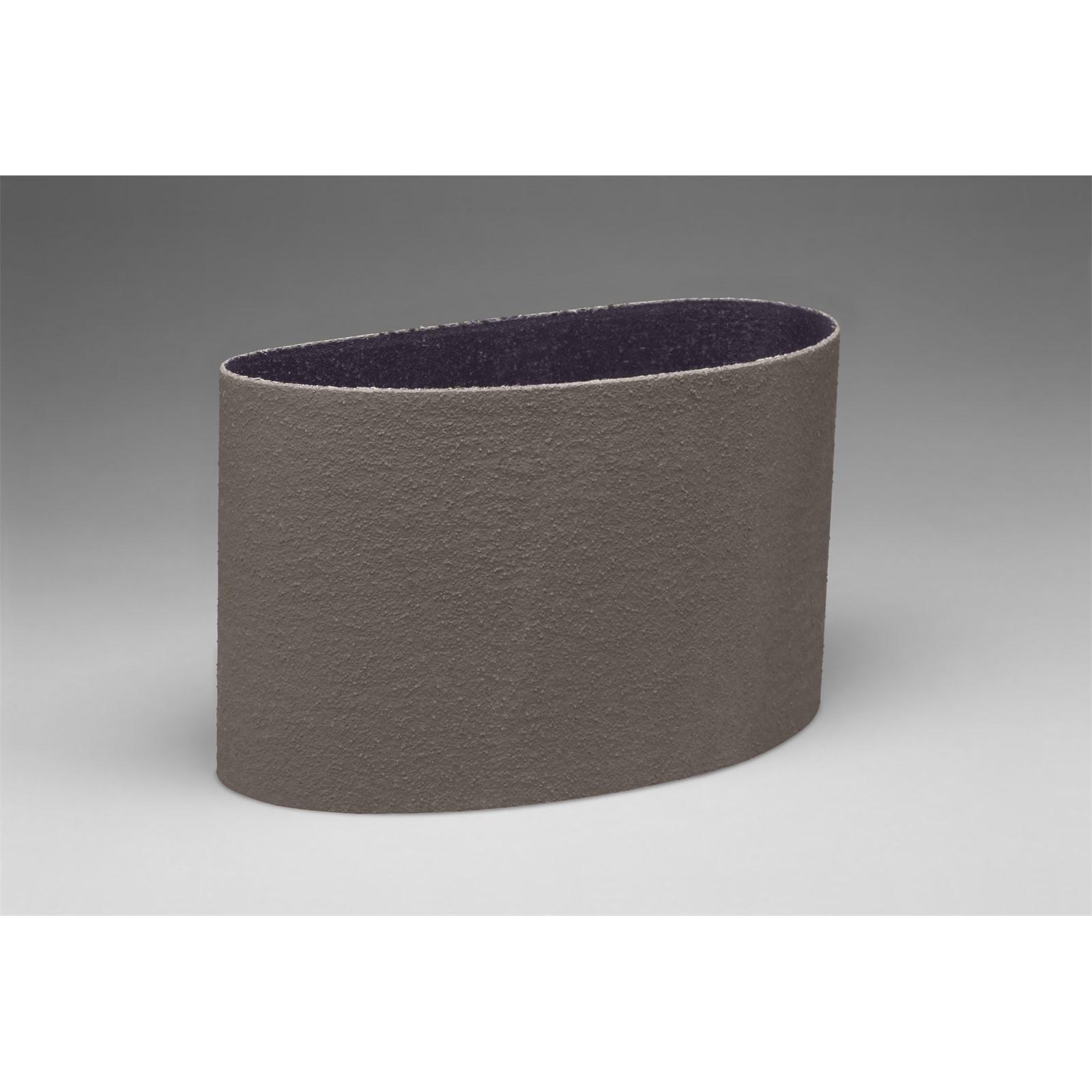

3M 7010365009 Abrasive Belt 48x6 Inch Aluminum Oxide

Product Description

The 3M 7010365009 is a Trizact 237AA coated abrasive belt designed for intermediate finishing and fine polishing applications in industrial and manufacturing environments. It uses 3M microreplication technology in which micron-graded aluminum oxide mineral is formed into precise three-dimensional pyramids and bonded to an X-weight cloth backing. As the abrasive pyramids wear during use, fresh, sharp cutting edges are continuously exposed. The result is a consistent cut rate and a predictable, fine surface finish throughout the life of the belt. The belt measures 48 inches in length and 6 inches in width and weighs approximately 0.41 pounds.

This belt is suited for robotic and automated finishing lines as well as manual grinding operations where a repeatable, fine finish is required. Common applications include intermediate stock removal prior to plating, buffing, or surface coating on metal workpieces. The flexible cloth backing allows the belt to conform to contoured surfaces, making it useful on both flat and irregular part geometries. It is typically used in metalworking shops, fabrication facilities, and production environments where consistent finish quality is critical.

Key Features

• Microreplication technology forms aluminum oxide into self-sharpening abrasive pyramids for consistent cut throughout belt life
• Continuously exposes fresh mineral as pyramids wear, running cooler than conventional coated abrasives
• X-weight cloth backing provides flexibility for finishing over contoured and irregular surfaces
• Three-dimensional abrasive structure delivers repeatable, fine finishes in robotic and automated applications
• Engineered for intermediate finishing and fine polishing prior to plating or buffing
• Produces finer surface finishes than conventional electrostatically coated abrasive belts

Compatibility

Designed for use on belt grinders and finishing machines that accept 48-inch by 6-inch abrasive belts. Suitable for metalworking applications requiring fine surface finish preparation prior to plating, buffing, or coating.

Installation Notes

Installation should be performed by qualified personnel familiar with abrasive belt machinery. Ensure the grinder or finishing machine is fully powered down and locked out before changing belts. Verify belt tracking and tension according to the machine manufacturer's guidelines before resuming operation. Always wear appropriate personal protective equipment, including eye protection and gloves, when handling and installing abrasive belts.

Technical Specifications

• Abrasive Mineral: Aluminum Oxide
• Backing Material: X-Weight Cloth
• Color: Gray
• Belt Length: 48 inches
• Belt Width: 6 inches
• Weight: 0.41 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 20
• UPC: 00051111690499

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010365009
