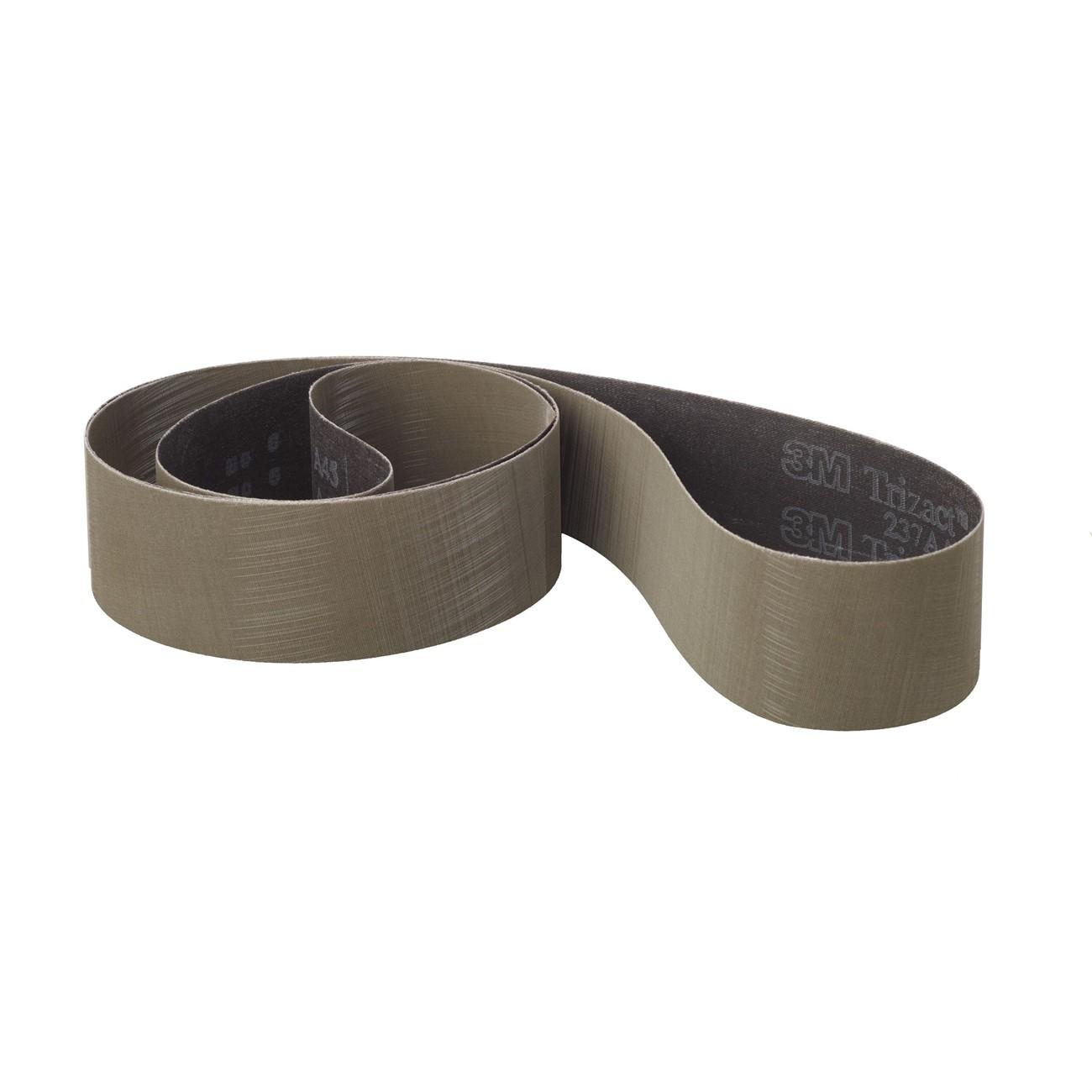

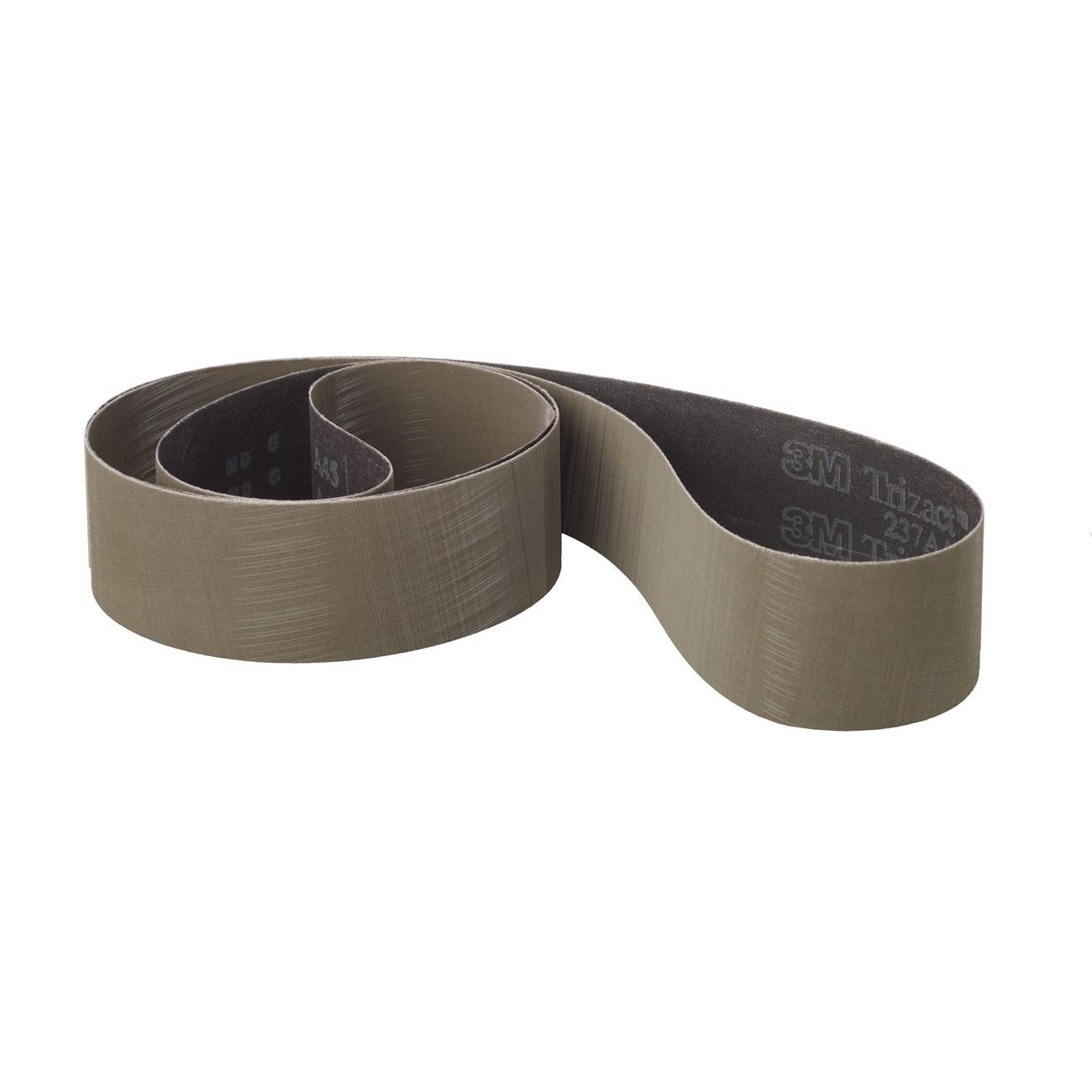

3M 7010365008 Abrasive Belt 60x3 Inch Aluminum Oxide

Product Description

The 3M 7010365008 is a Trizact 237AA coated abrasive belt designed for intermediate finishing and fine polishing applications in industrial and manufacturing environments. It uses 3M microreplication technology, where micron-graded aluminum oxide particles are formed into three-dimensional pyramids and bonded to an X-weight cloth backing. As the abrasive pyramids wear down during use, fresh, sharp mineral is continuously exposed at the cutting surface. The result is a consistent cut rate and a predictable, fine finish throughout the belt's service life. The belt measures 60 inches in length and 3 inches in width and weighs 0.25 pounds.

This belt is suited for use in robotic and automated grinding applications where finish consistency and repeatability are critical. It is also used in manual belt finishing operations on metal workpieces prior to plating, buffing, or final surface preparation. The flexible cloth backing allows the belt to conform to contoured surfaces, making it appropriate for parts with complex geometry. Typical industries include aerospace component finishing, automotive parts manufacturing, and precision metalworking where surface finish specifications must be met prior to downstream processing.

Key Features

• Microreplication technology forms aluminum oxide into self-sharpening abrasive pyramids for consistent cut throughout belt life
• Three-dimensional pyramid structure runs cooler than conventional abrasives, reducing heat buildup at the workpiece
• X-weight cloth backing provides flexibility for finishing over contoured and complex surfaces
• Produces finer, more uniform finishes than conventional electrostatically coated abrasive belts
• Designed for robotic and automated applications requiring repeatable, predictable surface finishes
• Suited for intermediate finishing and fine polishing prior to plating or buffing operations

Compatibility

Designed for use on belt finishing machines and robotic grinding systems that accept 60-inch by 3-inch abrasive belts. Intended for ferrous and non-ferrous metal workpieces requiring fine surface finishing prior to plating, buffing, or coating.

Installation Notes

Install this belt on a properly tensioned belt grinder or finishing machine rated for the belt dimensions. Before mounting, power down and lock out the machine per OSHA lockout/tagout procedures. Verify belt tracking and tension per the machine manufacturer's specifications before resuming operation. Inspect the belt for tears or edge damage before each use and replace if any defects are found.

Technical Specifications

• Belt Length: 60 inches
• Belt Width: 3 inches
• Abrasive Mineral: Aluminum Oxide
• Backing Material: X-Weight Cloth
• Color: Gray
• Weight: 0.25 pounds
• Unit of Measure: Each
• UPC: 00051111690451

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010365008
