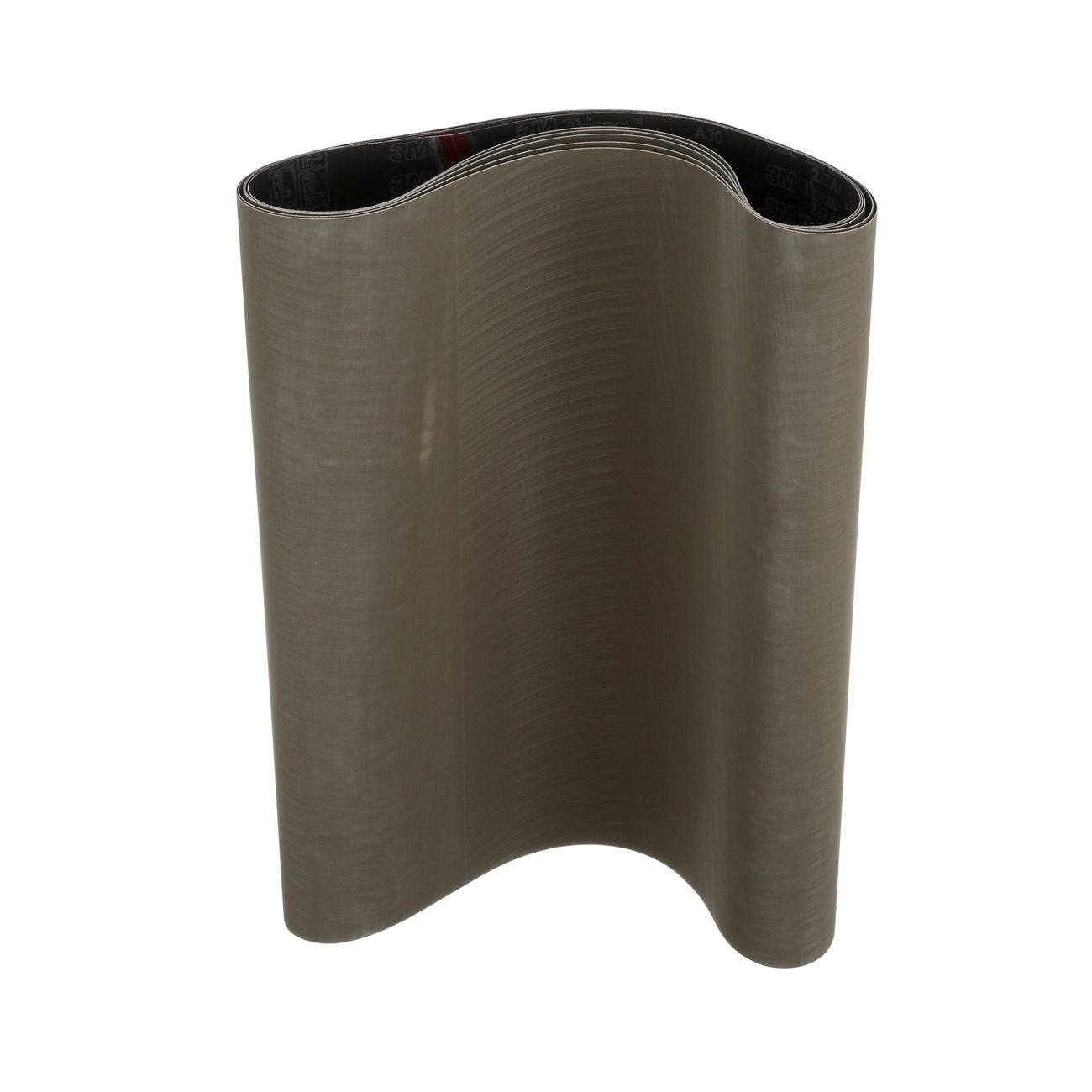

3M 7010365003 Abrasive Belt 60x25 Inch Ao Cloth Gray

Product Description

The 3M 7010365003 is a Trizact 237AA abrasive belt designed for intermediate finishing and fine polishing applications. It uses 3M microreplication technology, where micron-graded aluminum oxide particles are formed into precisely shaped pyramidal structures and bonded to an X-weight cloth backing. As the pyramids wear during use, fresh abrasive mineral is continuously exposed, delivering a consistent cut rate and a predictable finish throughout the life of the belt. The belt measures 60 inches in length and 25 inches in width and is suited for machine-driven grinding and finishing operations in industrial and manufacturing environments.

This belt is used in intermediate finishing and fine polishing workflows, particularly prior to plating or buffing operations. Its flexible cloth backing allows it to conform to contoured surfaces, making it suitable for both flat and shaped workpieces. The three-dimensional abrasive structure supports consistent, repeatable finishes in robotic and automated finishing applications. It is well-suited for metalworking shops, fabrication facilities, and production environments where surface finish consistency is critical.

Key Features

• Microreplication technology forms aluminum oxide into self-sharpening pyramidal abrasive structures
• Fresh mineral is continuously exposed as pyramids wear, maintaining consistent cut and finish
• Runs cooler than conventional abrasives, reducing heat buildup at the workpiece
• Flexible X-weight cloth backing conforms to contoured and shaped surfaces
• Three-dimensional design produces repeatable finishes in robotic finishing applications
• Produces finer surface finishes than conventional electrostatically coated abrasive belts

Compatibility

Designed for use on belt grinding and finishing machines that accept 60-inch by 25-inch abrasive belts. Suited for metalworking applications requiring intermediate finishing or fine polishing prior to plating or buffing.

Installation Notes

Installation of abrasive belts should be performed by trained machine operators following the equipment manufacturer's guidelines. Ensure the machine is fully powered down and de-energized before changing belts. Verify belt tracking and tension according to the grinder or finishing machine specifications before resuming operation. Always use appropriate personal protective equipment, including eye protection and gloves, when handling and mounting abrasive belts.

Technical Specifications

• Abrasive Mineral: Aluminum Oxide
• Backing Material: X-Weight Cloth
• Color: Gray
• Belt Length: 60 inches
• Belt Width: 25 inches
• Weight: 2.32 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 5

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010365003
