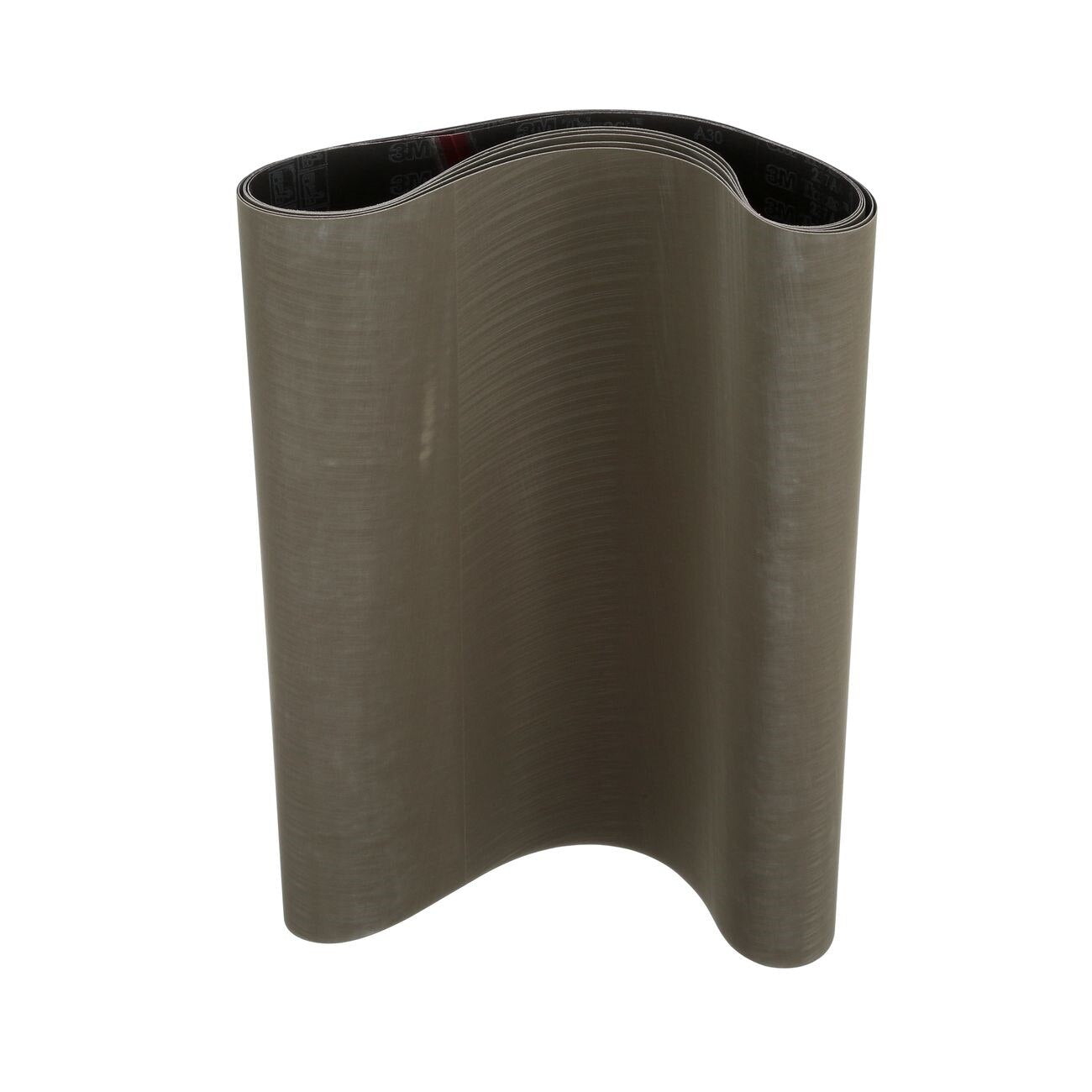

3M 7010364858 Abrasive Belt 98x12 Inch Ao Cloth Gray

Product Description

The 3M 7010364858 is a Trizact 237AA coated abrasive belt designed for intermediate finishing and fine polishing applications. It uses 3M microreplication technology in which micron-graded aluminum oxide particles are formed into structured pyramids and bonded to an X-weight cloth backing. As the pyramids wear during use, fresh sharp mineral is continuously exposed, delivering a consistent cut rate and predictable finish throughout the life of the belt. At 98 inches long and 12 inches wide, this belt is suited for wide-belt machine applications in metal fabrication, surface prep before plating, and pre-buff polishing operations.

This belt is intended for use on metal workpieces where a fine, controlled surface finish is required prior to plating, buffing, or final inspection. The flexible cloth backing conforms to contoured surfaces, making it suitable for both flat stock and profile work. The three-dimensional abrasive structure produces repeatable finish results, which is especially valuable in robotic and automated grinding or finishing lines where consistency from belt to belt is critical. It is installed and used by metal finishing technicians, fabrication shop operators, and automated line maintenance personnel.

Key Features

• Microreplication technology forms aluminum oxide into structured pyramids that self-sharpen as they wear
• Runs cooler than conventional abrasives, reducing heat buildup on workpiece surfaces
• Flexible X-weight cloth backing conforms to contours for consistent finish quality
• Three-dimensional abrasive design maintains uniform finishes throughout belt life, ideal for robotic applications
• Produces finer finishes than conventional electrostatically coated abrasive belts
• Suited for intermediate finishing and fine polishing prior to plating or buffing

Compatibility

Designed for use on wide-belt finishing machines that accept 98-inch by 12-inch abrasive belts. Suitable for metal finishing applications including pre-plate and pre-buff surface preparation.

Installation Notes

Install on a belt finishing machine rated for the belt dimensions before powering on the unit. Ensure the machine is fully de-energized and locked out before mounting or removing the belt. Verify belt tracking and tension per the machine manufacturer's guidelines before resuming operation. Wear appropriate PPE including eye protection and gloves when handling and operating abrasive belts.

Technical Specifications

• Abrasive Mineral: Aluminum Oxide (AO)
• Backing Material: X-Weight Cloth
• Color: Gray
• Belt Length: 98 inches
• Belt Width: 12 inches
• Weight: 1.46 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 10
• UPC: 00051111669433

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010364858
