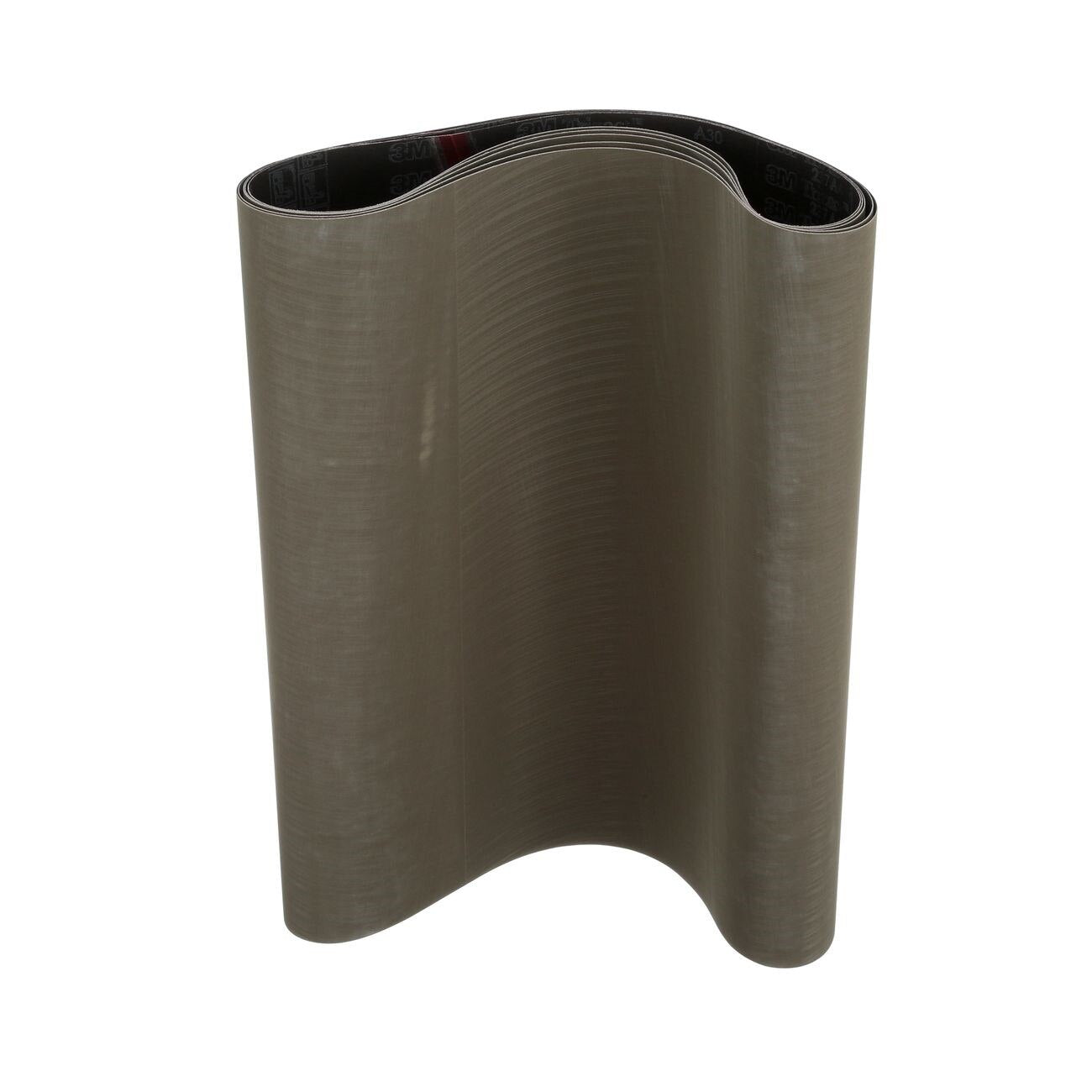

3M 7010364856 Abrasive Belt 126x26 Inch Ao Cloth

Product Description

The 3M 7010364856 is a Trizact 237AA coated abrasive belt designed for intermediate finishing and fine polishing applications in industrial and manufacturing environments. It uses 3M microreplication technology in which micron-graded aluminum oxide particles are formed into three-dimensional pyramids and bonded to an X-weight cloth backing. As the abrasive pyramids wear down during use, fresh sharp mineral is continuously exposed, delivering a consistent cut rate and a predictable fine finish throughout the belt's service life. The belt measures 126 inches in length and 26 inches in width and weighs approximately 4 pounds.

This belt is suited for automated and robotic grinding and finishing lines where finish consistency from first pass to last is critical. It performs well in applications requiring intermediate stock removal followed by fine surface refinement prior to plating, buffing, or coating. The flexible cloth backing conforms to contoured surfaces, making it useful on curved workpieces as well as flat stock. Typical users include metal fabricators, aerospace component finishers, and industrial production shops running wide-belt or drum-type abrasive machinery.

Key Features

• Microreplication technology forms aluminum oxide into self-sharpening abrasive pyramids that expose fresh mineral as they wear
• Consistent cut rate and finish quality throughout abrasive life, well-suited for robotic and automated applications
• Runs cooler than conventional abrasives, reducing heat-related workpiece distortion
• Flexible X-weight cloth backing conforms to contoured and flat surfaces
• Produces finer finishes than conventional electrostatically coated abrasive products
• Designed for intermediate finishing and fine polishing prior to plating or buffing

Compatibility

Designed for use on wide-belt and drum-type abrasive machinery that accepts belts measuring 126 inches in length and 26 inches in width. Suitable for metal substrates requiring controlled surface finish prior to secondary operations.

Installation Notes

Belt installation and tensioning should be performed by qualified machine operators following the equipment manufacturer's guidelines. Power down and lock out the machine before mounting or removing the belt. Verify belt tracking and tension at startup before engaging the workpiece. Inspect the belt for tears or delamination before each use and replace immediately if damage is found.

Technical Specifications

• Belt Length: 126 inches
• Belt Width: 26 inches
• Abrasive Mineral: Aluminum Oxide
• Backing Material: X-Weight Cloth
• Color: Gray
• Weight: 4.01 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 5

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010364856
