3M 7010363830 Cartridge Roll P240 X-weight Cloth

Product Description

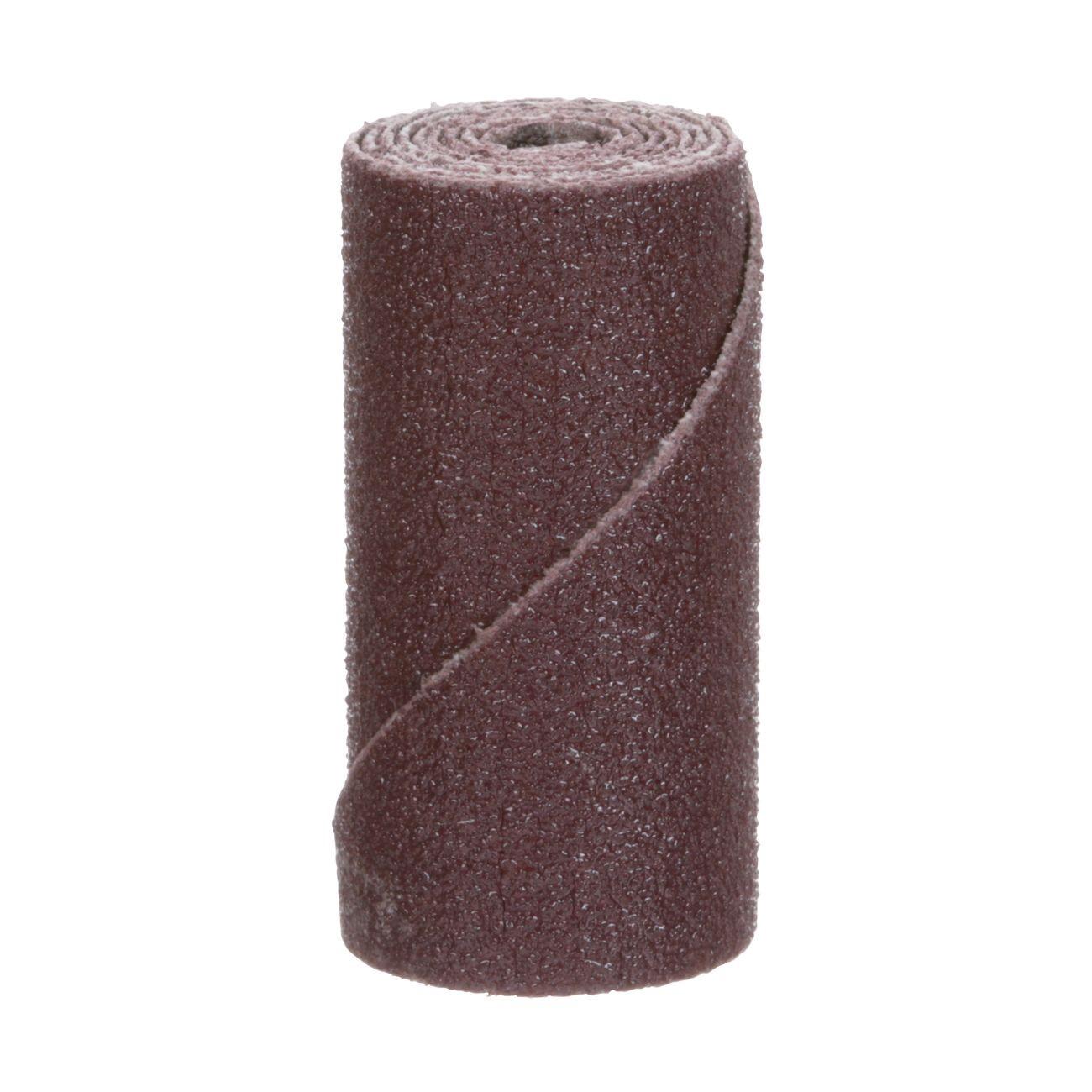

The 3M 7010363830 is an aluminum oxide abrasive cartridge roll built on an X-weight cloth backing for durability in demanding grinding and finishing applications. Resin bonded construction provides heat resistance during extended use, making it well suited for high-friction stock removal and blending operations. The roll measures 0.5 inches wide by 1.5 inches long with a 0.125-inch arbor hole and carries a P240 grit rating for fine finishing work. Sold by the roll, with a minimum order quantity of 100 rolls. This product is appropriate for trade and industrial users working with metal fabrication, weld blending, or surface preparation tasks.

Cartridge rolls in this size and grit range are commonly used in die grinders and mandrel-mounted rotary tools for internal bore finishing, contoured surface work, and edge blending. The compact 0.5 inches by 1.5 inches format makes this roll effective in tight access areas where larger abrasive formats cannot reach. Typical applications include deburring, light stock removal, and surface conditioning on ferrous and non-ferrous metals in both shop and field environments.

Key Features

• Aluminum oxide abrasive grain for consistent cut rate on metal surfaces
• X-weight cloth backing provides added strength and tear resistance under load
• Resin bond construction improves heat resistance during prolonged use
• P240 grit for fine finishing and surface blending
• Compact 0.5 inches x 1.5 inches x 0.125 inches format for restricted-access areas

Compatibility

Designed for use with standard mandrel-mounted die grinders and rotary tools that accept 0.125-inch arbor cartridge rolls.

Installation Notes

Cartridge rolls are installed and removed by qualified tradespeople or machinists using an appropriate mandrel sized to the arbor diameter. Ensure the tool is fully powered down and unplugged before mounting or removing the roll. Do not exceed the maximum RPM rating of the abrasive or the tool. Inspect the roll for damage before each use and replace if tearing, separation, or unusual wear is observed.

Technical Specifications

• Abrasive Material: Aluminum Oxide
• Backing Type: X-Weight Cloth
• Bond Type: Resin
• Grit: P240
• Width: 0.5 inches
• Length: 1.5 inches
• Arbor Diameter: 0.125 inches
• Unit of Measure: Roll
• Minimum Order Quantity: 100
• UPC: 00051144970612

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010363830
