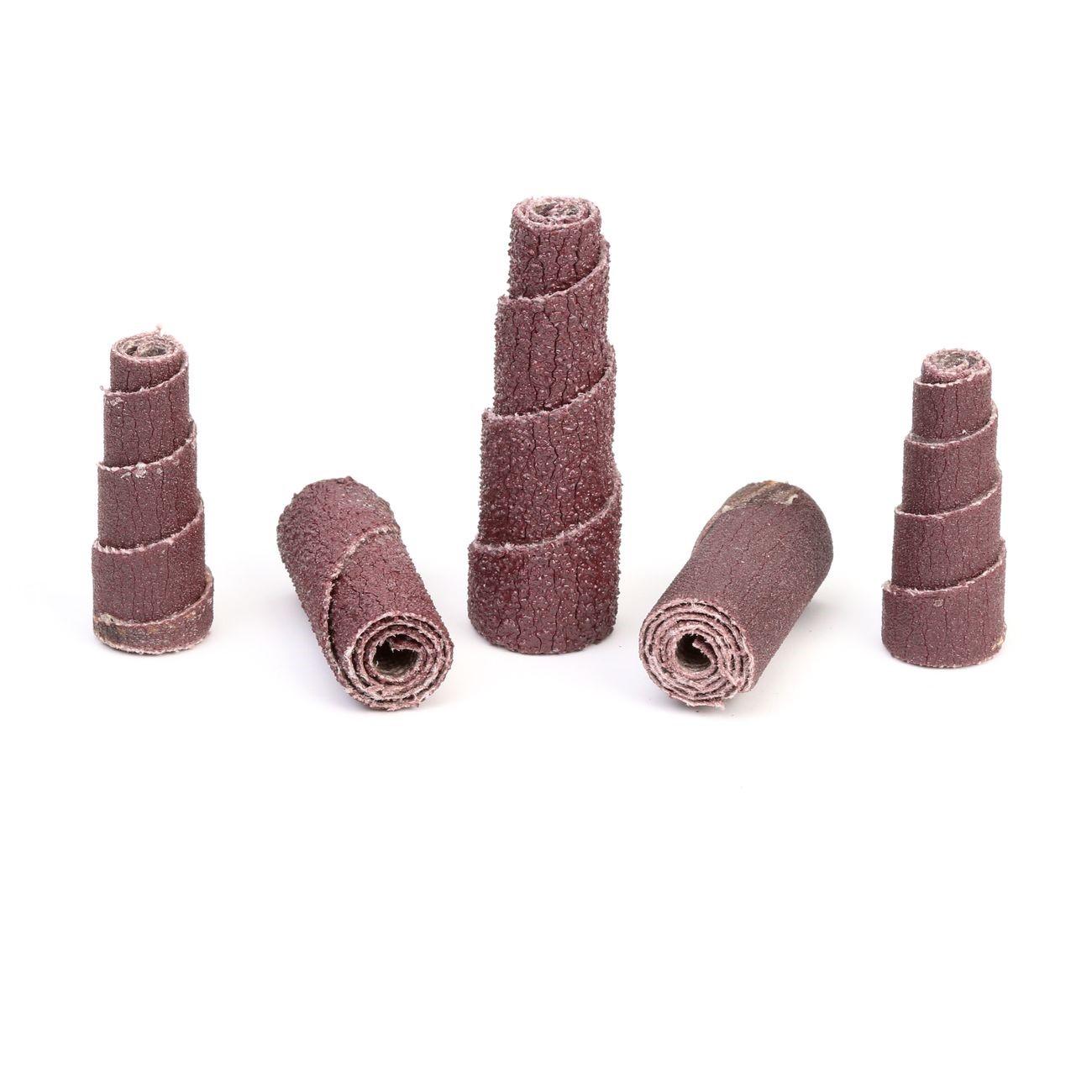

3M 7010363826 Cartridge Roll 341D P150 3/8x2-1/2x1/8 in

Product Description

The 3M 7010363826 is a full tapered aluminum oxide cartridge roll designed for precision grinding, deburring, and surface blending on metal and other hard materials. Built on an X-weight cloth backing, it offers durability under heavy-pressure applications where a lighter backing would break down prematurely. The resin bond construction improves heat resistance, extending roll life during sustained use. At a P150 grit rating, this roll delivers a medium-fine cut suitable for finishing passes and light stock removal. Dimensions are 3/8 inches in diameter by 2-1/2 inches in length with a 1/8 inch mandrel bore. Sold per roll with a minimum order quantity of 100 rolls.

This cartridge roll fits inline and right-angle die grinders used in metalworking, fabrication, aerospace, and maintenance repair applications. The full tapered profile allows the roll to conform slightly to contoured or irregular surfaces, making it well suited for port work, weld blending, and internal radius finishing. Industrial maintenance technicians and fabrication professionals are the primary installers and users of this abrasive consumable.

Key Features

• Aluminum oxide grain for consistent cut on ferrous and non-ferrous metals
• X-weight cloth backing withstands high-pressure and high-speed operation
• Resin bond construction provides heat resistance during extended use
• P150 grit delivers medium-fine finishing and light stock removal
• Full tapered geometry conforms to contoured and irregular surfaces
• 1/8 inch mandrel bore fits standard die grinder mandrels

Compatibility

Designed for use on standard 1/8 inch mandrels compatible with inline and right-angle die grinders used in general metalworking and fabrication applications.

Installation Notes

This abrasive roll is installed by a fabricator or maintenance technician onto a compatible die grinder mandrel. Ensure the mandrel is rated for the operating RPM of the grinder before use. Inspect the roll for damage before mounting and do not exceed the maximum RPM rating of the abrasive. Power down and disconnect the grinder from its air or electrical supply before changing rolls.

Technical Specifications

• Abrasive Material: Aluminum Oxide
• Backing Weight: X-Weight Cloth
• Bond Type: Resin
• Grit: P150
• Diameter: 3/8 inches
• Length: 2-1/2 inches
• Mandrel Bore: 1/8 inches
• Profile: Full Tapered
• Unit of Measure: Roll
• Minimum Order Quantity: 100
• UPC: 00051141204215

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010363826
