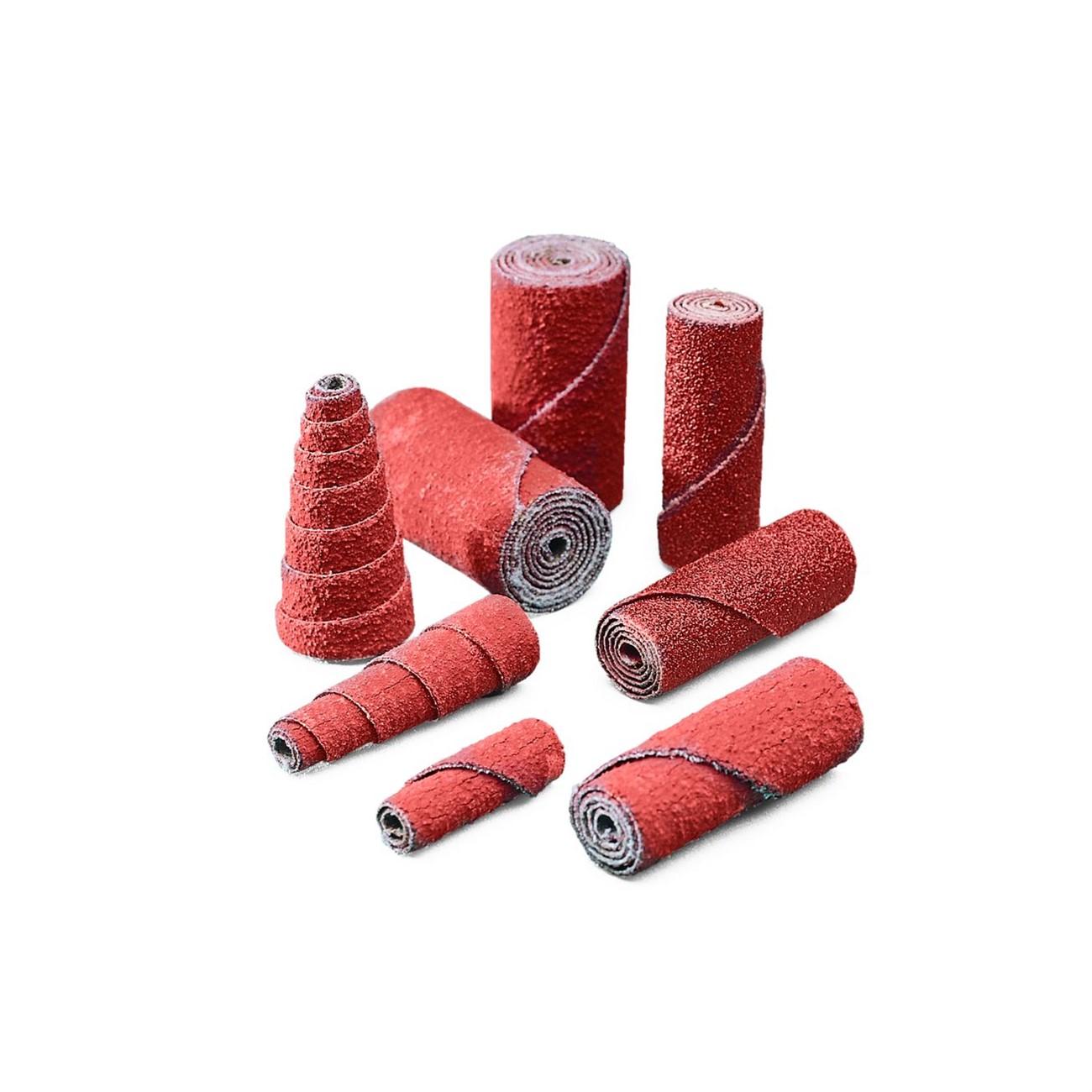

3M 7010363814 Ceramic Cartridge Roll 60 Grit 3/8x1x1/8 in

Product Description

The 3M 7010363814 is a ceramic grain cartridge roll designed for aggressive material removal and consistent cut on metal and hard surfaces. Built on an X-weight cloth backing and resin bonded for heat resistance, this roll delivers durability through demanding grinding and blending operations. A built-in grinding aid promotes cooler cutting temperatures, extending both abrasive life and workpiece integrity. At 60 grit, it is suited for rapid stock removal where surface finish is secondary. Metal fabricators, welders, and industrial maintenance techs are the primary users of this abrasive format.

This cartridge roll is used in pencil-style or cartridge roll mandrel tools for deburring, blending, and grinding in tight spaces such as slots, bores, tubes, and contoured surfaces. The 3/8-inch diameter and 1-inch length make it well matched for small-diameter work where conventional flap wheels or discs cannot reach. It performs on ferrous metals, stainless steel, and similar hard substrates in both shop and field applications.

Key Features

• Ceramic abrasive grain for aggressive cut rate and long service life
• X-weight cloth backing provides strength and flexibility under load
• Resin bond resists heat buildup during extended grinding cycles
• Grinding aid promotes cooler cutting to reduce workpiece discoloration
• 60 grit for fast stock removal on metal and hard surfaces
• Compact 3/8-inch x 1-inch profile reaches confined areas and contours

Compatibility

Designed for use with standard pencil-style mandrels and cartridge roll holders that accept a 1/8-inch arbor, consistent with common die grinder and rotary tool setups used in metal fabrication and industrial maintenance.

Installation Notes

Cartridge rolls are installed by threading the roll onto a compatible mandrel following the mandrel manufacturer's rotation direction guidance. Ensure the mandrel RPM rating meets or exceeds the tool speed before operation. Wear appropriate eye protection and follow applicable ANSI abrasive safety standards during use. Inspect the roll for damage before each use and do not use rolls that show signs of delamination or core separation.

Technical Specifications

• Abrasive Grain: Ceramic
• Grit: 60
• Grade: X-weight cloth
• Bond Type: Resin
• Diameter: 3/8 inches
• Length: 1 inches
• Arbor Size: 1/8 inches
• Unit of Measure: Roll
• Minimum Order Quantity: 100
• UPC: 00051144807895

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010363814
