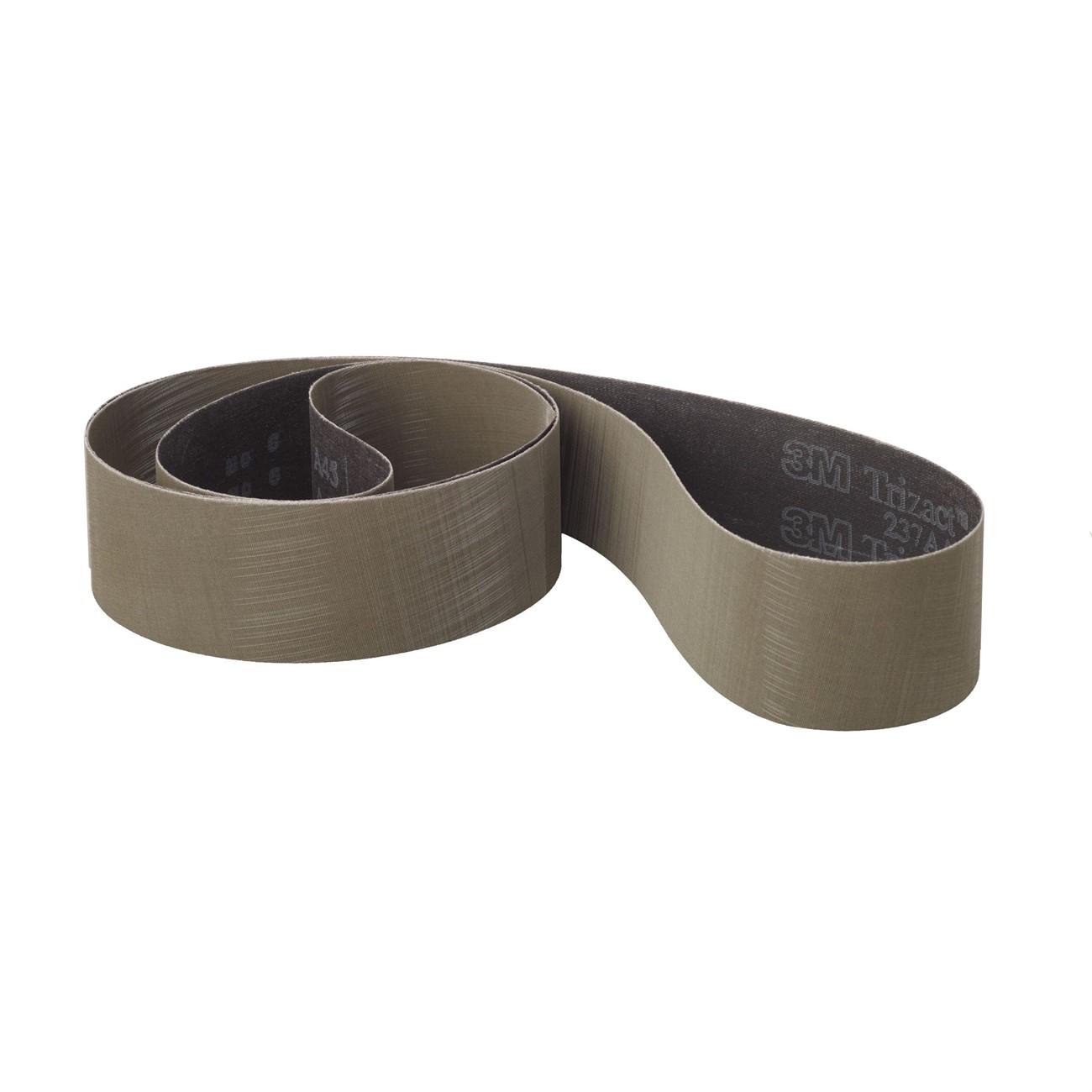

3M 7010363724 Abrasive Belt 73 Inch 5 Inch Ao Cloth

Product Description

The 3M 7010363724 is a Trizact 237AA abrasive belt designed for intermediate finishing and fine polishing in industrial and metalworking applications. It uses 3M proprietary microreplication technology, forming micron-graded aluminum oxide particles into three-dimensional pyramids bonded to an X-weight cloth backing. The pyramid structure continuously exposes fresh, sharp mineral as it wears, producing a consistent cut rate and a predictable, fine finish across the belt's full service life. At 73 inches long and 5 inches wide, this belt fits standard wide-belt and stroke-sander configurations used in fabrication shops and finishing lines.

This belt is suited for intermediate finishing and fine polishing steps prior to plating or buffing operations on metal workpieces. The flexible cloth backing conforms to contoured surfaces, making it useful in both hand-guided and robotic sanding applications. It is particularly effective in automated finishing lines where consistent, repeatable surface finish is required across high production volumes. The gray color identifies the abrasive grade family within the Trizact 237AA product line.

Key Features

• Microreplication technology forms aluminum oxide into self-sharpening three-dimensional pyramids for consistent cut throughout belt life
• Runs cooler than conventional abrasives, reducing heat buildup on workpiece surfaces
• X-weight cloth backing provides flexibility for finishing over contoured and flat surfaces
• Produces finer finishes than conventionally electrostatically coated abrasive belts
• Consistent performance in robotic and automated sanding applications
• Designed for intermediate finishing and fine polishing prior to plating or buffing

Compatibility

Designed as a replacement-style abrasive belt for standard wide-belt sanders and stroke sanders accepting a 73-inch by 5-inch belt configuration in industrial metal finishing applications.

Installation Notes

Installation should be performed by qualified machine operators or maintenance personnel familiar with belt sander equipment. Power down and lockout the sander before changing belts. Verify belt tracking alignment and tension according to the equipment manufacturer's specifications before resuming operation. Inspect the platen or contact drum for wear prior to installing a new belt.

Technical Specifications

• Belt Length: 73 inches
• Belt Width: 5 inches
• Abrasive Mineral: Aluminum Oxide
• Backing Material: X-Weight Cloth
• Abrasive Technology: Trizact Microreplication
• Color: Gray
• Weight: 0.54 pounds
• Unit of Measure: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010363724
