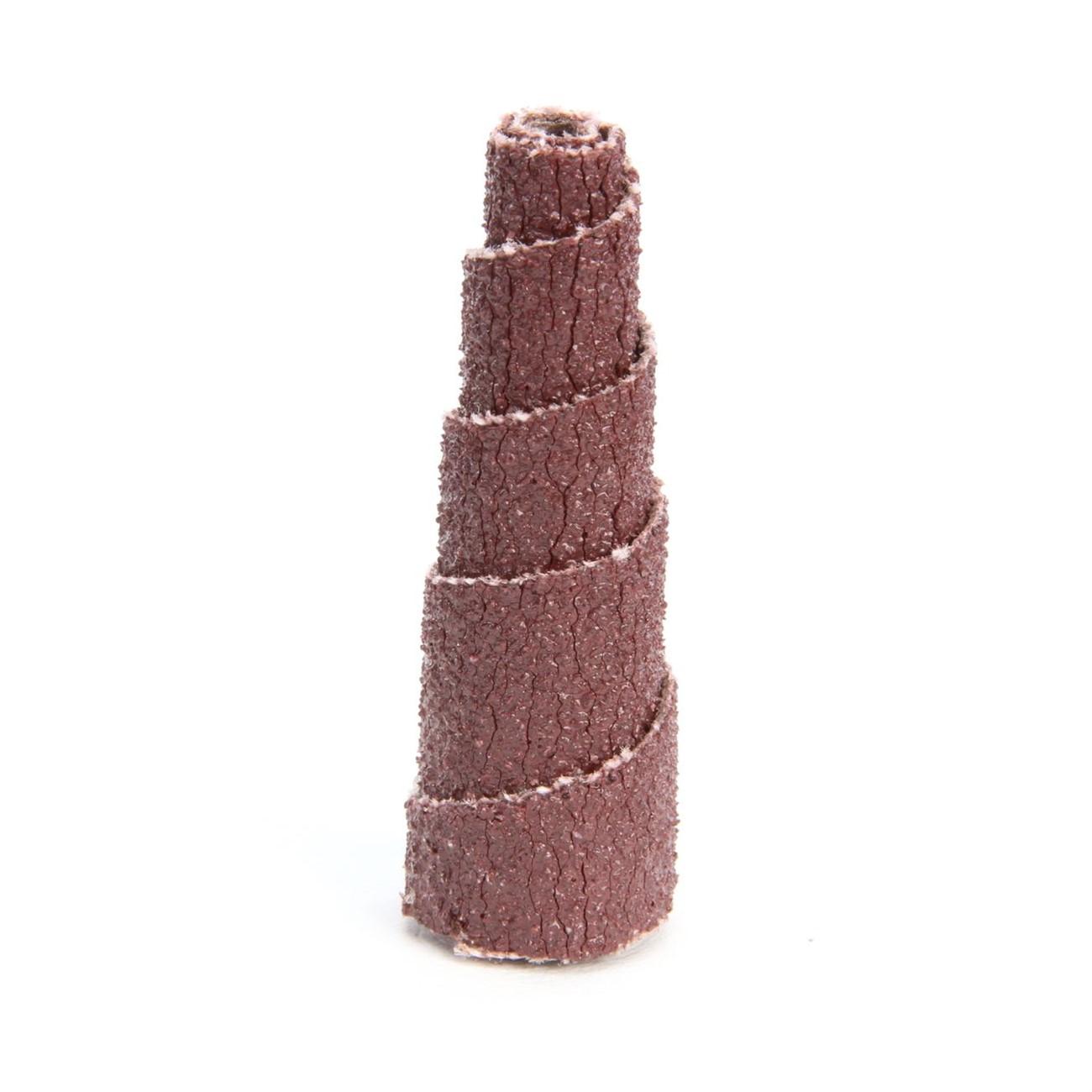

3M 7010363552 Tapered Cartridge Roll 50 Grit X-weight

Product Description

The 3M 7010363552 is a full tapered cartridge roll designed for precision grinding and deburring in tight areas, bores, and contoured surfaces. Built on a durable X-weight cloth backing, this roll uses aluminum oxide abrasive bonded with resin to deliver consistent cut rate and heat resistance during extended use. The tapered profile allows the roll to conform to internal radii and irregular geometries that flat abrasives cannot reach. At 50 grit, it is suited for aggressive stock removal and surface blending on metal workpieces. Machinists, fabricators, and tool-and-die professionals are the primary users.

This cartridge roll is used in die grinders and cartridge roll mandrels for finishing internal diameters, deburring drilled holes, and blending weld seams in both production shop and maintenance environments. The X-weight cloth backing holds up to moderate-to-heavy pressure without tearing, making it appropriate for ferrous and non-ferrous metal applications. It is sold in quantities consistent with production use.

Key Features

• Aluminum oxide abrasive for consistent cut rate on metal surfaces
• X-weight cloth backing resists tearing under moderate-to-heavy grinding pressure
• Resin bond provides heat resistance during extended grinding cycles
• Full tapered profile conforms to bores, contours, and internal radii
• 50 grit for aggressive stock removal and surface blending

Compatibility

Designed for use with standard cartridge roll mandrels and die grinders accepting 0.5-inch diameter tapered cartridge rolls.

Installation Notes

Installation is performed by threading the roll onto a compatible cartridge roll mandrel until seated firmly. Ensure the die grinder is powered off and disconnected from the air supply or power source before mounting or removing the roll. Do not exceed the maximum RPM rating of the mandrel or grinder. Inspect the roll for damage before each use and replace immediately if tears, unraveling, or deformation are observed.

Technical Specifications

• Abrasive Material: Aluminum Oxide
• Backing Weight: X-Weight Cloth
• Bond Type: Resin
• Grit: 50
• Diameter: 0.5 inches
• Length: 1.5 inches
• Shank Diameter: 0.125 inches
• Unit of Measure: Roll
• Minimum Order Quantity: 100
• UPC: 00051144972647

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010363552
