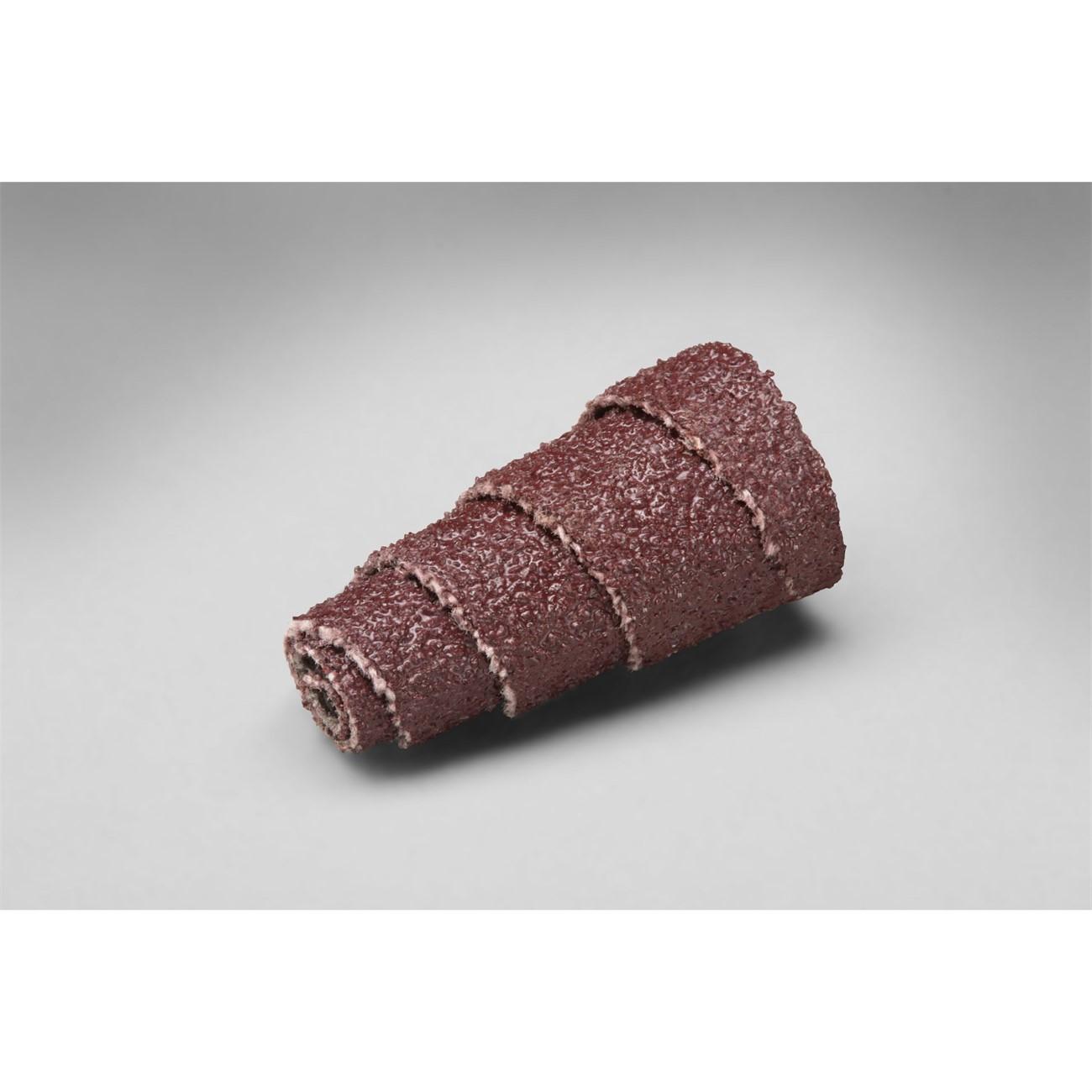

3M 7010363551 Full Tapered Cartridge Roll 60 Grit

Product Description

The 3M 7010363551 is a full tapered cartridge roll designed for precision grinding, deburring, and surface blending in tight areas and contoured surfaces. Built on a durable X-weight cloth backing with aluminum oxide abrasive and resin bond, this roll delivers consistent cut rate and heat resistance across extended use. At 60 grit, it is suited for moderate stock removal and surface preparation on metals and other hard materials. The tapered design allows the roll to conform to irregular profiles as it wears, extending usable life. Licensed HVAC technicians, machinists, pipefitters, and metal fabricators commonly reach for this style of roll during weld blending and internal bore finishing operations.

This cartridge roll is used in die grinders and cartridge roll mandrels for internal grinding of bores, ports, and contoured cavities. It is well suited for aerospace, automotive, plumbing, and HVAC fabrication shops where consistent finish quality and access to confined geometry is required. The 0.5 inch diameter and 1 inch length make it appropriate for small-bore and detail work where larger abrasive tools cannot reach.

Key Features

• Full tapered design conforms to contours as the roll wears, maximizing usable abrasive life
• Aluminum oxide abrasive provides reliable cut rate on ferrous and non-ferrous metals
• X-weight cloth backing resists tearing and flexing under load
• Resin bond construction adds heat resistance during aggressive grinding passes
• 60 grit classification suited for moderate stock removal and pre-finishing
• Compact 0.5 inches x 1 inches x 0.125 inches arbor geometry fits standard cartridge roll mandrels

Compatibility

Designed for use with standard die grinders and cartridge roll mandrels accepting a 0.125 inch arbor. Suitable for OEM-style replacement in metal grinding, deburring, and surface conditioning applications requiring a 60 grit full tapered cartridge roll.

Installation Notes

Installation is performed by threading the cartridge roll onto a compatible mandrel per the mandrel manufacturer instructions. Ensure the die grinder is disconnected from the air supply or power source before mounting or changing rolls. Operate at or below the maximum RPM rating of the mandrel and grinder to prevent roll separation. Eye protection and appropriate PPE are required during all grinding operations.

Technical Specifications

• Abrasive Material: Aluminum Oxide
• Backing Type: X-Weight Cloth
• Bond Type: Resin
• Grit: 60
• Roll Diameter: 0.5 inches
• Roll Length: 1 inches
• Arbor Diameter: 0.125 inches
• Roll Style: Full Tapered
• Unit of Measure: Roll
• Minimum Order Quantity: 100
• Weight: 0.01 pounds
• UPC: 00051144972579

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010363551
