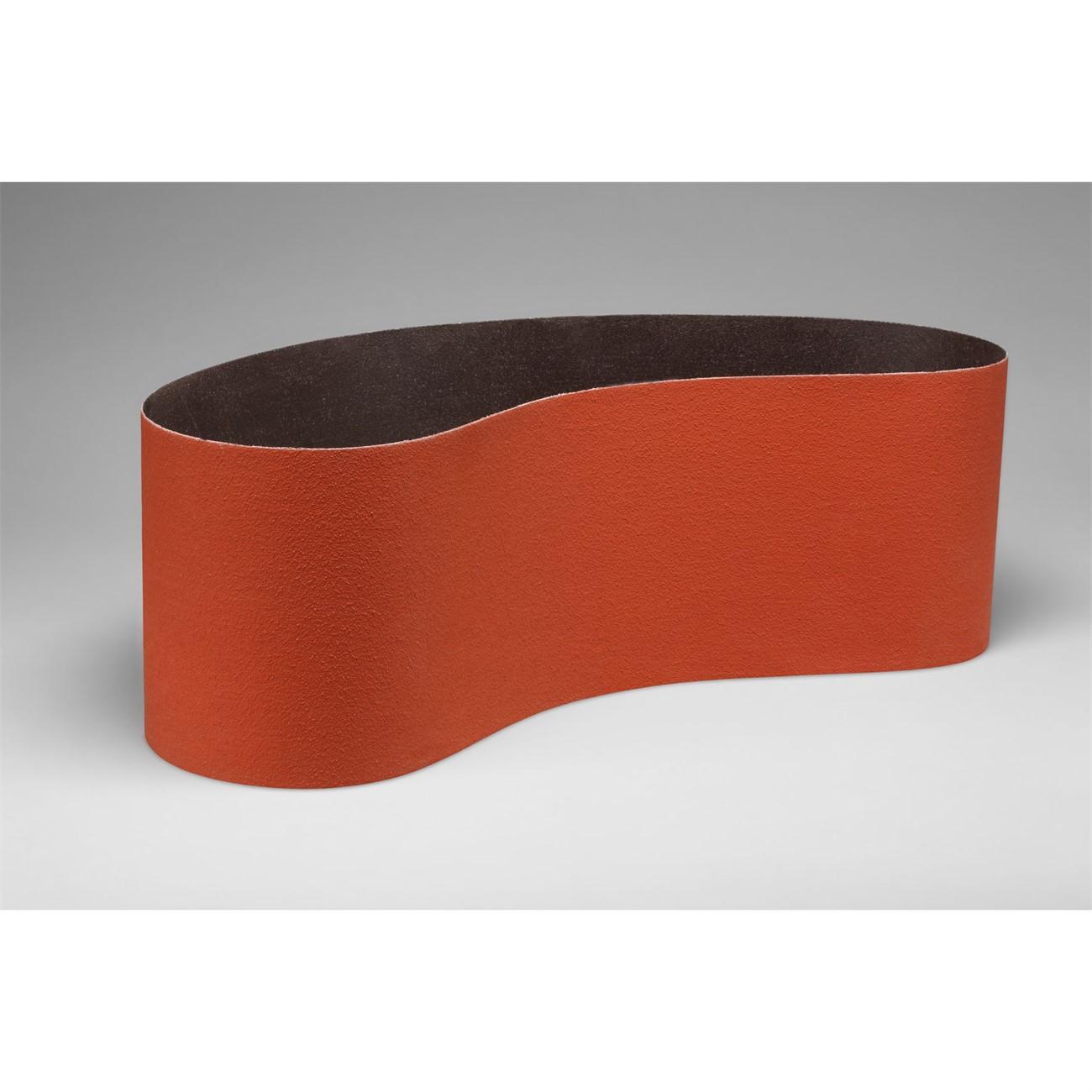

3M 7010363438 Abrasive Belt 747D P120 202x6 Inch Ceramic

Product Description

The 3M 7010363438 is a coated abrasive cloth belt in the 747D series, engineered for stroke sanding and metal finishing applications. It combines ceramic aluminum oxide grain with an anti-friction backing to deliver consistent cut rate and extended belt life. The X-weight cotton backing handles aggressive sanding and grinding without breakdown. A built-in grinding aid reduces heat buildup at the workpiece surface, making it well-suited for heat-sensitive alloys such as stainless steel and nickel-based metals. Licensed HVAC, metalworking, and fabrication trades rely on belts like this for achieving controlled surface finishes on ferrous and non-ferrous substrates.

This belt is sized at 202 inches in length and 6 inches in width, fitting large stationary stroke sanders and wide-belt finishing machines commonly found in metal fabrication shops and HVAC duct fabrication environments. It is appropriate for finishing stainless steel, nickel alloys, and other metal substrates where a consistent scratch pattern and controlled material removal are required. The P120 grit designation places this belt in the medium finishing range, bridging initial stock removal and final surface preparation steps.

Key Features

• Ceramic aluminum oxide blend provides high cut rate and extended service life
• Anti-friction backing allows the belt to run smoothly with reduced drag
• X-weight cotton backing resists breakdown under aggressive grinding pressure
• Grinding aid reduces heat generation to protect heat-sensitive metal surfaces
• P120 grit delivers medium finishing suitable for surface preparation before final finishing
• Designed for stroke sanding on stainless steel, nickel, and other metal substrates

Compatibility

Designed as an OEM-style replacement or direct-fit abrasive belt for large stroke sanders and wide-belt finishing machines accepting a 202-inch by 6-inch coated abrasive belt.

Installation Notes

Belt installation should be performed by a qualified operator following the sander manufacturer's guidelines. Disconnect and lock out electrical power to the machine before changing belts. Inspect the belt for cracks, fraying, or splice integrity before mounting, and confirm the belt tracking direction arrow aligns with machine rotation. Follow applicable ANSI B11 or OSHA 29 CFR 1910.217 safety standards for abrasive belt machinery.

Technical Specifications

• Grit: P120
• Grain Type: Ceramic Aluminum Oxide
• Belt Length: 202 inches
• Belt Width: 6 inches
• Backing Material: X-weight Cotton Cloth
• Weight: 1.55 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 20
• UPC: 00051111678114

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010363438
