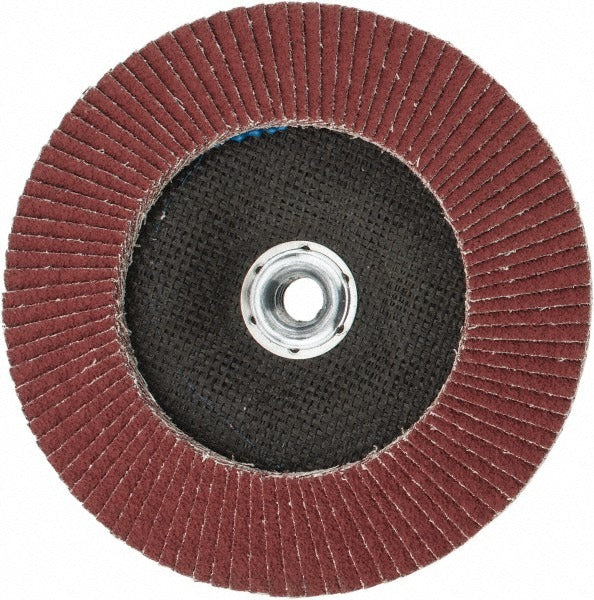

3M 7010363298 Ceramic Flap Disc 40 Grit Type 29 7 Inch

Product Description

The 3M 7010363298 is a Type 29 ceramic flap disc designed for aggressive material removal on metal, weld seams, and fabricated steel. The angled flap design of the Type 29 geometry allows the disc to conform to flat and contoured work surfaces, making it well suited for blending and grinding in a single pass. Running on a 5/8-11 arbor at up to 13,300 RPM, this disc uses ceramic abrasive grain bonded to a cloth backing, which provides consistent cut rate and extended disc life under sustained pressure. At 40 grit, it delivers very coarse stock removal appropriate for heavy grinding applications.

This disc is used primarily in metal fabrication shops, structural steel work, and pipe fitting environments where rapid material removal is required. It fits standard 5/8-11 threaded angle grinders and is installed by welders, ironworkers, pipefitters, and metal fabricators. The Type 29 profile is particularly effective for flat surface grinding at low angles and weld bead removal on mild steel, stainless steel, and similar ferrous materials.

Key Features

• Ceramic abrasive grain for high cut rate and extended service life
• Type 29 angled flap geometry suits flat surface grinding and light contouring
• 40 grit very coarse grade for aggressive stock removal
• Cloth backing provides flexibility and durability under load
• 5/8-11 arbor fits standard angle grinders
• Rated to 13,300 RPM maximum operating speed

Compatibility

Designed for use with angle grinders equipped with a 5/8-11 threaded spindle and accepting a 7 inch diameter flap disc.

Installation Notes

Installation should be performed by qualified personnel following ANSI B7.1 and tool manufacturer guidelines. Confirm the grinder spindle speed does not exceed the 13,300 RPM disc rating before mounting. Power down and disconnect the grinder from its power source before changing discs. Always use appropriate personal protective equipment including eye protection and gloves during disc changes and grinding operations.
