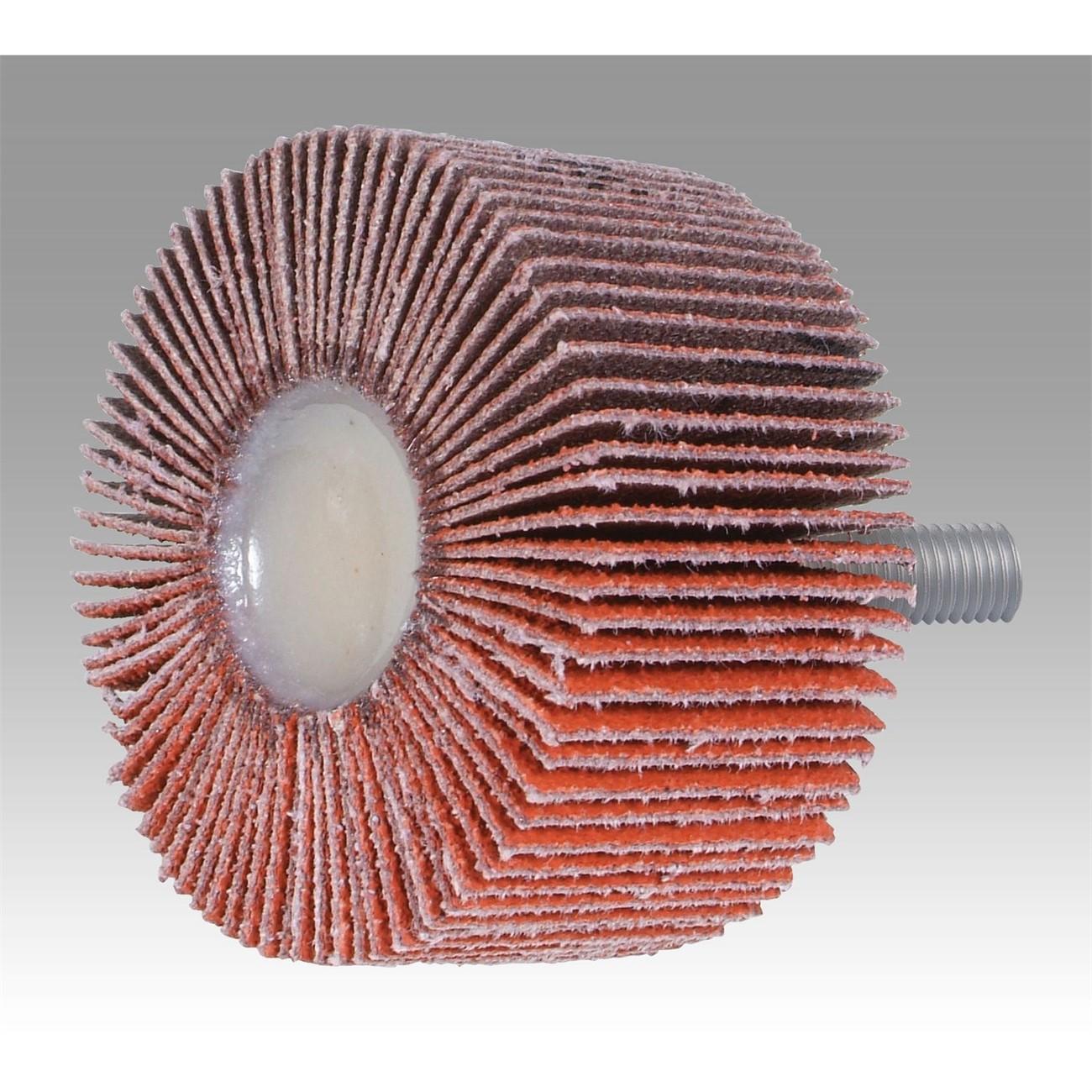

3M 7010363130 Flap Wheel 747D 3 Inch 80 Grit Ceramic

Product Description

The 3M 7010363130 is the 747D flap wheel, a ceramic abrasive grinding and finishing wheel designed for light grinding, blending, deburring, and polishing on metal surfaces. The abrasive flaps are mounted on an X-weight cotton cloth backing and bonded with a resin system that resists thermal and chemical breakdown. At 3 inches in diameter and 80 grit, this wheel delivers consistent stock removal while conforming to curved, rounded, or irregular workpiece profiles. A grind-aid additive is included in the abrasive compound to help reduce heat buildup during use on stainless steel and other metals.

This flap wheel is suited for metal fabrication, maintenance, and finishing applications in both shop and field environments. It is commonly used by fabricators, welders, and metalworkers for weld blending, edge deburring, and surface conditioning on tubing, pipe, and contoured components. The ceramic aluminum oxide abrasive blend provides a fast cut rate combined with extended wheel life, making it effective on hard metals and stainless steel where wheel longevity matters.

Key Features

• Ceramic aluminum oxide abrasive blend for high cut rate and extended service life
• X-weight cotton cloth backing withstands aggressive grinding and sanding loads
• Resin bond resists thermal and chemical deterioration for longer wheel life
• Flap design conforms to rounded and irregular surfaces for a smooth, consistent finish
• Grind-aid additive reduces heat buildup on stainless steel and other metals
• 80 grit rating suited for light grinding, blending, and deburring

Compatibility

Designed as a general-purpose flap wheel for use on compatible rotary tools, die grinders, and drill chucks accepting a 3-inch diameter wheel with appropriate arbor fitment.

Installation Notes

This wheel should be mounted and operated by personnel familiar with abrasive wheel safety per ANSI B7.1 guidelines. Confirm the tool spindle speed does not exceed the maximum RPM rating marked on the wheel or its packaging before mounting. Inspect the wheel for damage before each use and ensure the arbor nut is properly secured. Always wear appropriate eye and face protection when operating grinding and finishing wheels.

Technical Specifications

• Abrasive Type: Ceramic Aluminum Oxide
• Grit: 80
• Diameter: 3 inches
• Backing Material: X-Weight Cotton Cloth
• Bond Type: Resin
• Coating: Coated
• Unit of Measure: Each
• Minimum Order Quantity: 10
• Weight: 0.26 pounds

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010363130
