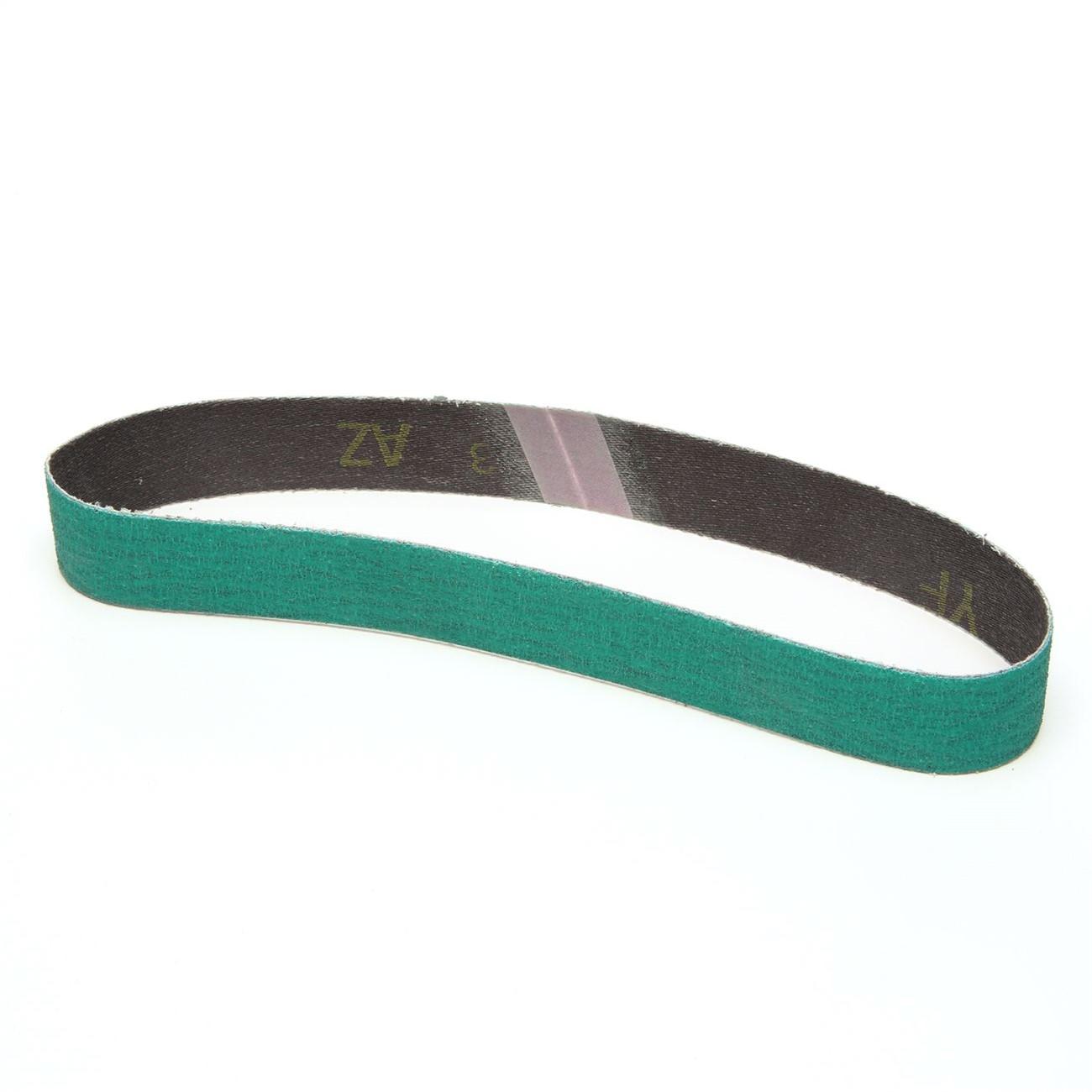

3M 7010363101 Abrasive Belt 577F 24x1/4 Inch 120 Grit

Product Description

The 3M 7010363101 is a coated abrasive belt from the 577F series, designed for demanding grinding and finishing applications where standard aluminum oxide belts fall short. This belt uses an alumina zirconia abrasive grain combined with a grinding aid that delivers faster cutting action and longer life than conventional aluminum oxide. The heavyweight, water-resistant polyester cloth backing holds up under high-pressure applications, edge work, and high-production environments. At 120 grit, it is suited for moderate stock removal and surface blending on a range of metal substrates. Fabricators, metalworkers, and finishing technicians are the primary users of this product.

This belt is built for use on heat-sensitive metals including aluminum and stainless steel, where cooler-running abrasive action helps prevent workpiece discoloration or warping. It is applicable in industrial fabrication shops, job site metalworking, and production finishing lines. The 24-inch length and 1/4-inch width make it a narrow-format belt suited for specific stationary or portable belt grinding equipment configured for that size. It is sold individually and is intended for professional-grade use in high-production settings.

Key Features

• Alumina zirconia grain with grinding aid delivers more cutting power than aluminum oxide
• Runs cooler than standard abrasives, reducing heat buildup on aluminum and stainless steel
• Heavyweight, water-resistant polyester cloth backing handles high-pressure grinding and edge work
• 120 grit provides a balance of stock removal and surface finish quality
• Durable construction suited to high-production operations and extended run times

Compatibility

Designed for use on belt grinding equipment configured to accept a 24-inch length by 1/4-inch width abrasive belt. Suitable for ferrous and non-ferrous metal substrates including aluminum and stainless steel.

Installation Notes

Installation should be performed by qualified metalworking or fabrication personnel familiar with belt grinder operation. Before changing the belt, power down the machine and allow all moving parts to come to a complete stop. Confirm the replacement belt dimensions match the machine specifications before tensioning. Follow the equipment manufacturer guidelines for tracking and tensioning to ensure safe, consistent belt operation.

Technical Specifications

• Series: 577F
• Abrasive Grain: Alumina Zirconia
• Grit: 120
• Belt Length: 24 inches
• Belt Width: 1/4 inch
• Backing Material: Heavyweight Water-Resistant Polyester Cloth
• Color: Green
• Weight: 0.04 pounds
• UOM: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010363101
