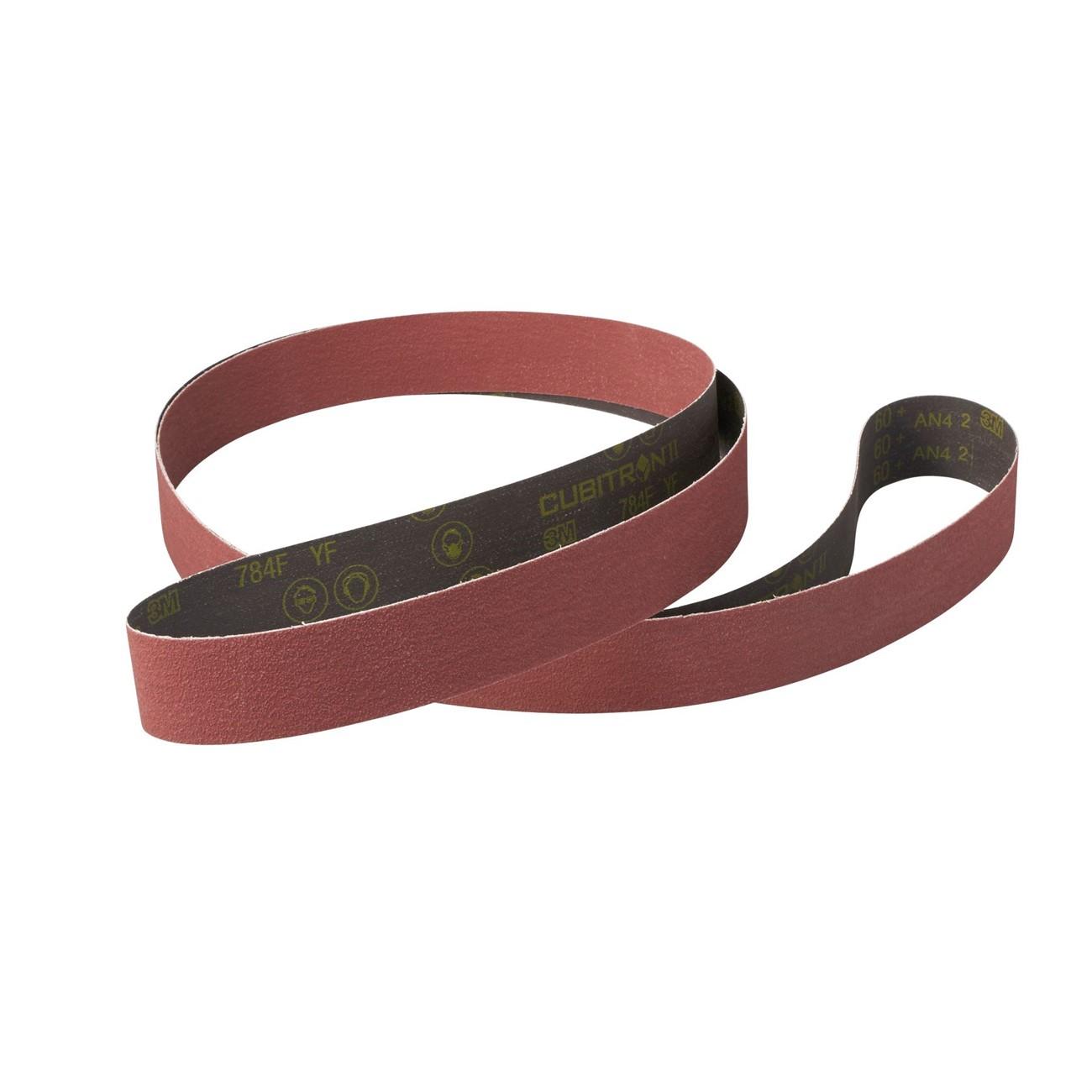

3M 7010362608 Abrasive Belt 60 Grit 48x6 Inch Cubitron Ii

Product Description

The 3M 7010362608 is a Cubitron II 784F cloth abrasive belt engineered for medium-pressure grinding and blending on metal surfaces. It measures 48 inches long by 6 inches wide and cuts at 60 grit using 3M Precision-Shaped Grain technology — a proprietary blend of shaped ceramic and premium aluminum oxide minerals. This grain geometry produces a faster, more consistent cut and significantly longer belt life compared to conventional ceramic aluminum oxide belts. The waterproof YF-weight polyester backing handles both wet and dry applications. A grinding aid is built into the bond to reduce heat buildup on heat-sensitive alloys. Licensed HVAC, metalworking, and fabrication shops rely on this belt for high-throughput grinding and blending operations.

This belt is suited for medium-pressure grinding and blending on ferrous and non-ferrous metals, including heat-sensitive alloys. The moderately flexible backing conforms to both straight and contoured surfaces, making it appropriate for manual, robotic, and pressure-assisted grinding setups. It performs in wet and dry environments and is well-matched to production lines where consistent cut rate and reduced downtime matter. The durable resin bond resists heat-related deterioration, supporting longer run intervals between changeouts.

Key Features

• 3M Precision-Shaped Grain blend of shaped ceramic and premium aluminum oxide for faster, more consistent cut than conventional abrasive belts
• Grinding aid cools the abrasive zone, reducing heat damage on heat-sensitive alloys during wet or dry use
• Waterproof YF-weight polyester backing rated for grades 36-80, providing durability in wet and dry grinding environments
• Moderately flexible backing conforms to straight and contoured workpiece profiles
• Durable resin bond resists heat-related deterioration, extending usable belt life
• Compatible with robotic and pressure-assisted grinding systems, reducing changeout frequency and downtime

Compatibility

Designed for use on all metals in medium-pressure grinding and blending applications, including robotic and pressure-assisted systems operating in wet or dry conditions.

Installation Notes

Belt installation and replacement should be performed by qualified personnel following the equipment manufacturer's guidelines and all applicable safety standards. Power down and lock out the grinder or belt machine before changing the belt. Verify belt tracking and tension before resuming operation. Inspect the backing and splice joint for damage before each use — do not run a belt with a compromised splice or torn backing.

Technical Specifications

• Belt Length: 48 inches
• Belt Width: 6 inches
• Grit: 60
• Abrasive Type: Precision-Shaped Grain ceramic and premium aluminum oxide blend
• Backing Material: YF-weight polyester cloth
• Backing Color: Maroon
• Bond Type: Resin
• Application: Wet and dry grinding and blending on all metals
• Weight: 11.273 pounds
• UOM: Each
• Minimum Order Quantity: 20
• UPC: 076308455588

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010362608
