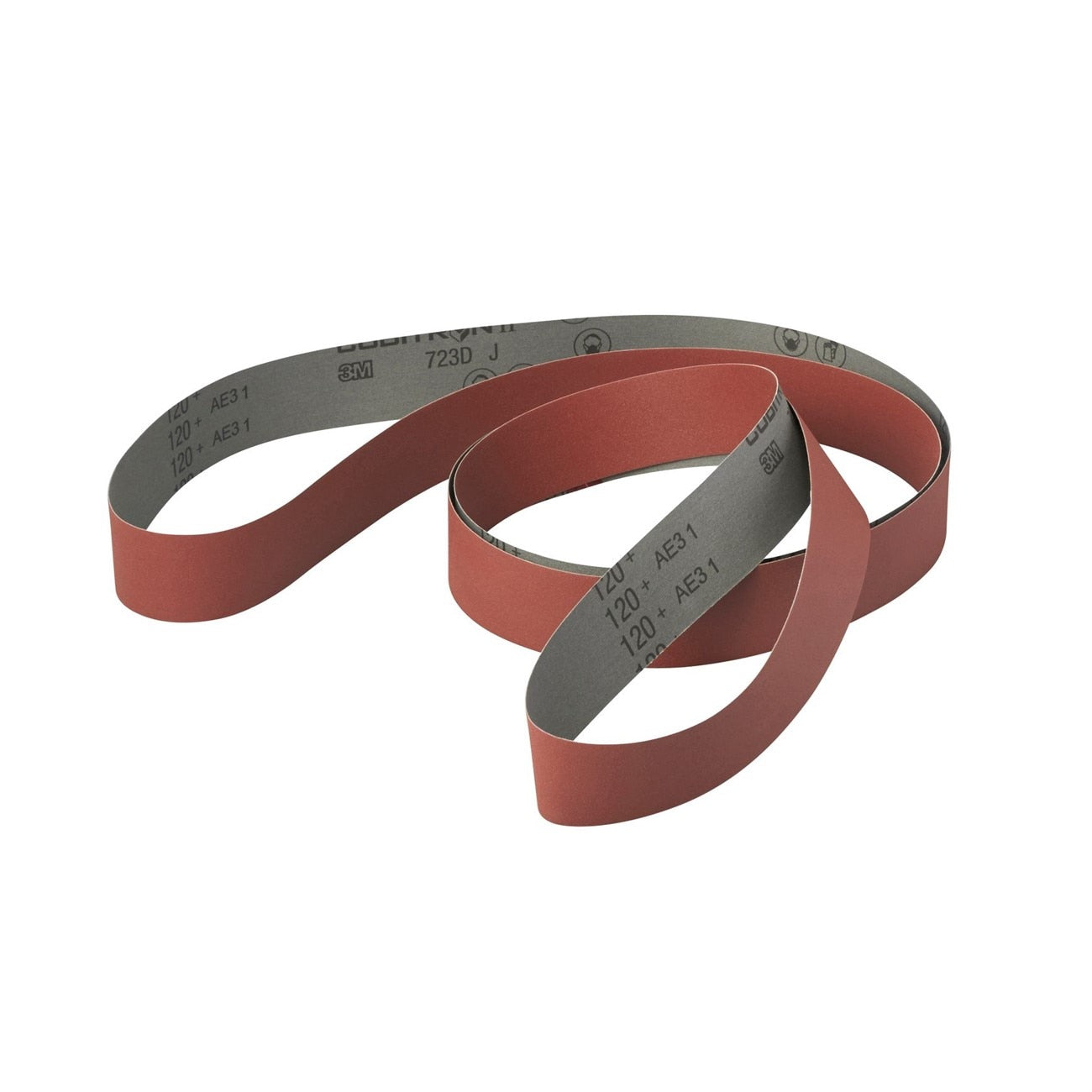

3M 7010362604 Abrasive Belt 72x2 Inch 120 Grit Cotton

Product Description

The 3M 7010362604 is a Cubitron II 723D abrasive cloth belt engineered for grinding, blending, and finishing operations that demand consistent cut and long abrasive life. It features 3M Precision Shaped Grain, a triangular ceramic abrasive structure that fractures in a controlled pattern to continually expose fresh cutting edges. The result is a faster cut rate and more consistent surface finish compared to conventional aluminum oxide belts. The J-weight cotton cloth backing is flexible enough to conform to tight contours and complex geometries while maintaining the structural integrity needed for production-level throughput.

This belt is well suited for medium to fine-grade metal finishing tasks in fabrication shops, aerospace component work, and medical instrument manufacturing where tight tolerances and consistent surface finishes are required. At 72 inches long and 2 inches wide with a 120 grit rating, it fits wide-contact and slack-section belt grinder configurations commonly used for contour blending and defect removal on curved or irregular part profiles. It is intended for dry grinding applications only.

Key Features

• Precision Shaped Grain delivers up to 2x longer belt life compared to comparable aluminum oxide belts
• Faster, more consistent cut rate reduces time lost to belt changeovers and lowers cost per part
• Flexible J-weight cotton cloth backing conforms to tight contours and complex part geometries
• Durable resin bond resists heat-related deterioration, extending abrasive service life
• Suitable for dry grinding and finishing applications
• 120 grit rating appropriate for medium to fine material removal and surface blending

Compatibility

Designed for use on belt grinders and finishing machines accepting 72 inch by 2 inch abrasive belts in dry-use metal grinding and surface finishing applications.

Installation Notes

Belt installation should be performed by qualified personnel following machine manufacturer guidelines. Power down and lock out the grinder before mounting or removing the belt. Confirm belt tracking and tension are set per equipment specifications before resuming operation. Inspect the belt for tears or splice separation before each use and replace immediately if damage is found.

Technical Specifications

• Belt Length: 72 inches
• Belt Width: 2 inches
• Grit: 120
• Backing Material: Cotton Cloth
• Backing Weight: J-Weight
• Abrasive Type: Precision Shaped Grain Ceramic
• Bond Type: Resin
• Application Type: Dry
• Unit of Measure: Each
• Minimum Order Quantity: 50
• Weight: 7.343 pounds
• UPC: 076308455502

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010362604
