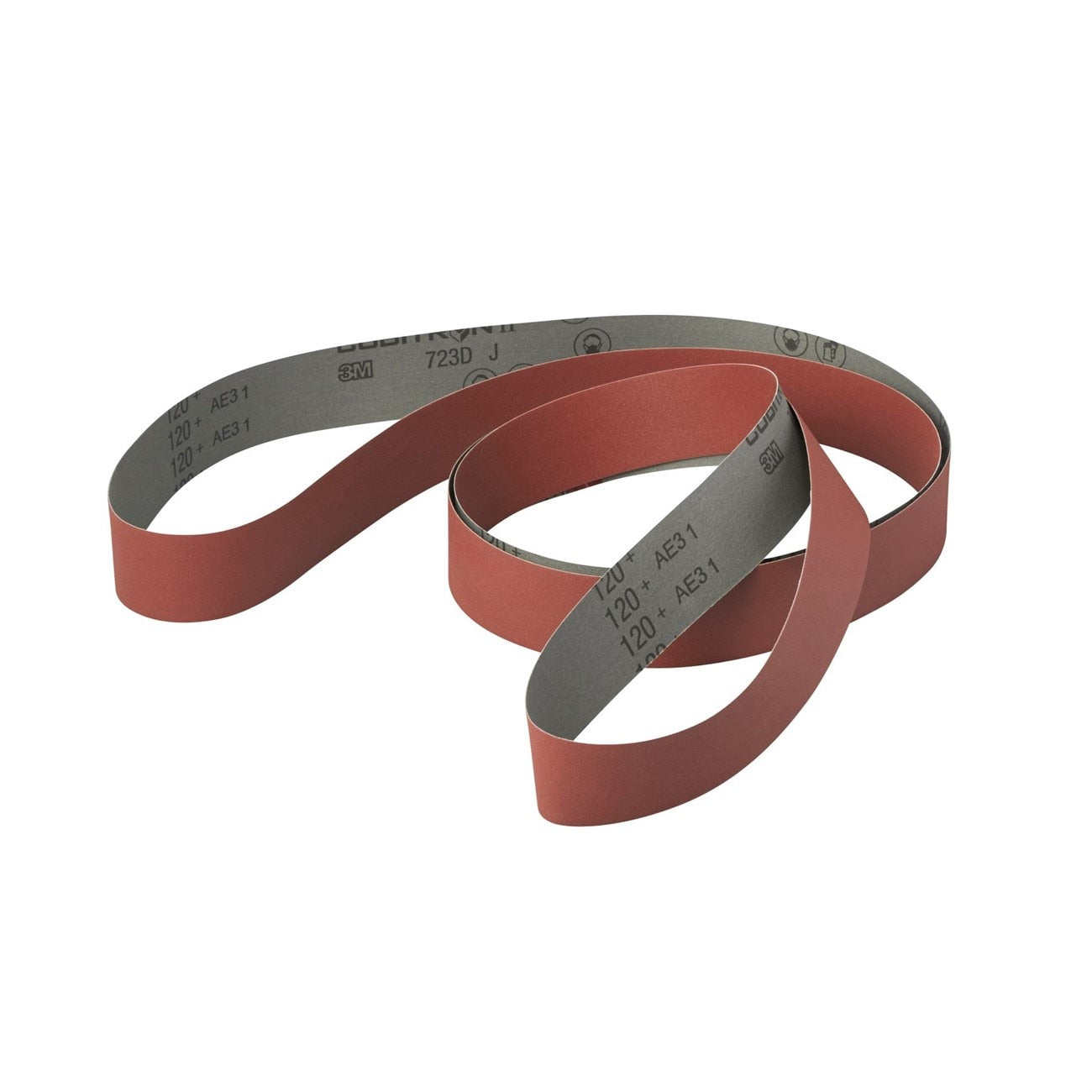

3M 7010362602 Abrasive Belt 132x3 Inch 120 Grit Cotton

Product Description

The 3M 7010362602 is a Cubitrona II 723D coated abrasive belt designed for high-performance grinding, blending, and finishing on metal and other hard surfaces. It uses 3M Precision Shaped Grain, a structured abrasive technology that cuts faster and lasts longer than conventional aluminum oxide belts. The belt measures 132 inches in length and 3 inches in width, with a flexible J-weight cotton cloth backing rated for dry applications. It is used by metal fabricators, machinists, and finishing technicians who need consistent cut rates across complex part geometries. The durable resin bond resists heat-related breakdown, extending useful belt life.

This belt is suited for medium to fine-grade finishing work on contoured and flat surfaces alike. The J-weight backing provides the flexibility needed to conform to tight radii and complex shapes such as medical instruments, aerospace components, and precision machined parts. It runs dry and is well-matched for applications where consistent surface finish quality and low cost-per-part are priorities. Each belt is sold individually, with a minimum order quantity of 25 units.

Key Features

• 3M Precision Shaped Grain delivers up to 2x longer life compared to conventional aluminum oxide abrasive belts
• Flexible J-weight cotton cloth backing conforms to tight contours and complex part geometries
• Durable resin bond resists heat deterioration, extending belt service life in dry grinding applications
• 120 grit rating suitable for medium to fine material removal and surface blending
• Consistent cut rate reduces belt changeover frequency and improves production throughput
• Suitable for dry applications only

Compatibility

Designed as an OEM-style replacement or direct-fit abrasive belt for stationary and portable belt grinders and finishing machines that accept 132-inch by 3-inch belts.

Installation Notes

Belt installation should be performed by a qualified operator following the grinder or finishing machine manufacturer's guidelines. Power down and lockout the machine before changing belts. Verify belt tracking and tension according to equipment specifications before resuming operation. Inspect the belt for tears or joint separation before each use and replace immediately if damage is found.

Technical Specifications

• Belt Length: 132 inches
• Belt Width: 3 inches
• Grit: 120
• Abrasive Type: Precision Shaped Grain
• Backing Material: Cotton Cloth (J-weight)
• Bond Type: Resin
• Application Type: Dry
• Weight: 9.453 pounds
• UPC: 076308455458

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010362602
