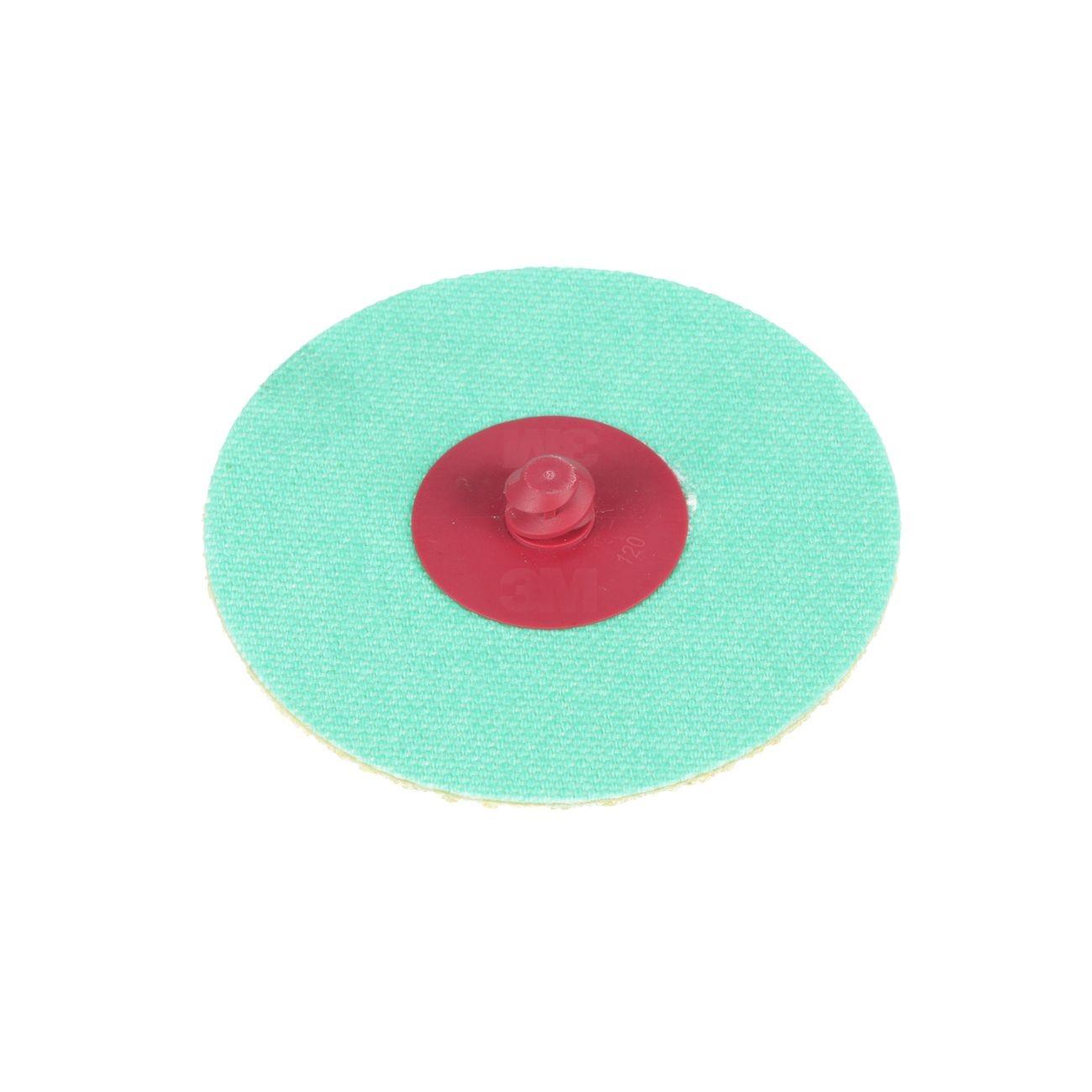

3M 7010362001 Diamond Cloth Disc 3 Inch 20000 Rpm

Product Description

The 3M 7010362001 is a diamond cloth abrasive disc engineered for grinding and polishing hard-to-grind materials in demanding finishing applications. The diamond mineral abrasive is resin-bonded to a durable, water-resistant cloth backing, allowing the disc to run dry or with liquid coolant. At 3 inches in diameter and rated to 20000 RPM, this disc is built for precision material removal on hard, dense workpiece materials. Licensed machinists, tool and die technicians, and precision grinding specialists are the primary users of this disc type.

This disc is suited for use on ceramics, carbides, and hard-coated materials where conventional abrasive minerals lose cutting efficiency too quickly. The cloth backing withstands coolant exposure without delamination or dimensional loss, extending abrasive life in wet-process grinding setups. The Roloc attachment system provides a quick, secure mount and fast disc changes, reducing downtime during high-volume finishing operations. Typical applications include tool grinding, surface conditioning of carbide inserts, and precision polishing of ceramic components in both shop and production environments.

Key Features

• Diamond mineral abrasive cuts hard-to-grind materials including ceramics, carbides, and hard-coated surfaces
• Water-resistant cloth backing supports dry use or operation with liquid coolants
• Resin bonding maintains mineral retention in both wet and dry grinding conditions
• Roloc quick-change attachment system allows fast, secure disc swaps without additional tools
• Rated to 20000 RPM for use with compatible high-speed rotary tools and grinders

Compatibility

Designed for use with Roloc-compatible rotary tools and right-angle grinders that accept 3-inch quick-change abrasive discs. Suitable for grinding and polishing ceramics, carbides, and hard-coated materials.

Installation Notes

Installation and disc changes should be performed with the tool fully powered down and unplugged or air supply disconnected. Thread the Roloc disc onto the mandrel until seated securely before starting the tool. Always verify that the tool's rated RPM does not exceed the disc's 20000 RPM maximum speed rating before operation. Eye protection and appropriate respiratory protection should be worn during grinding operations per applicable safety standards.

Technical Specifications

• Diameter: 3 inches
• Maximum Speed: 20000 RPM
• Abrasive Mineral: Diamond
• Backing Material: Water-resistant cloth
• Bonding Type: Resin bond
• Attachment System: Roloc quick-change
• Use Type: Wet or dry
• Weight: 0.146 pounds
• Package Dimensions: 5 inches x 7 inches x 0.03 inches
• Sold As: Each
• Minimum Order Quantity: 5

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010362001
