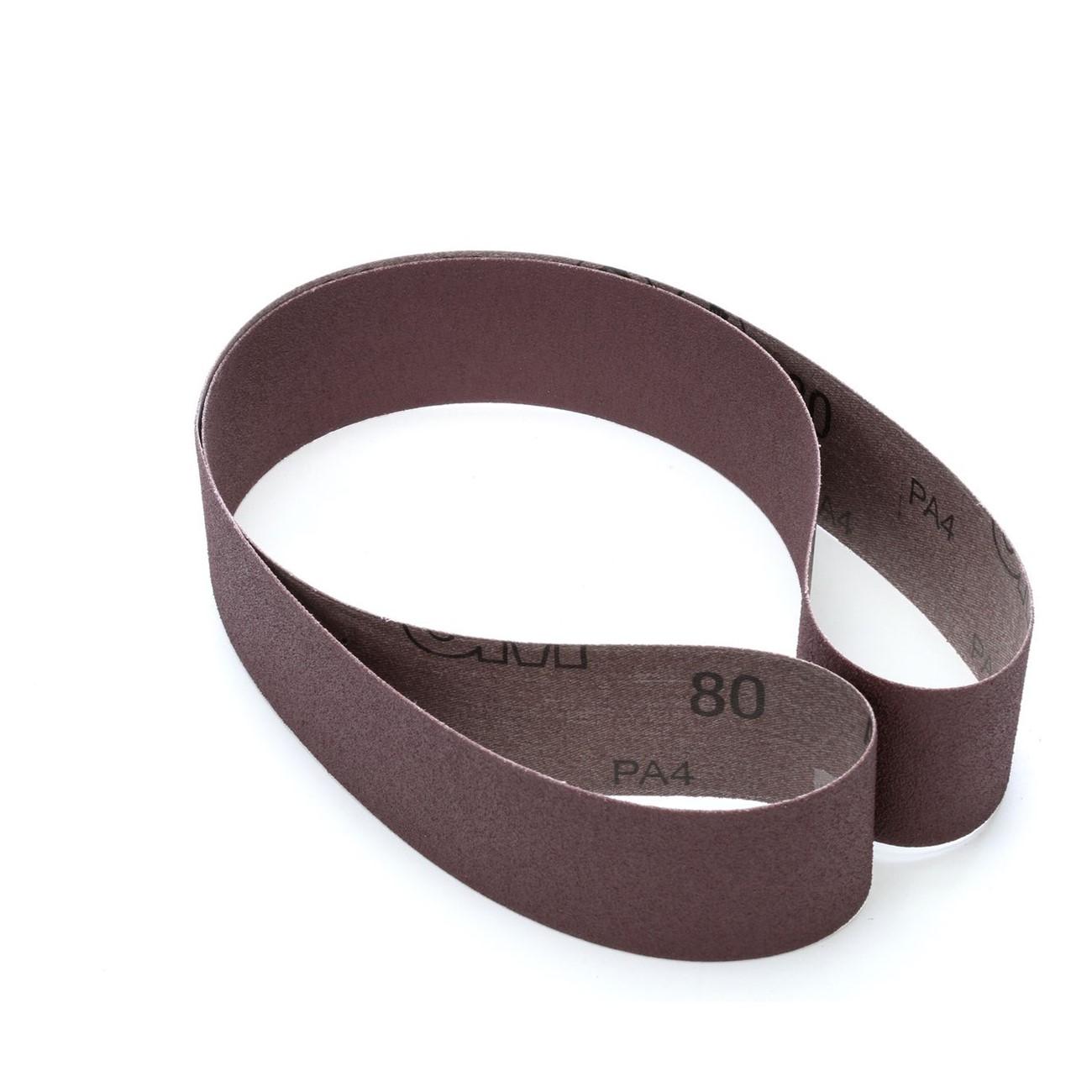

3M 7010361714 Abrasive Belt 80 Grit 79x3 Inch Cloth

Product Description

The 3M 7010361714 is an aluminum oxide coated abrasive cloth belt designed for demanding metalworking and woodworking applications. Built on an X-weight cloth backing, it delivers the rigidity and durability needed for heavy stock removal, deburring, and surface finishing. The resin bond system holds up under high heat and pressure, while the aluminum oxide mineral provides fast cutting action across a wide range of substrates. At 79 inches long and 3 inches wide with an 80-grit abrasive, this belt is sized for wide belt, edge, and portable belt sanding equipment used in production and shop environments.

This belt is suited for metal deburring, general metalworking, and select woodworking tasks. The tube-shaped construction allows the belt to conform to inner and outer contours, making it effective for removing parting lines, surface imperfections, and burrs. It is also compatible with rubber expander wheel attachments for use with die grinders or rotary drills, expanding its range of use to portable applications. Licensed tradespeople and shop fabricators working with metal substrates will find it well-suited for production-volume sanding tasks.

Key Features

• Aluminum oxide abrasive mineral cuts fast on metal and wood substrates
• X-weight cloth backing withstands heavy sanding and grinding loads
• Resin bond system resists high heat and pressure during use
• Tube-shaped form conforms to inner and outer contours for deburring and parting line removal
• Compatible with rubber expander wheel attachments for die grinders and rotary drills
• Rated at 80 grit for aggressive material removal with moderate surface finish

Compatibility

Designed for use on wide belt sanders, edge sanders, and portable belt sanding equipment; also fits rubber expander wheel attachments used with die grinders and rotary drills when the belt dimensions match the equipment specifications.

Installation Notes

Installation should be performed by a qualified operator familiar with abrasive belt equipment. Disconnect and lock out all power to the sanding machine before mounting or replacing the belt. Verify that belt tracking and tension are set per the equipment manufacturer's guidelines before resuming operation. Always confirm that the belt's speed rating is compatible with the machine's maximum operating RPM before use.

Technical Specifications

• Belt Length: 79 inches
• Belt Width: 3 inches
• Grit: 80
• Abrasive Mineral: Aluminum Oxide
• Backing Material: X-weight Cloth
• Bond Type: Resin
• Weight: 0.35 pounds
• Unit of Measure: Each
• UPC: 00051144811922

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010361714
