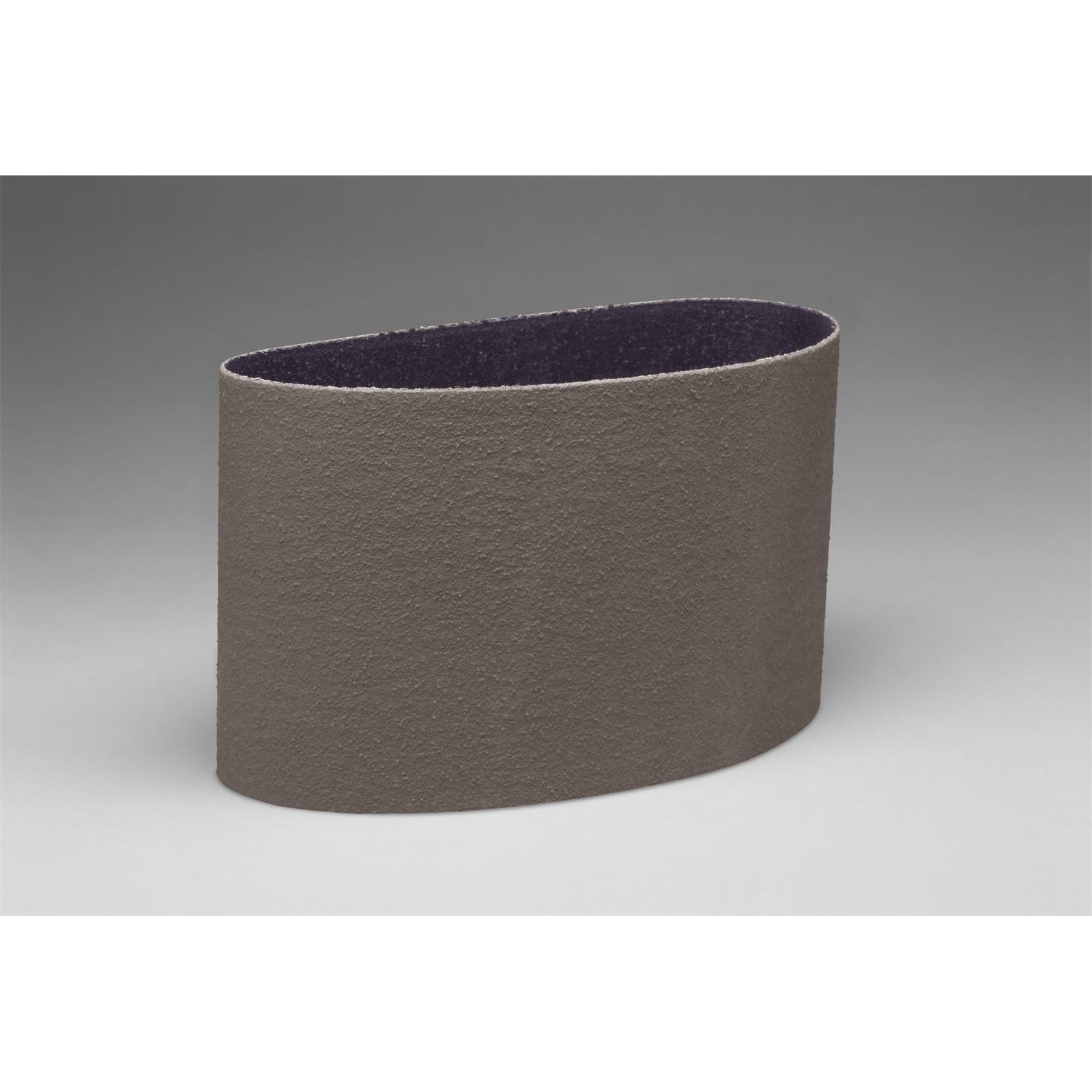

3M 7010361464 Abrasive Belt 60 Inch X 6 Inch Ao Cloth

Product Description

The 3M 7010361464 is a Trizact 237AA coated abrasive belt designed for intermediate finishing and fine polishing applications. It uses 3M microreplication technology, where micron-graded aluminum oxide particles are formed into uniform three-dimensional pyramids and bonded to an X-weight cloth backing. As the pyramids wear during use, fresh, sharp mineral is continuously exposed, delivering a consistent cut rate and predictable surface finish throughout the life of the belt. Metalworking professionals, fabricators, and automated finishing operations rely on this belt where repeatable, fine surface results are required before plating or buffing.

This belt is suited for robotic and automated grinding lines as well as manual precision metalworking. Its flexible cloth backing conforms to contoured surfaces, making it effective on complex parts and profiles. It is commonly used in aerospace, automotive, and general metal fabrication environments where final surface quality before plating, coating, or polishing must meet tight specifications. The belt measures 60 inches in length and 6 inches in width and is sold individually.

Key Features

• Microreplication technology forms aluminum oxide into self-sharpening pyramids for consistent cut and finish
• Self-sharpening pyramid structure runs cooler than conventional coated abrasives, reducing heat buildup on workpieces
• X-weight cloth backing provides flexibility for finishing over contoured and complex surfaces
• Three-dimensional abrasive design delivers repeatable finishes throughout belt life, ideal for robotic applications
• Produces finer surface finishes than conventional electrostatically coated abrasives
• Suited for intermediate finishing and fine polishing prior to plating or buffing operations

Compatibility

Designed for use on belt grinders and automated finishing equipment accepting 60-inch by 6-inch abrasive belts. Intended for metalworking applications requiring intermediate finishing and fine polishing before plating or buffing.

Installation Notes

Installation should be performed by a qualified metalworking or maintenance technician following the equipment manufacturer's belt-change procedures. Ensure the grinder or finishing machine is fully de-energized and locked out before mounting or removing the belt. Verify belt tracking and tension according to machine specifications before resuming operation. Always wear appropriate personal protective equipment, including eye protection and gloves, when handling abrasive belts.

Technical Specifications

• Abrasive Mineral: Aluminum Oxide
• Belt Length: 60 inches
• Belt Width: 6 inches
• Backing Type: X-Weight Cloth
• Abrasive Structure: Microreplication (3D Pyramid)
• Color: Gray
• Unit of Measure: Each
• Minimum Order Quantity: 20
• Weight: 0.39 pounds
• UPC: 00051125188715

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010361464
