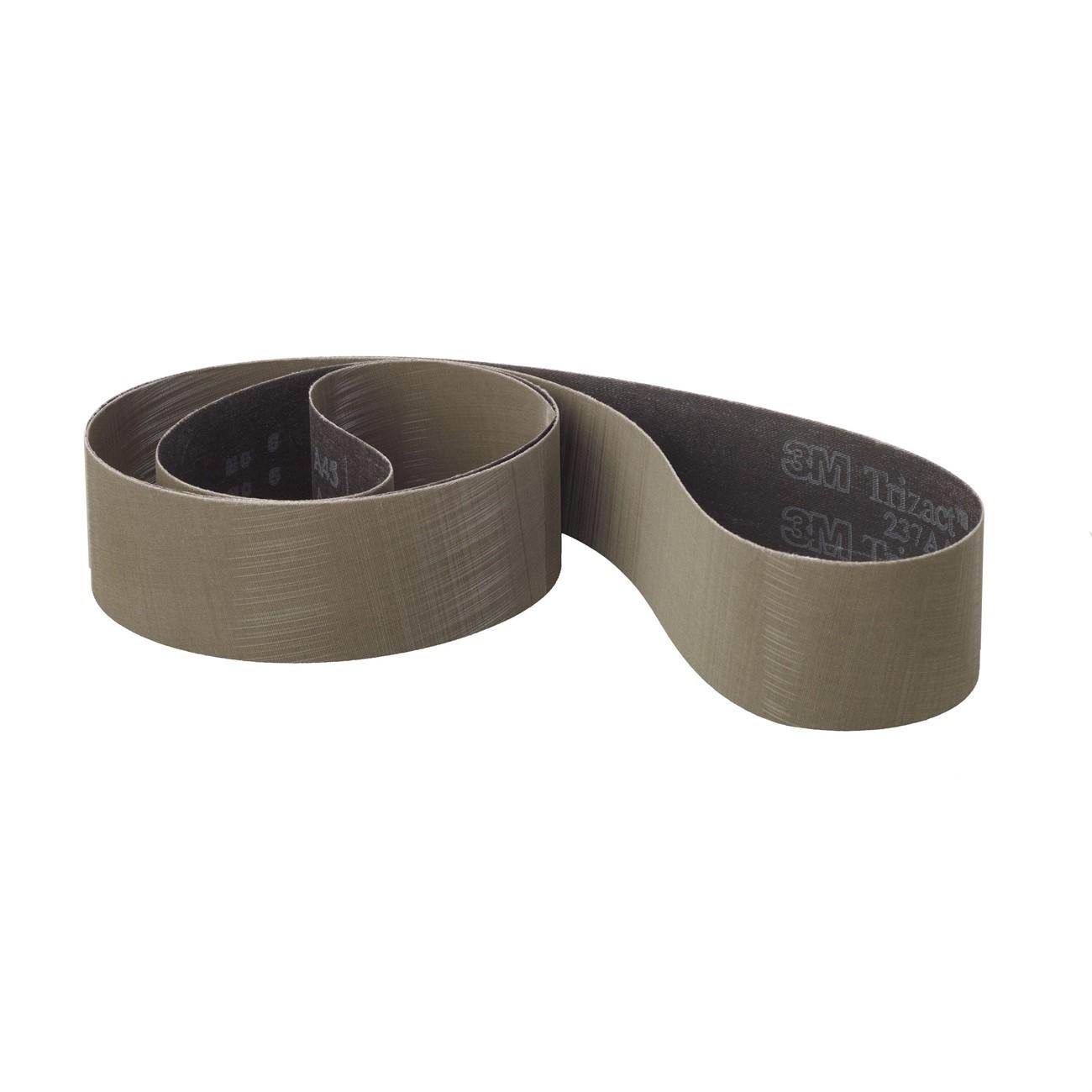

3M 7010361436 Trizact 237AA Abrasive Belt 24x3 Inch Ao

Product Description

The 3M 7010361436 is a Trizact 237AA abrasive belt designed for intermediate finishing and fine polishing applications. It uses 3M microreplication technology, where micron-graded aluminum oxide particles are formed into three-dimensional pyramids and bonded to an X-weight cloth backing. As the pyramids wear down during use, fresh, sharp mineral is continuously exposed. This self-renewing action delivers a consistent cut rate and a predictable, repeatable surface finish across the full life of the belt. Fabricators, metal finishers, and robotic grinding cell operators rely on this belt for pre-plate and pre-buff surface preparation work.

This belt is suited for intermediate finishing and fine polishing on metal surfaces prior to plating or buffing operations. The flexible cloth backing conforms to contoured workpieces, maintaining consistent contact and finish quality across complex geometries. The three-dimensional abrasive structure makes it especially well-suited for robotic and automated finishing applications where consistent, repeatable results are required across high production volumes.

Key Features

• Microreplication technology forms aluminum oxide into self-sharpening abrasive pyramids for consistent cut
• Self-sharpening action exposes fresh mineral as pyramids wear, extending usable belt life
• Runs cooler than conventional coated abrasives, reducing heat-related workpiece distortion
• Flexible X-weight cloth backing conforms to contoured surfaces for uniform finish
• Produces finer finishes than conventional electrostatically coated abrasives
• Designed for robotic and automated finishing environments requiring predictable, repeatable results

Compatibility

Designed for use on belt grinding and finishing equipment accepting 24-inch by 3-inch abrasive belts. Intended for metal finishing applications including pre-plate and pre-buff surface preparation on ferrous and non-ferrous workpieces.

Installation Notes

Installation should be performed by qualified finishing equipment operators familiar with abrasive belt machinery. Ensure the belt grinder is fully powered off and de-energized before mounting or removing belts. Verify belt tension and tracking alignment before resuming operation. Always wear appropriate PPE including eye protection and gloves when handling abrasive belts and operating grinding equipment.

Technical Specifications

• Abrasive Mineral: Aluminum Oxide
• Backing Material: X-Weight Cloth
• Belt Length: 24 inches
• Belt Width: 3 inches
• Color: Gray
• Weight: 0.11 pounds
• UPC: 00051125149358

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010361436
