3M 7010361416 Trizact 237AA Abrasive Belt 24x1/4 Inch

Product Description

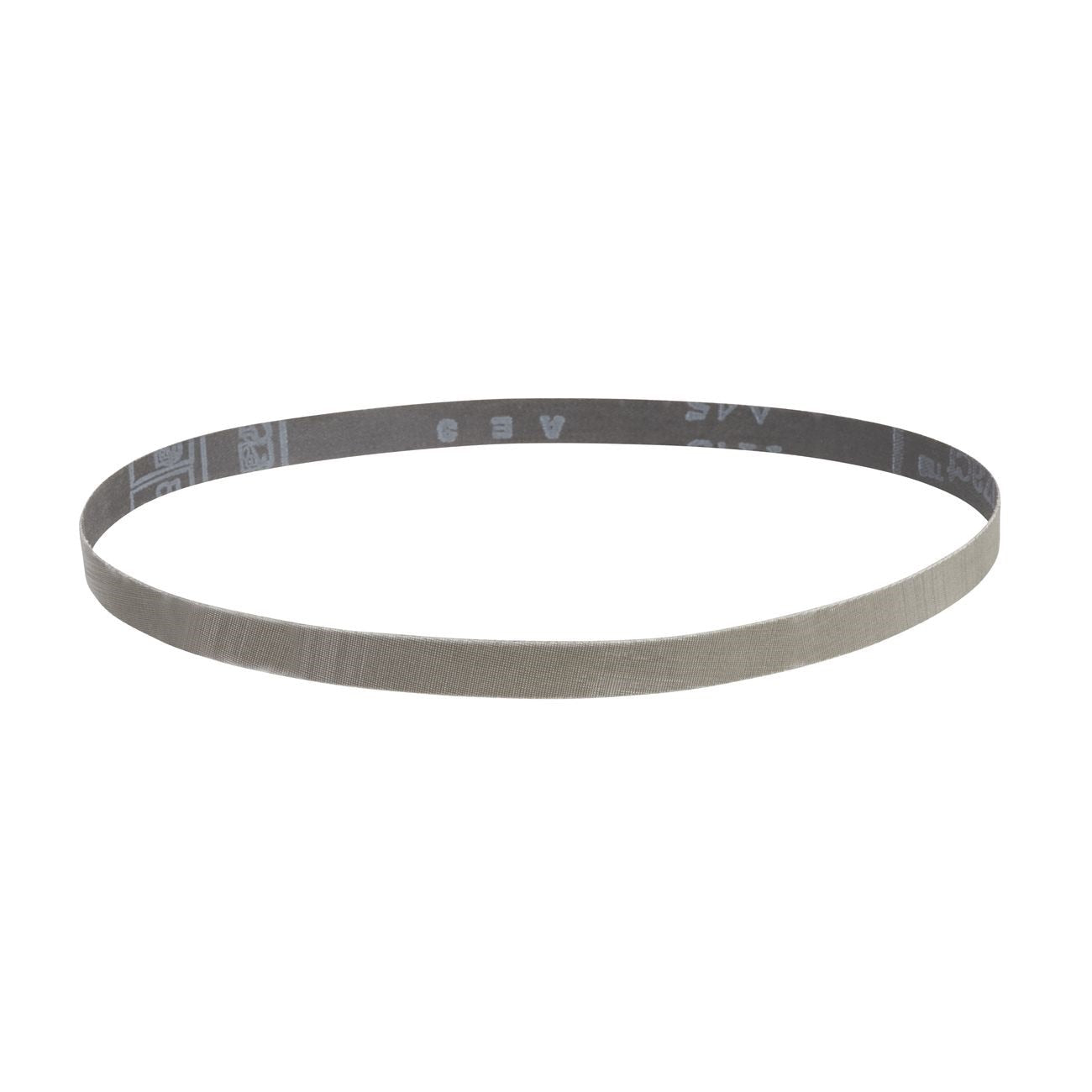

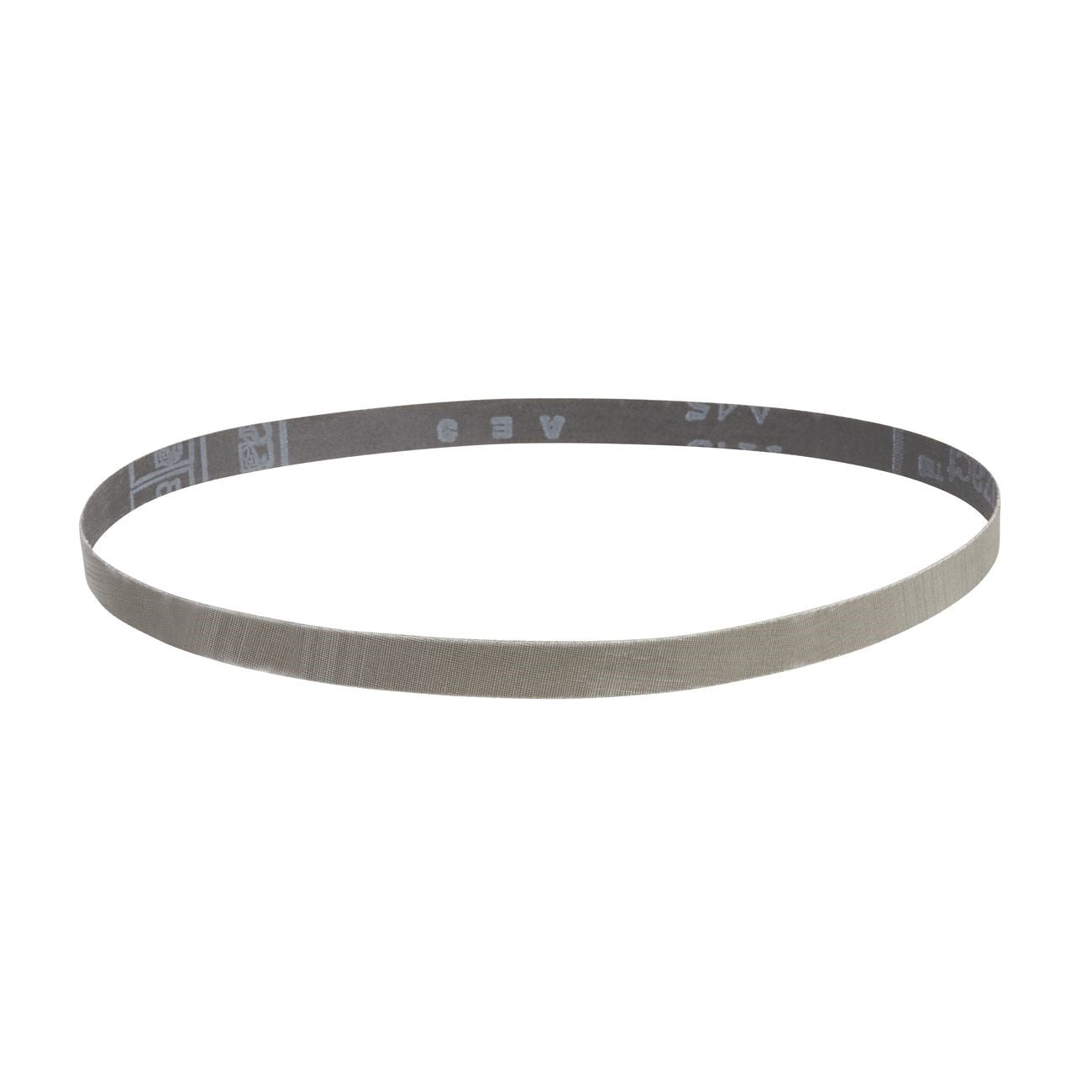

The 3M 7010361416 is a Trizact 237AA abrasive belt designed for intermediate finishing and fine polishing applications. It uses 3M microreplication technology, where micron-graded aluminum oxide particles are formed into three-dimensional pyramids and bonded to an X-weight cloth backing. As the pyramids wear during use, fresh sharp mineral is continuously exposed, delivering a consistent cut rate and predictable fine finish from start to finish. At 24 inches long and 1/4 inch wide, this belt is suited for narrow-contact finishing work in both manual and robotic grinding setups.

This belt is used in metal finishing operations where surface consistency and finish quality are critical before downstream processes such as plating or buffing. The flexible cloth backing conforms to contoured workpiece surfaces, making it effective on complex geometries. Its three-dimensional abrasive structure supports repeatable results in automated and robotic applications where consistent finish output is required across high production volumes.

Key Features

• Microreplication technology forms aluminum oxide into self-sharpening pyramidal structures for consistent cut throughout belt life
• Self-sharpening pyramids run cooler than conventional abrasive coatings, reducing heat buildup on workpieces
• X-weight cloth backing provides flexibility for finishing over contoured surfaces
• Three-dimensional abrasive design supports consistent, repeatable finishes in robotic applications
• Produces finer surface finishes than conventional electrostatically coated abrasive belts
• Suited for intermediate finishing and fine polishing prior to plating or buffing

Compatibility

Designed for use on belt grinding and finishing machines that accept 24-inch by 1/4-inch abrasive belts. Confirm contact wheel and platen dimensions match belt width before installation.

Installation Notes

Installation should be performed by qualified grinding or finishing equipment operators following equipment manufacturer guidelines. Power down and lock out the machine before changing belts. Verify belt tracking and tension per equipment specifications before resuming operation. Inspect the belt for damage or improper seating before running at full speed.

Technical Specifications

• Abrasive Type: Aluminum Oxide (Trizact 237AA)
• Backing Material: X-Weight Cloth
• Belt Length: 24 inches
• Belt Width: 1/4 inch
• Color: Gray
• Weight: 0.01 pounds
• Unit of Measure: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010361416
