3M 7010361407 Trizact 237AA Abrasive Belt 274x6 Inch

Product Description

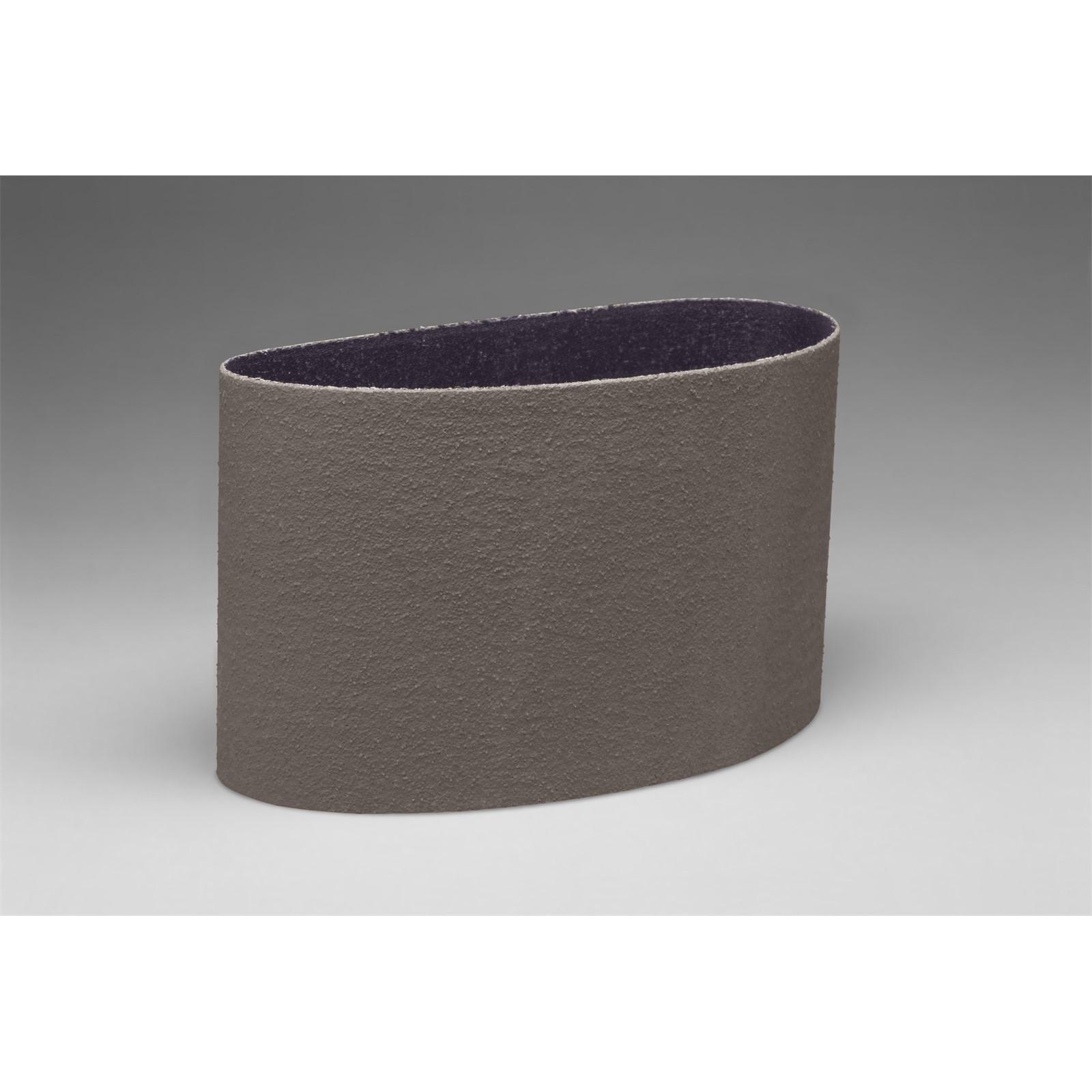

The 3M 7010361407 is a Trizact 237AA coated abrasive belt designed for intermediate finishing and fine polishing in industrial and manufacturing applications. It uses 3M microreplication technology, where micron-graded aluminum oxide particles are formed into three-dimensional pyramids and bonded to an X-weight cloth backing. As the pyramids wear during use, fresh, sharp mineral is continuously exposed, delivering a consistent cut rate and a predictable fine finish throughout the life of the belt. At 274 inches long and 6 inches wide, this belt is sized for large-format belt grinding and finishing equipment.

This belt is intended for robotic and automated finishing lines as well as manual operations requiring repeatable surface quality. Typical applications include intermediate finishing and fine polishing of metal parts prior to electroplating or buffing. The flexible cloth backing conforms to contoured workpiece surfaces, making it suitable for both flat and curved geometry. Industrial fabricators, metal finishers, and precision manufacturing shops are the primary users of this product.

Key Features

• Microreplication technology forms aluminum oxide into self-sharpening pyramidal structures for consistent cut throughout belt life
• Runs cooler than conventional abrasives, reducing heat-related workpiece distortion
• X-weight cloth backing provides flexibility for finishing over contoured surfaces
• Three-dimensional abrasive design delivers uniform finishes in robotic and automated applications
• Produces finer surface finishes than conventionally electrostatically coated abrasive belts
• Suited for intermediate finishing and fine polishing prior to plating or buffing

Compatibility

Designed for use on large-format belt finishing and grinding machines that accept a 274-inch by 6-inch abrasive belt; verify machine belt path and tension specifications before installation.

Installation Notes

Installation should be performed by qualified personnel familiar with abrasive belt equipment. Power down and lock out the machine before changing belts. Confirm correct belt tracking and tension per the equipment manufacturer guidelines before resuming operation. Inspect the belt for damage or improper seating before each use.

Technical Specifications

• Belt Length: 274 inches
• Belt Width: 6 inches
• Abrasive Mineral: Aluminum Oxide
• Backing Material: X-Weight Cloth
• Color: Gray
• Weight: 2.42 pounds
• UOM: Each
• Minimum Order Quantity: 20
• UPC: 00051125103992

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010361407
