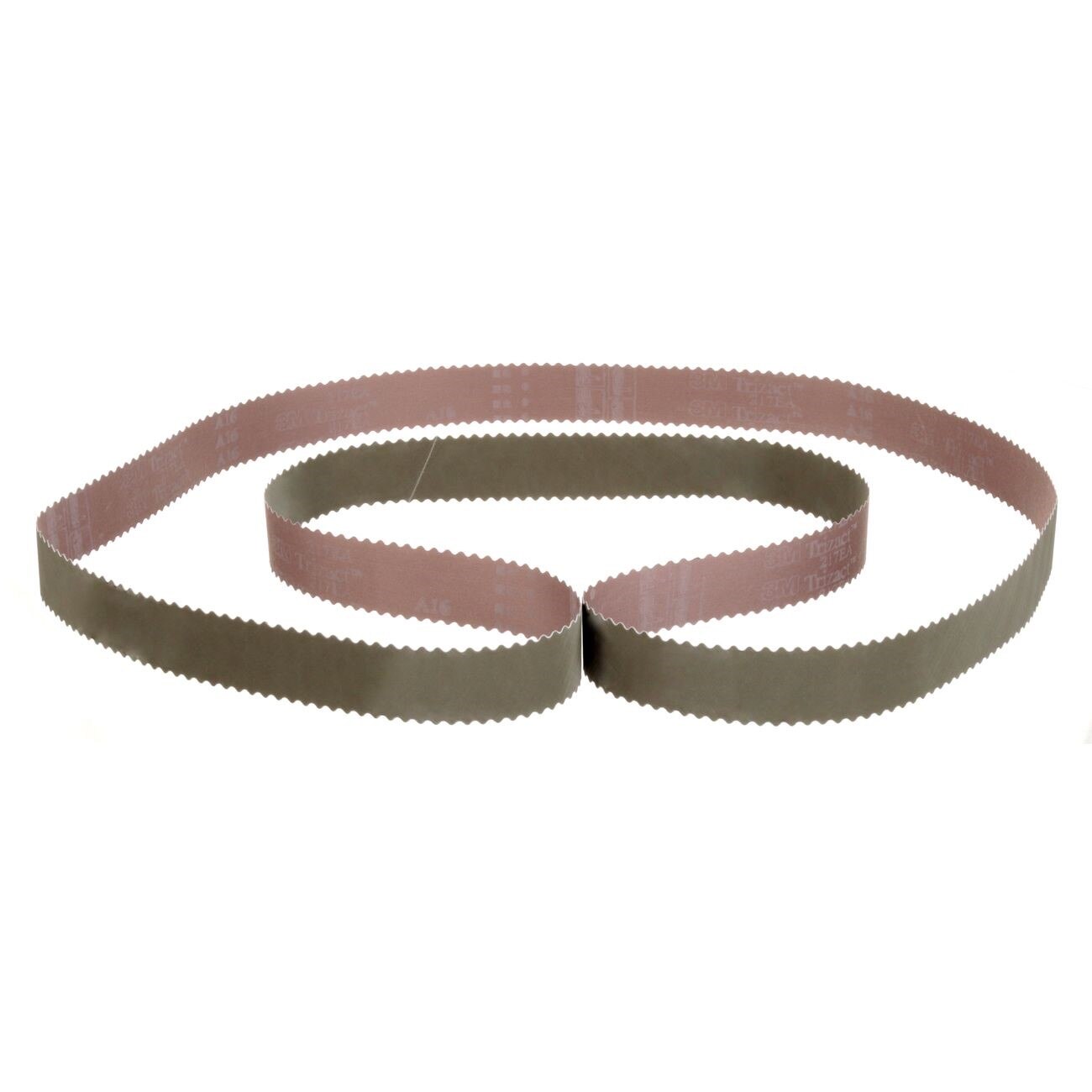

3M 7010361275 Trizact 217EA Abrasive Belt 148x2.25 in

Product Description

The 3M 7010361275 is a Trizact 217EA coated abrasive belt designed for intermediate finishing and fine polishing operations on metal and other surfaces. It uses microreplicated aluminum oxide mineral formed into tiny pyramids on a JE-weight rayon cloth backing. As the pyramids wear during use, fresh, sharp abrasive is continually exposed, producing a consistent cut rate and predictable fine finish throughout the full belt life. A built-in grinding aid helps reduce heat buildup, minimizing the risk of heat-related warping or discoloration on workpieces. This belt is installed and operated by metalworking professionals, fabricators, and finishing technicians.

This belt is suited for intermediate finishing and fine polishing prior to plating or buffing on metal components. It performs well under light pressure conditions, allowing the abrasive structure to break down gradually and maintain a consistent cut. The flexible JE-weight rayon backing conforms to contoured and complex surfaces, making it effective for both flat and shaped workpieces. Its consistent performance profile also makes it a reliable choice for automated and robotic finishing applications where repeatable results are required.

Key Features

• Microreplicated aluminum oxide pyramids continuously expose fresh mineral as they wear for consistent cut throughout belt life
• JE-weight rayon cloth backing flexes over contoured surfaces for uniform contact and finish
• Grinding aid reduces heat buildup to help prevent workpiece warping and discoloration
• Produces finer finishes than conventional coated abrasive belts
• Well-suited for robotic and automated finishing applications requiring consistent, repeatable results
• Designed for light pressure use in intermediate finishing and pre-plate or pre-buff polishing

Compatibility

Designed for use on belt finishing machines that accept 148-inch length by 2.25-inch width abrasive belts; suitable for metal finishing operations including pre-plate and pre-buff polishing on ferrous and non-ferrous workpieces.

Installation Notes

Belt installation should be performed by a qualified finishing technician following the machine manufacturer's guidelines for belt tensioning and tracking. Ensure the finishing machine is fully de-energized and locked out before mounting or removing the belt. Confirm belt travel direction matches the arrow marked on the belt backing before starting the machine. Operate at recommended contact pressures for microreplicated abrasives to avoid premature pyramid collapse and shortened belt life.

Technical Specifications

• Belt Length: 148 inches
• Belt Width: 2.25 inches
• Abrasive Mineral: Aluminum Oxide
• Abrasive Type: Microreplicated (Trizact)
• Backing Material: JE-weight Rayon Cloth
• Application: Intermediate finishing and fine polishing prior to plating or buffing
• Weight: 0.37 pounds
• Unit of Measure: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010361275
