3M 7010361246 Trizact 237AA Abrasive Belt 60x25 Inch

Product Description

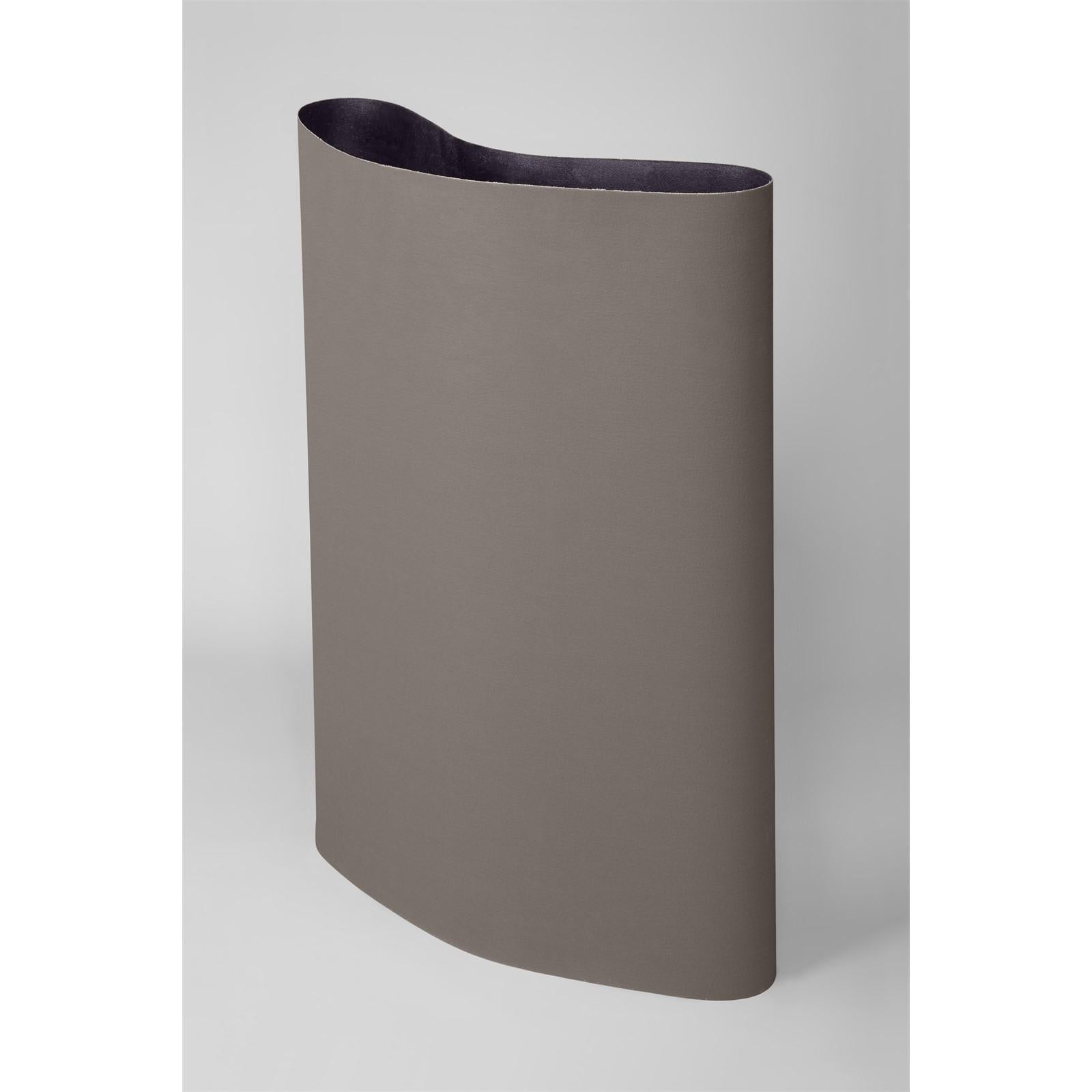

The 3M 7010361246 is a Trizact 237AA coated abrasive belt designed for intermediate finishing and fine polishing in industrial and trade applications. It uses 3M microreplication technology in which micron-graded aluminum oxide particles are formed into three-dimensional pyramids and bonded to an X-weight cloth backing. As the pyramids wear during use, fresh abrasive mineral is continuously exposed, delivering a consistent cut rate and a predictable fine finish from start to finish. The belt measures 60 inches in length and 25 inches in width and weighs 2.79 pounds. It is suited for robotic finishing lines as well as manual grinding operations.

This belt is used in metal fabrication, surface preparation, and precision finishing environments where consistent surface finish quality is required prior to plating or buffing. The flexible cloth backing conforms to contours, making it effective on both flat stock and curved workpiece profiles. It is commonly deployed in production grinding cells, wide-belt finishing machines, and robotic abrasive systems in metalworking shops and manufacturing facilities.

Key Features

• Microreplication technology forms aluminum oxide particles into self-sharpening pyramids that run cooler than conventional abrasives
• Fresh mineral continuously exposed as pyramids wear, maintaining consistent cut throughout belt life
• Flexible X-weight cloth backing conforms to contoured surfaces for uniform finish
• Three-dimensional abrasive structure produces consistent finishes in robotic and automated applications
• Produces finer finishes than conventionally electrostatically coated abrasive belts
• Suited for intermediate finishing and fine polishing prior to plating or buffing operations

Compatibility

Designed for use on wide-belt finishing machines and robotic abrasive systems that accept 60-inch by 25-inch abrasive belts. Verify machine belt-size specifications before installation.

Installation Notes

Installation should be performed by qualified personnel familiar with wide-belt and robotic abrasive equipment. Power down and lock out the machine before changing belts, following OSHA lockout/tagout procedures. Confirm belt tracking tension and direction-of-travel arrow alignment before resuming operation. Inspect the belt for tears or edge damage prior to each use.

Technical Specifications

• Abrasive Mineral: Aluminum Oxide
• Backing Material: X-Weight Cloth
• Belt Length: 60 inches
• Belt Width: 25 inches
• Color: Gray
• Weight: 2.79 pounds
• Minimum Order Quantity: 3
• UPC: 00051115276019

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010361246
