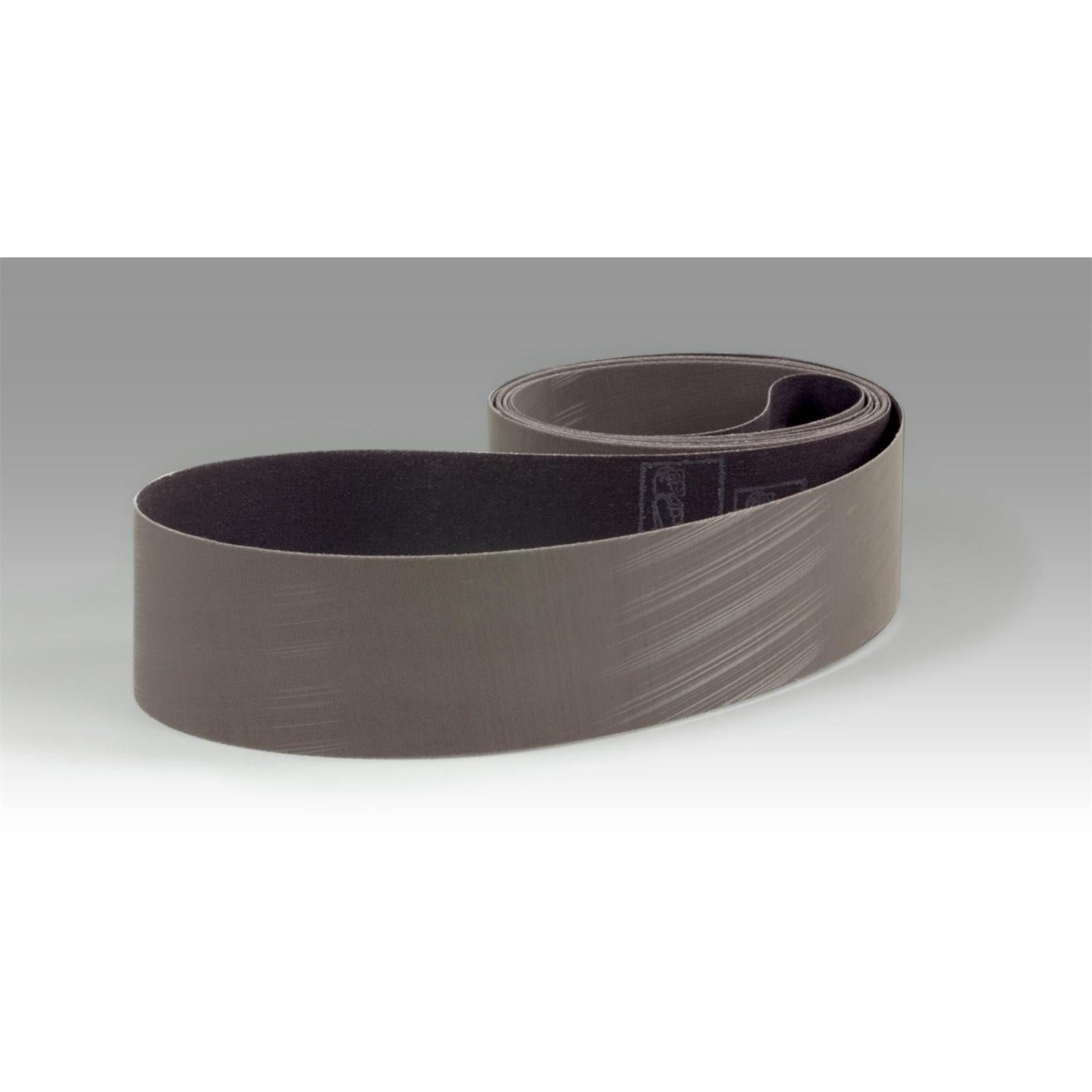

3M 7010361237 Abrasive Belt 354x4 Inch Ao Cloth

Product Description

The 3M 7010361237 is a Trizact 237AA abrasive belt designed for intermediate finishing and fine polishing applications in metalworking and fabrication environments. It uses 3M microreplication technology, where micron-graded aluminum oxide mineral is formed into three-dimensional pyramids and bonded to an X-weight cloth backing. As the pyramid tips wear during use, fresh, sharp mineral is continuously exposed, producing a consistent cut rate and a predictable fine finish across the full life of the belt. Measuring 354 inches in length and 4 inches in width, this belt is suited for wide belt machines and robotic finishing lines.

This belt is used in metalworking, fabrication, and finishing operations where a controlled, repeatable surface finish is required before plating, buffing, or coating. The flexible cloth backing conforms to contoured surfaces, making it effective for both flat stock and irregular workpiece profiles. It performs consistently in automated and robotic applications where finish uniformity across a production run is critical. Typical installers include machine operators, metal finishers, and fabrication shop technicians.

Key Features

• Microreplication technology forms aluminum oxide into self-sharpening pyramid structures for consistent cut throughout belt life
• Fresh mineral continuously exposed as pyramids wear, maintaining cut rate and finish quality
• X-weight cloth backing provides flexibility for consistent finishes over contoured surfaces
• Three-dimensional abrasive design delivers uniform finishes in robotic and automated applications
• Produces finer surface finishes than conventional electrostatically coated abrasive belts
• Suited for intermediate finishing and fine polishing prior to plating or buffing operations

Compatibility

Designed for use on wide belt finishing machines and robotic abrasive systems that accept a 354-inch by 4-inch belt configuration in metalworking and fabrication applications.

Installation Notes

Belt installation and tensioning should be performed by qualified machine operators following the equipment manufacturer's guidelines. Power down and lockout the machine before changing belts. Inspect the platen, contact drum, and tracking components before installing a new belt. Run the belt at reduced speed briefly after installation to confirm proper tracking before returning to full production speed.

Technical Specifications

• Belt Length: 354 inches
• Belt Width: 4 inches
• Abrasive Mineral: Aluminum Oxide
• Backing Material: X-Weight Cloth
• Color: Gray
• Weight: 2.04 pounds
• UOM: Each
• UPC: 00051115274671

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010361237
