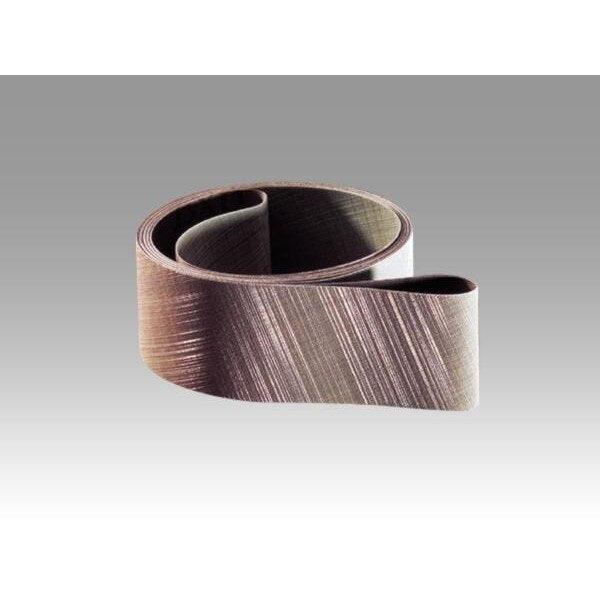

3M 7010361235 Abrasive Belt 18.93x1.5 Inch Ao Rayon

Product Description

The 3M 7010361235 is a Trizact 307EA abrasive belt built on a flexible rayon cloth backing with aluminum oxide abrasive mineral formed into microscopic three-dimensional pyramids using 3M microreplication technology. As the outermost layer of each pyramid wears away, fresh sharp mineral is continuously exposed beneath it. The result is a consistent cut rate and a predictable fine finish throughout the life of the belt. This belt measures 18.93 inches long by 1.5 inches wide and weighs 0.18 pounds. It is well suited to intermediate finishing and fine polishing operations ahead of plating or buffing cycles.

This belt is designed for use in finishing applications where surface consistency is critical, including robotic and automated finishing lines as well as manual operations on contoured or irregular workpieces. The flexible rayon backing conforms to curved and profiled surfaces, making it appropriate for parts that cannot be finished effectively with rigid abrasives. Typical applications include metal finishing prior to decorative plating, fine polishing of components requiring tight surface finish tolerances, and intermediate stock removal where a controlled, repeatable result is required.

Key Features

• Microreplication technology forms aluminum oxide mineral into pyramid structures that self-sharpen as they wear
• Continuous exposure of fresh mineral delivers consistent cut rate and finish quality over belt life
• Runs cooler than conventional abrasives, reducing heat-related workpiece distortion
• Flexible rayon cloth backing conforms to contoured and irregular surfaces
• Three-dimensional abrasive structure supports repeatable finishes in robotic finishing applications
• Produces finer surface finishes than conventional electrostatically coated abrasive belts

Compatibility

Designed as a replacement-style abrasive belt for belt finishing machines and robotic finishing systems that accept 18.93 inch by 1.5 inch belts.

Installation Notes

Belt installation should be performed by trained finishing equipment operators following the equipment manufacturer's guidelines. Power down and lock out the finishing machine before changing belts. Confirm belt tracking direction markings align with the machine drive direction before starting. Inspect the contact wheel or platen for wear or damage each time a belt is changed.

Technical Specifications

• Belt Length: 18.93 inches
• Belt Width: 1.5 inches
• Abrasive Mineral: Aluminum Oxide
• Backing Material: Rayon Cloth
• Abrasive Technology: Microreplication (Trizact)
• Weight: 0.18 pounds
• UPC: 00051115274541

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010361235
