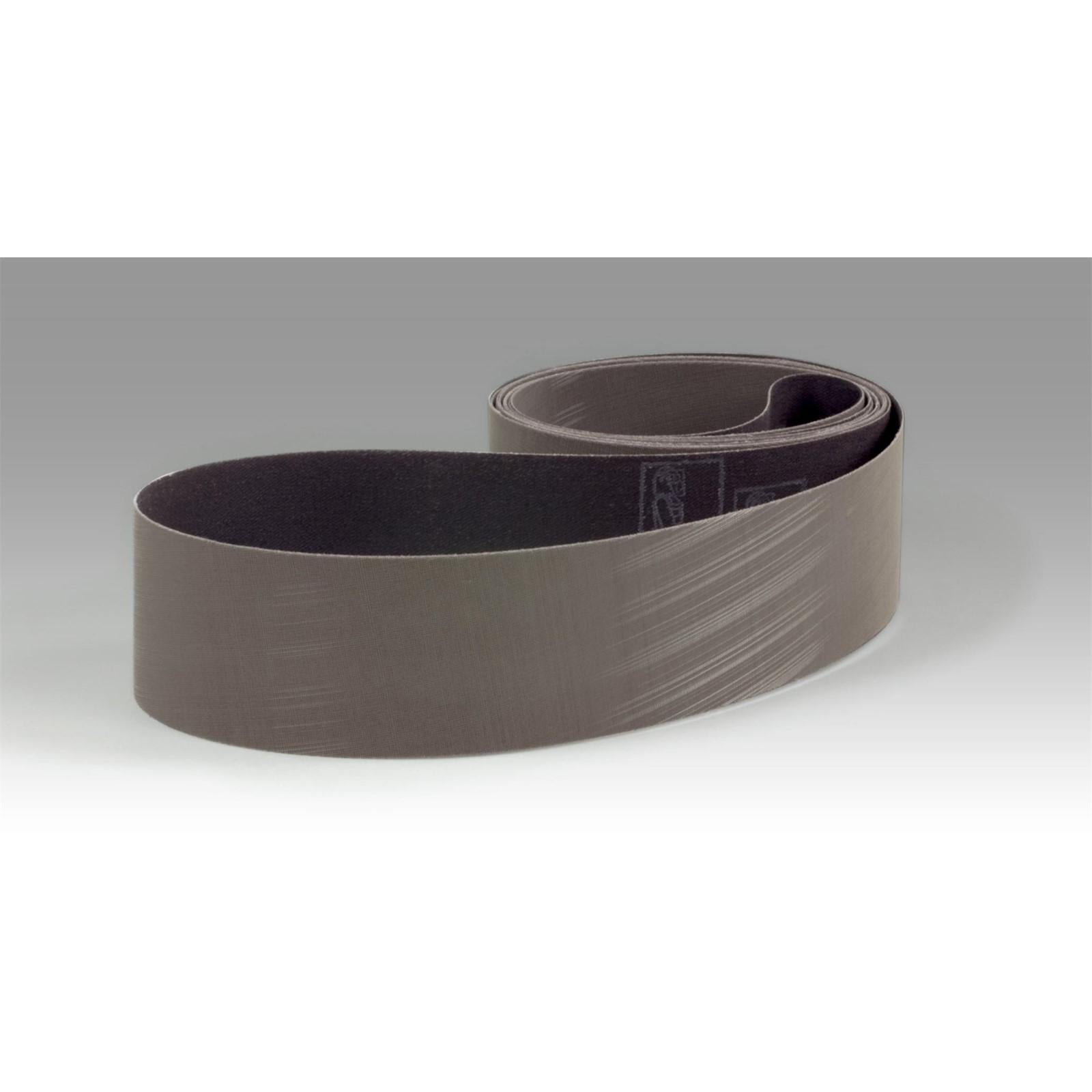

3M 7010361211 Trizact 237AA Abrasive Belt 36x4 Inch Ao

Product Description

The 3M 7010361211 is a Trizact 237AA abrasive belt built on a proprietary microreplication platform. Micron-graded aluminum oxide particles are formed into uniform three-dimensional pyramids and bonded to an X-weight cloth backing. As the pyramids wear down during use, fresh, sharp mineral is continuously exposed at the cutting surface. The result is a consistent cut rate and a predictable, fine surface finish that holds stable across the full life of the belt. At 36 inches long and 4 inches wide, this belt suits wide-contact finishing operations in production and fabrication environments.

This belt is designed for intermediate finishing and fine polishing operations prior to plating or buffing. The flexible cloth backing conforms to contoured workpiece surfaces, making it well suited to both flat stock and irregular profiles. It performs reliably in automated and robotic finishing systems where finish consistency across high belt cycles is critical. Metal fabrication shops and production finishing lines are the primary users of this product.

Key Features

• Microreplication technology forms aluminum oxide into self-sharpening pyramids that expose fresh mineral as they wear
• Runs cooler than conventional abrasives, reducing heat buildup at the workpiece surface
• X-weight cloth backing provides flexibility for finishing over contours and irregular profiles
• Three-dimensional abrasive structure delivers consistent finishes throughout belt life in robotic applications
• Produces finer surface finishes than conventional electrostatically coated abrasive belts
• Suited for intermediate finishing and fine polishing ahead of plating or buffing operations

Compatibility

Designed for use on belt grinding and finishing machines that accept 36-inch by 4-inch abrasive belts. Verify contact wheel diameter, drive speed, and belt tensioning specifications on your equipment before installation.

Installation Notes

Installation should be performed by a trained operator familiar with abrasive belt finishing equipment. Power down and lock out the machine before changing belts, following applicable OSHA lockout/tagout procedures. Confirm belt tracking and tension after installation and before resuming production. Always inspect the belt for tears or delamination before use.

Technical Specifications

• Abrasive Mineral: Aluminum Oxide
• Abrasive Type: Trizact Microreplication
• Backing Material: X-Weight Cloth
• Belt Length: 36 inches
• Belt Width: 4 inches
• Color: Gray
• Weight: 1.84 pounds
• Unit of Measure: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010361211
